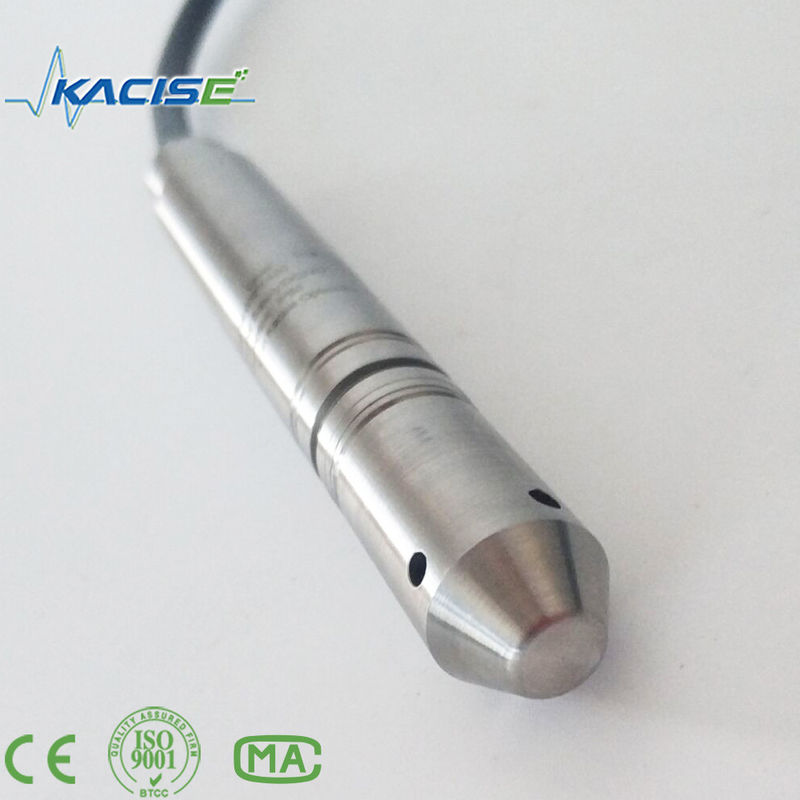

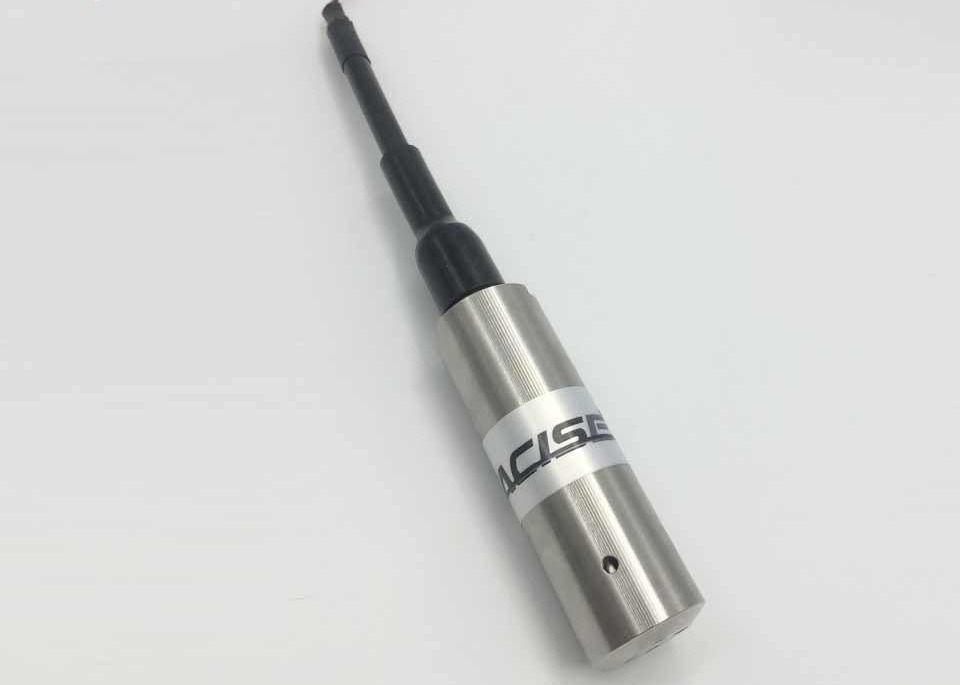

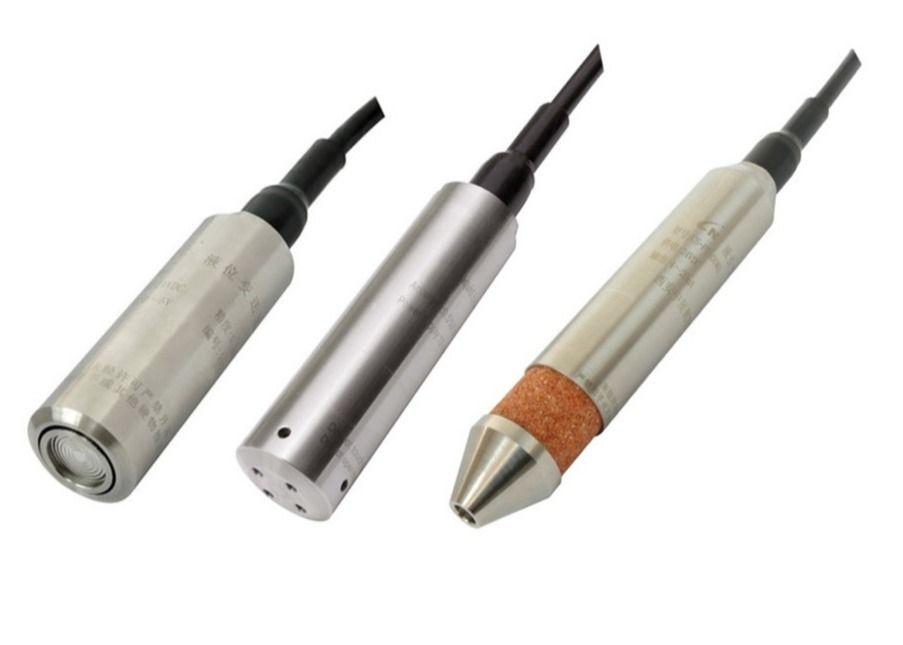

Name: Standard pressure level sensor with 0.25% 0.5% 1.0% accuracy for oil water fuel waste water and sea applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KPS series
Price: 119.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

Standard pressure level sensor with 0.25% 0.5% 1.0% accuracy for oil water fuel waste water and sea applications

standard pressure level sensor

fluid level meter for wastewater

pressure sensor for lightning protection

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KPS series

Request A Quote

Standard pressure level sensor with 0.25% 0.5% 1.0% accuracy for oil water fuel waste water and sea applications

Product Details

Accuracy:

0.25%, 0.5%, 1.0%

Temperature:

Customized Available

Name Transducer:

Level Transducer

Medium:

Oil ,water, Fuel ,waste Water, Sea

Product Name:

Standard Pressure Level Sensor

Port:

Shanghai Or Other

Highlight:

standard pressure level sensor

fluid level meter for wastewater

pressure sensor for lightning protection

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$59.00 - $180.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Product Description

Standard Pressure Level Sensor for Lightning Protection Products

Product Description

High-precision standard pressure level sensor designed for various industrial applications including lightning protection systems.

1. Specifications

Specification	Numerical Value	Remark
Pressure range	0~1...500mH2O	1mH2O≈9.81kPa
Overload pressure	1.5 times rated pressure
Fracture pressure	3 times rated pressure
Accuracy	0.25%F.S, 0.5%F.S, 1.0%F.S
Stability	Typical: 0.1%F.S Max: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40°C~125°C
Compensation temperature	-10°C~70°C
Medium compatibility	All caustic medium compatible with 1Cr18Ni9Ti and 316L
Output signal	4~20mA, 0~5V, 0~10V
Power supplies	10~30Vdc, 80~30Vdc/ac, 11~30Vdc/ac	Vdc/ac
Load resistance	(U-10)/0.02(Ω), more than 100kΩ
Insulation	More than 100MΩ @50V
Electrical Connections	Waterproof fixed cable + Two rectangle circle + Sealing Rings + seal gum + Pure glue (Protection grade: IP68)
Pressure interface	G1/4, input type
Response time	10ms
Electric strength	500Vac@1 second
Certifications	Certificate of explosion-proof, CE
Electromagnetic compatibility	EN50081-1/-2, EN50082-2
Lightning protection	Air conduction resistance 8000V, case, cable conduction
