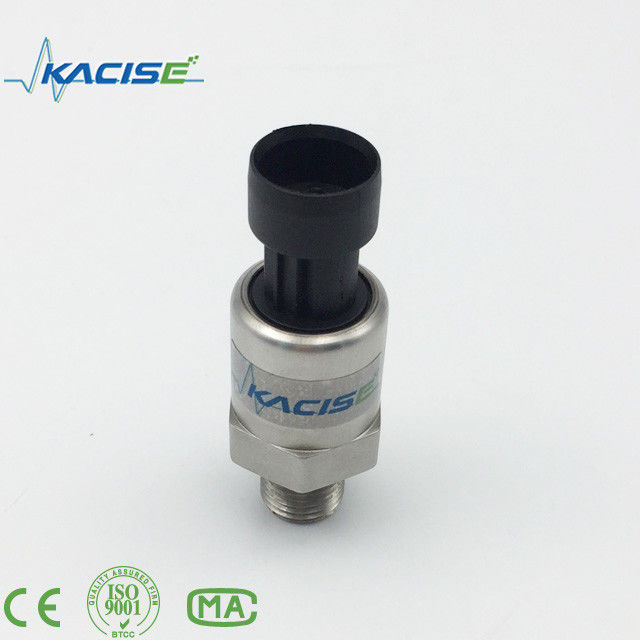

Name: Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXP353
Price: 115.00 USD
Availability: InStock

Home > Products > Fluid Level Meter >

Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control

hydraulic pressure sensor

compressor control sensor

fluid level meter with warranty

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

GXP353

Request A Quote

Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control

Product Details

Stability:

Typical Value 0.5%F.S, Max. Value: 1%F.S

Port:

Shanghai Or Other

Output:

Optional 0/1-5V 0-10V 4-20mA

Usage:

Pressure Transducer

Theory:

Resistance Sensor

Output:

Analog Sensor

Pressure Range:

0-2bar......60bar

Suuplies Power:

10~30Vdc 5Vdc 10~30Vdc

Accuracy:

±0.25%F.S, ±0.5%F.S, ±1.0%F.S

Highlight:

hydraulic pressure sensor

compressor control sensor

fluid level meter with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$50.00 - $180.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Supply Ability

1000 Piece/Pieces per Week negotiable

316 Stainless Steel Capacitive Level Sensor with IP67 Protection and HART Communication for Harsh Environments

Get Best Price

80GHz Radar Level Gauge for High Temperature and Corrosive Tanks with FMCW Technology

Get Best Price

KLD806 80G FM Radar Level Sensor with 80GHz Frequency Flange Mounting and PTFE Antenna for Cement Silos

Get Best Price

26GHz Frequency Radar Level Meter with Non-Contact Measurement and IP67 Protection for Liquid Level Monitoring

Get Best Price

Contact Now

Product Description

GXPS353 Hydraulic control Compressor pressure sensor

1. Parameter

Spec.	Value
Pressure range	0~2bar ......600bar
Load pressure	1.5times nominal value pressure (1.5X)
Rupture pressure	3times nominal value pressure (3X)
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value 0.5%F.S, Max. value: 1%F.S
Operating temperature	-40°C~100°C
Compensation temperature	-10°C~ 80°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance	2 wire system	3 wire system
Output signal	4~20mA	0.5~4.5V
Power supply	10~30Vdc	5Vdc		10~30Vdc
Load pressure	(U-10)/0.02(Ω)	>100kΩ
Insulation	>100MΩ@50V
Electric strength	500V@60 second
Vibration/Impact	10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable	2×10⁶pressure circle @25°C
Electrical connection	Packard, Hirsmann , air plugs, fixed cable, water proof cable
Pressure port	G1/4, NPT1/4, 7/16-20UNF, M20×1.5, G1/2,
Pressure type	G, S		Response time: 10ms
Certificate	Intrinsically safe mode E, RoHS; CE
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

2. Electrical connection mode & structure:

Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control 0

GX-PT1200A current output

GX-PT1200V Voltage output

GX-PT1200-KX Specialized for Frequency conversion water supply system

Hydraulic Pressure Sensor with 0.25%F.S Accuracy 4-20mA Output and Corrosion Resistant for Compressor Control 1

2 wire	3 wire	Cable	Hirsman	Air plug	Packard
Power	Power	Red	1	1	1
Output	Output	Blue/green	2	2	2
	Power ground	Black	3	3	3
Shielded	Shielded	Yellow

3. Feature

Accuracy: ±0.25, ±0.5, ±1%F.S
High stability, high reliability
Import German ceramic core body
Digital calibration
Variety of connector choice
Variety of pressure port
Zero can be arbitrarily displaced
Variable drive can be between 50 to 100%
CE certificate
RoHS compliant

4. Apllications

Compressor
Floor house water supply
Hydraulic control
Air conditioning unit
Automobile engine
Automatic detection system
Hydraulic unit
Refrigeration equipment

1). The sensor is desgined specially for space flight, petroleum, chemical, mining machinery Testing System, micropressure measurement, high-speed railway carriage usage.

2). The customer is spreading all over the world for shipbuilding ,special truck,chemical industry,

3). Help our customer cut the cost obviously.
