Place of Origin:
Shaanxi, China
Brand Name:
Kacise
Certification:
CE
Model Number:
KUFH2000/ KUFP2000
Document:
Introduction

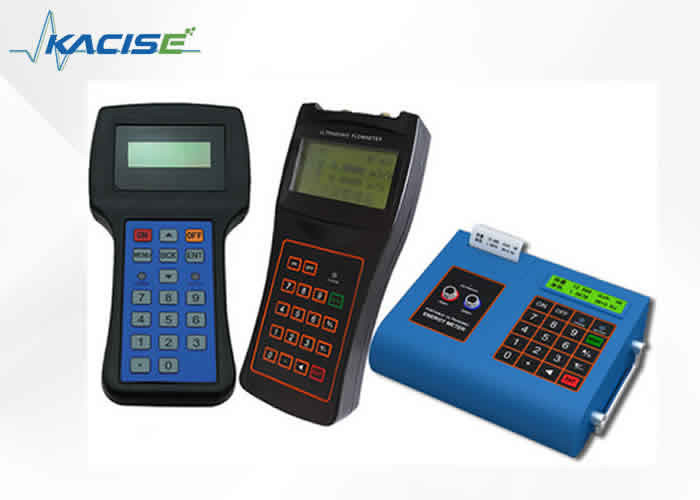

KUFP2000 / KUFH2000 ultrasonic flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a portable measurement system which is both easy to install and use, which is ideal for flow surveys. Built-in SD card and printer can timely or regularly print pre-set measuring results. Temperature and heat can also be measured by connecting clamp on temperature sensor.
The KUFP2000 operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next. Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity.
It can be used for metallic, plastic and rubber tubes.
Features
Specifications
|
Item |
Performance and Parameter |
|
|
Main unit |
Principle |
Transit time measure, 4 bytes of IEEE754 floating point arithmetic |
|
Accuracy |
1 % |
|
|
Display |
Support English, Chinese, Italian and France |
|
|
Signal output |
1 channel 4-20mA current output 1 channel pulse width is adjustable between 6~1000ms, 200ms(default) 1channel relay output |
|
|
Signal input |
3 way 4-20mA input, acquire signals such as temperature, press and liquid level. |
|
|
Achieve to heat measurement by connecting the temperature transducer PT100. |
||
|
Data port |
RS485 serial interface, upgrade the flow meter software by computer, support MODBUS |
|
|
Data Record |
Thermal printer, external SD card(2G of capacity) |
|
|
Pipe Installation Condition |
Pipe Material |
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
|
Pipe Diameter |
15~6000mm |
|
|
Straight Pipe |
Sensor installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump. |
|
|
Measuring Medium |
Type of Liquid |
Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
|
Temperature |
-30°C~160°C |
|
|
Turbidity |
Less than 10000ppm, not so much baubles |
|
|
Flow speed |
0 ~±10m/s |
|
|
Working ambient |
Temperature |
Host: -20~60°C Sensor: -30~160°C |
|
Humidity |
Host: 85% Sensor: IP67 |
|
|
Power supply |
8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation). Could operate 8 hours by connecting 4-20mA signal output. By using 90V - 260V AC adapter, continuous measurement can be realized. |
|

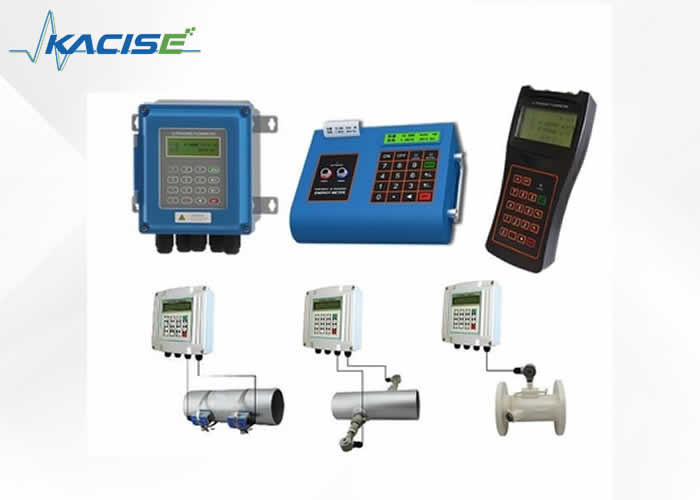

Description of parts
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, pipe size , pipe material, medium( liquid type),
temperature, installation method, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms for the battery powered flowmeter?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for the battery powered flowmeter?
A: Yes, we have the warranty of 12 months.
