| Place of Origin: | China |
| Brand Name: | Kacise |
| Model Number: | KUF2000 |
| Price: | $80.00 - $200.00/pieces |
|---|---|
| Packaging Details: | carton or customers requests available |
| Supply Ability: | 3000 Piece/Pieces per Month negotiable |
| Type: | Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters | Name: | Ecnomical Digital Flange Type Sight Glass Flow Meter |
|---|---|---|---|
| Accuracy: | Up To 1.0% | Temperature: | Customized Available |
| Type: | Ultrasonic Flow Meter | Port: | Shanghai Or Other |
| High Light: | Digital Sight Glass Flow Meter,Flange Type Sight Glass Flow Meter |
||

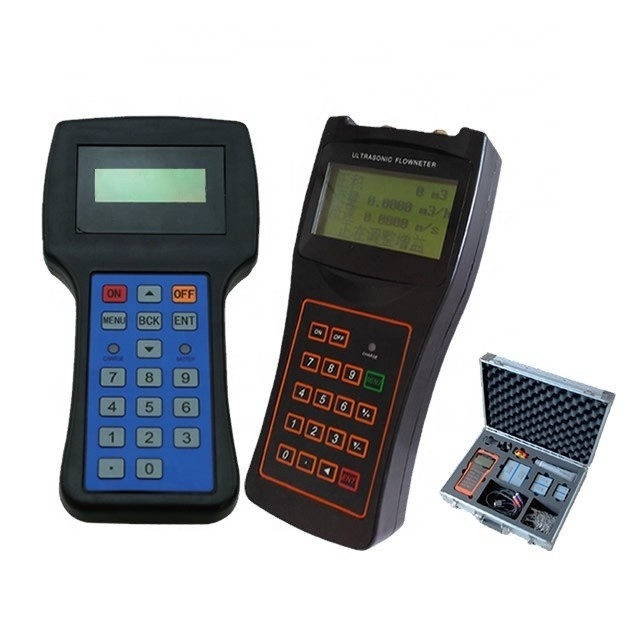

Introduction

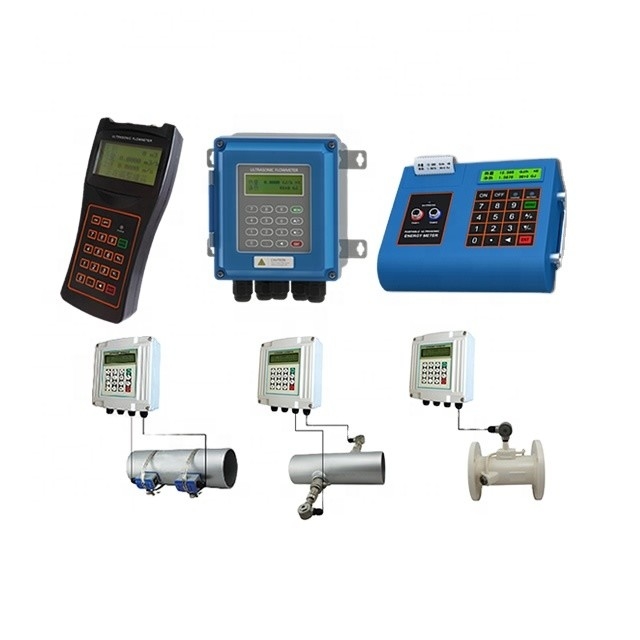

KUF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. It can measure heat if contact temperature sensor.
Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.
Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.
Inline pipe type: DN15-32 pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.
Parameters
|
Items |
Specifications |
|
|
Main unit |
Accuracy |
Better than ±1% |
|
Repeatability |
Better than 0.2% |
|
|
Principle |
Transit-time measuring principle |
|
|
Measurement Period |
500ms |
|
|
Display |
LCD with backlight,display accumulated flow/heat, instantaneous flow/heat, velocity, time etc. |
|
|
|
Output |
Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%. |
|
OCT output: Frequency signal (1~9999HZ) |
||
|
Relay output: over 20 source signal (no signal, reverse flow etc.) |
||
|
RS485 serial port |
||
|
|
Input |
Three analogue input |
|
Three-wire PT100 resistor input (optional) |
||
|
Other functions |
Automatically record the totaliser data of the last 64 days / 64 months / 5 years; The power-on time and corresponding flow rate of the last 64 power on and off events. Allow manual or automatic flow loss compensation The instrument working status of the last 64 days |
|
|
pipe |
material |
Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed |
|
Size |
15-6000mm |
|
|
Straight pipe section |
In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D from the access of the pump. (D stands for pipe diameter) |
|
|
Liquid |
Types |
Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid |
|
Temperature |
Standard: -30°c - 90°c ,High-temperature:-30°c- 160°c |
|
|
Turbidity |
Less than 10000ppm, with a little bubble |
|
|
|
Flow Direction |
Bi-directional measuring, net flow/heat measuring |
|
Environment |
Temperature |
Main Unit: -30°c - 80°c |
|
Transducer: -40°C -110°C, Temperature transducer: select on enquiry |
||
|
Humidity |
Main Unit: 85% RH |
|
|
Transducer: water-immersible, water depth less than 3m |
||
|
Power Supply |
DC8~36V or AC85~264V |
|
|
Protocols |
MODBUS, M-BUS, Fuji extended protocol and other factory protocol |
|
Optional Flow Meter Main Unit
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, pipe size , pipe material, medium( liquid type),
temperature, installation method, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty for the flow meter water 50mm?
A: Yes, we have the warranty of 12 months.
products range: Water ultrasonic flow meter price, ultrasonic flow meter, diesel flow meter, water flow meter, liquid flow meter, vegetableoil flow meter
