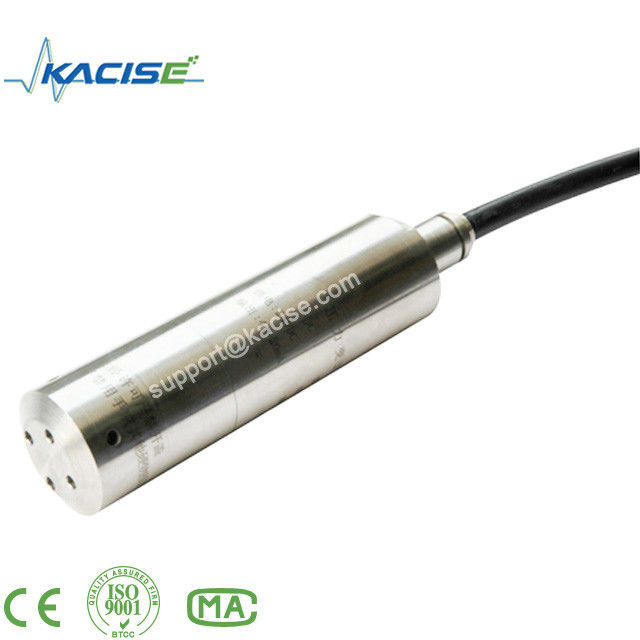

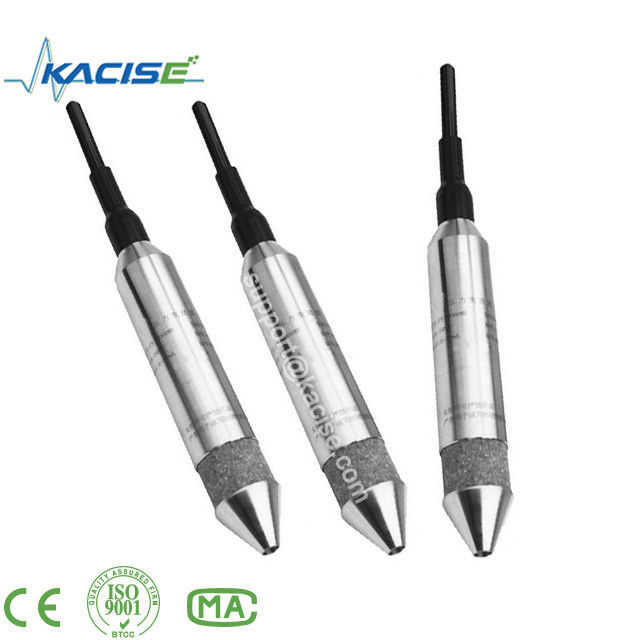

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage

GXPS sewage level transducer

liquid level transducer with warranty

water level sensor for sewage

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

GXPS400 series

Contact Us
Request A Quote
Product Details
Product Name:
Level Transducer
Pressure Range:
0~1.........1400inchHg
Medium:
Water, Sewage, Oil, Fuel
Overload Pressure:
1.5times Rated Pressure
Secondary Containmentnt:
3 Times Rated Pressure
Accuracy:
±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Compensation Temperature:
-10°C~70°C
Operating Temperature:
-40°C~85°C Or -40 °C ~125 °C
Stability:
Typical Value: 0.1%F.S Max.: 0.2% F.S/year
Port:
Shanghai Or Other
Highlight:

GXPS sewage level transducer

,

liquid level transducer with warranty

,

water level sensor for sewage

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$30.00 - $60.00/pieces
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

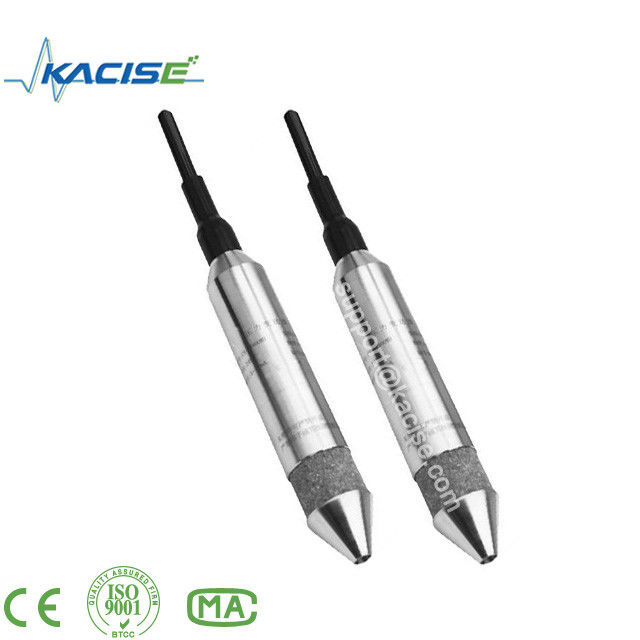

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage 0

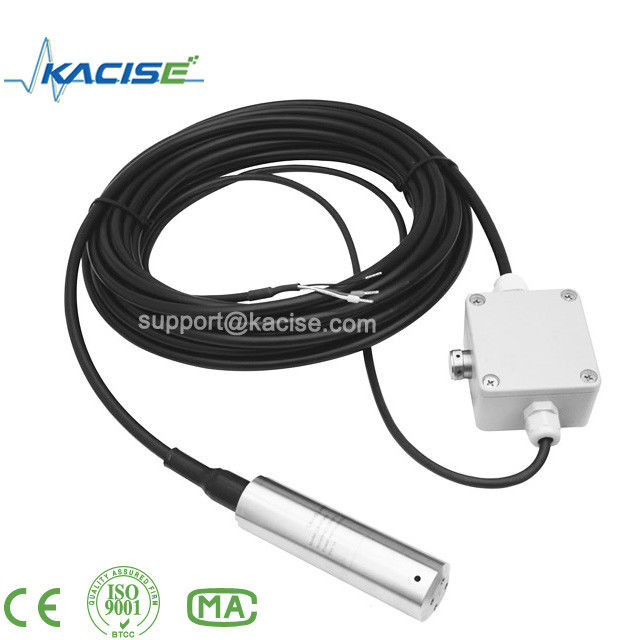

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage 1

Introduction

GXPS400 series level transducer r is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment.

Customized solutions for various fluids can be supplied.

Parameter
Spec. Numerical value
Pressure range

0~1……500mH2O

9.8KPa…4900KPa

0.09bar…49bar

0.09atm…48atm

1.4psi… 711psi

2.8inchHg…1400inchHg

Overload pressure 1.5 times nominal value
Rupture pressure 3 times nominal value
Accuracy ±0.25%F.S,±0.5%F.S
Stability Typical value 0.25%F.S, Max. value:0.4%F.S
Operating temperature -40°C~85°C (or -40°C~125°C)
Compensation temperature -10°C~70°C
Medium All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 line 3 line 4 line
Output signal 4~20mA 0~20mA 0~5V 0.5~4.5V 0~20mA
0~10Vdc 1~5V 0.5~3V 0~5/10Vdc
Power supply 10~30Vdc 11~30Vdc 8~24Vdc 5V Ratio 8/11~30Vdc
Load resistance (U-10)/0.02(Ω) Current:(U-12)/0.02(Ω); voltage :>20KΩ
Insulation >100MΩ @50V
Electrical Connections 500V@1 second
Electrical connection waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Electromagnetic compatibility electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Response time 10ms
Certificate Intrinsically safe mode E, explosion proof type D, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
Production Flow

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage 2

Packaging & Shipping

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage 3

Cases

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage 4

Certificates

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage 5

Company Information

GXPS High Precision Corrosion Resistant Level Transducer with Wide Pressure Range for Water and Sewage 6

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Discounts are offered based on order quantities.
  • Protection of your sales area, ideas of design and all your private information.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
FAQ

1. Q: What information need to be provided to choose the suitable model?

A: Please provide us: application field, pipe size, pipe material, medium( liquid type),

temperature, installation method, so we can choose model and quote for you quickly.

2.Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

3.Q: How about the quality control?

A: All products will be tested for 3 times before packed.

4.Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

5.Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our GXPS400 level transducer work perfectly at your end.
