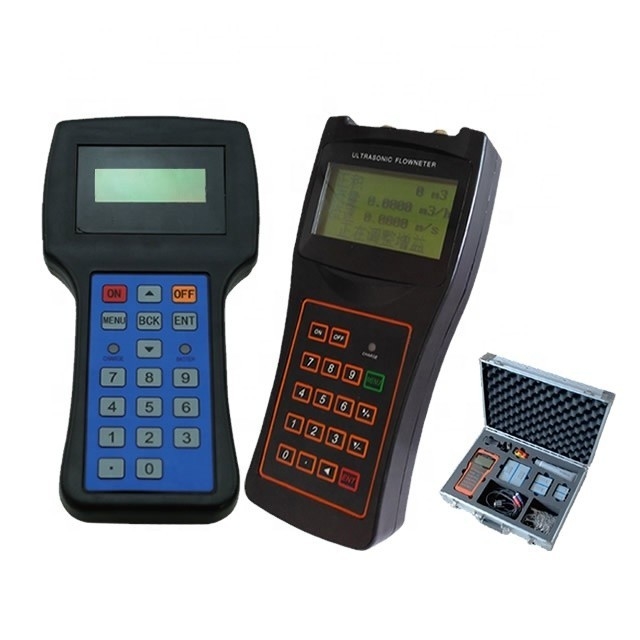

Economical Digital Plastic Ultrasonic Flow Meter For Manifold

conservancy, metallurgy, chemical industry, machinery, energy indurstry.
both sensors and the host can be installed at the pipe. also can be used as calorimeter

GXUF-2000 series flow meter usually is used to long-term measure at field. It's easy to use and easy to repairing without cut off the piple,without turn off the fluid.Both the sensor and the host can be installed

on the pipes.  The protect grade is Ip68, can be used as calorimeter, if the temperature sensor added

Feature of ecnomical digital plastic flow meter for manifold

High flow accuracy
Up to 1 %
Suitable diameter
Choose different types of sensors, you can realize the diameters of DN15~DN6000mm tube measurement channel flow.
High reliability
Use low voltage.
Anti-interference is high
Use double-balanced signal to launch and receive circuit. It can resist inverter, television tower, high tension cable, etc.
Powerful function
1 channel is 4-20mA, as a flow sensor or quantity of heat sensor; 2 channel is OCT output, as a switch for flow/quantity of heat;3 channel is 4-20mA output, as a collector for data; 2 channel of 3 wires is PT100 signal output of resistors, as a watch for quantity of heat.
The transmittal is far, and it contact net quickly.
RS485 support connect wireless net, contact the GPRS485 can realize wireless transmittal.
Measure the quantity of heat
Contact temperature sensor, can measure the quantity of heat.

Ultrasonic flow thermal module/RTU be used in sundry liquids , support measure  online long-term.Host install by lead rail, sensor be installed on outside of pipe wall. Host contact the sensor use the cable for ultrasonic sensor, can realize measure flow, if contact the temperature sensor, can realize quantity measure.It can be used in flow and quantity of heat, like, system integration, water resource, practice thrift energy, drainage, heating power

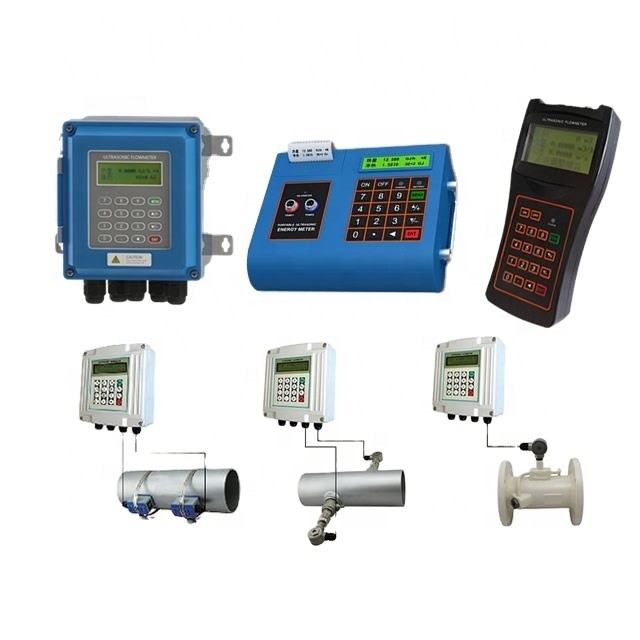

Type	Picture	Specification	Model	DN	Temp.	Size
Standard           clamp		Small	SS-2	DN15~DN100	-30~90°C	45X25X32mm
		Middle	SM-1	DN50~DN700	-30~90°C	64X39X44mm
		Large	SL-1	DN300~DN6000	-30~90°C	97X54X53mm
High temp. clamp		Small	HS-2-HT	DN15~DN100	-30~160°C	45X25X32mm
		Middle	HM-1-HT	DN50~DN700	-30~160°C	64X39X44mm
		Large	HL-1-HT	DN300~DN6000	-30~160°C	97X54X53mm
Plug in type		Small	BC-1	DN80~DN6000	-30~160°C	190X80X55mm
		Large	BC-2	DN80~DN6000	-30~160°C	335X80X55mm
Pipe type		π type	P3	DN15~DN25	-30~160°C	304 stainless steel threaded connection
		Pipe type-A	B1	DN32/DN40	-30~160°C	Carbon steel material threaded connection
		Pipe type-B	B2	DN50~DN6000	-30~160°C	Carbon steel material flange connection

Optional temp sensor of ecnomical digital plastic flow meter for manifold

Picture	Description	Type No.	Piperange	Temp	Fix con	Accuracy
	3-wire PT100 clamp on type	TPT1	>DN50	40~160°C	easy	100°C±0.8°C<0.1°C
	3-wire PT100 Plug in type	PPT1	>DN50	40~160°C	shut flow down
	3-wire PT100 without pressure loss plug in type	LPT 3	>DN50	40~160°C	easy
	mini 3-wire PT100 plug in type	MPT 3	>DN50	40~160°C	shut flow down

 Description of parts  of  ecnomical digital plastic flow meter for manifold

  Parameters of ecnomical digital plastic flow meter for manifold

Ordring info

Application field of ecnomical digital plastic flow meter for manifold

           Water supply                   Heat supply               Intelligent building         Metallurgy               Peroleum         Powersupply

Packaging & Shipping
