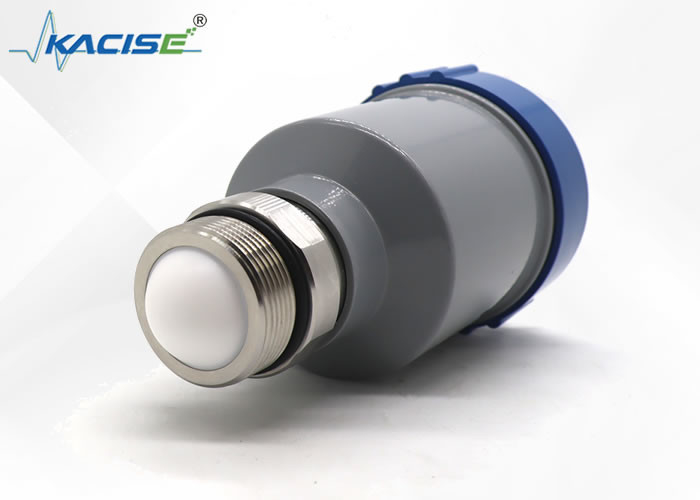

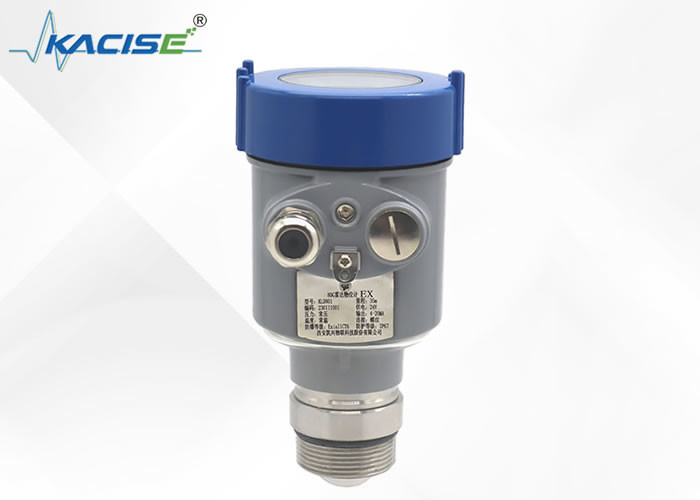

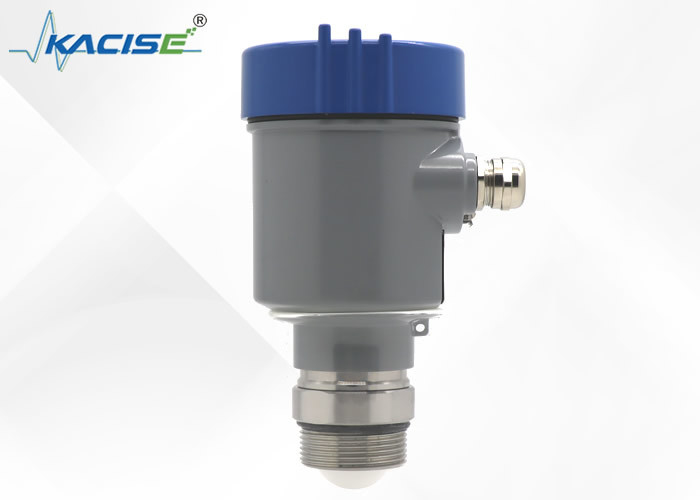

KLD801 80G FMCW 100m Lens Antenna Non Contact Radar Liquid Level Transmitter With Small Blind Spot

KLD801 80G FMCW 100m Lens Antenna Non Contact Radar Liquid Level Transmitter With Small Blind Spot

Introduction

The KLD801 80G FMCW 100m Lens Antenna Non-Contact Radar Liquid Level Transmitter is a top-notch product. It features a lens antenna and a small blind spot, ensuring accurate measurement up to 100m. With 80G FMCW technology, it offers reliable and precise non-contact detection, making it suitable for various liquid level monitoring applications.

Feature

• G1½A / 1½NPT thread installation
• Suitable for non-corrosive liquid measurement
• 80GHz high frequency radar,narrow beam angle, the energy is more concentrated, the directionality is better, and the echo intensity is higher.
• The antenna is small in size and easy to install;
• Non-contact radar, no wear, no pollution.

Product Dimension

Unit in mm:

Installation Method

Thread installation

Selection of Radar Level Transmitter
According to different use environments, the selection requirements must consider the following conditions:
(1) The dielectric constant of the measured medium. The conductivity and dielectric constant of the measured medium should not be less than 1.5.
(2) Use environment. The industrial environment is complex, and the level measurement includes storage tanks, process tanks, mixing tanks, etc., liquid, slurry and solid granular materials.
(3) Measured distance.
(4) How to receive the signal?

To sum up, the parameters that need to be provided are: medium, pressure, temperature, density and dielectric constant, range, power supply, output signal and connection method.
As long as the model is selected reasonably and installed correctly, the radar level transmitter will definitely be able to exert its excellent performance in production. With the development of science and technology and the continuous improvement of radar instrument technology, radar level transmitters will be more widely used and promote the continuous development of industrialization. .
