Place of Origin: | China |
Brand Name: | Kacise |
Certification: | CE |
Model Number: | KLD806 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | carton |
Delivery Time: | 3-8 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000pcs per month |
Medium: | Solid, Storage Container, Process Container, Strong Dust Application | Measuring Range: | 0.1m~10/20/30/60/100m |
---|---|---|---|
Process Connection: | Flange ≥ DN100 | Process Temperature: | -40~110℃ |
Process Pressure: | -0.1~0.3MPa | Antenna Size: | 76mm Lens Antenna (purge Optional) |
Antenna Material: | PTFE | Accuracy: | ±5mm |
Protection Class: | IP67 | Center Frequency: | 80GHz |
Launch Angle: | 3° | Power Supply: | DC24V / AC220V |
Casing: | Aluminum/stainless Steel | Signal Output: | 4...20mA/HART Protocol/RS485 |
High Light: | IP67 Radar Level Transmitter,Radar Level Transmitter 80GHz,Strong Dust Radar Level Sensor |

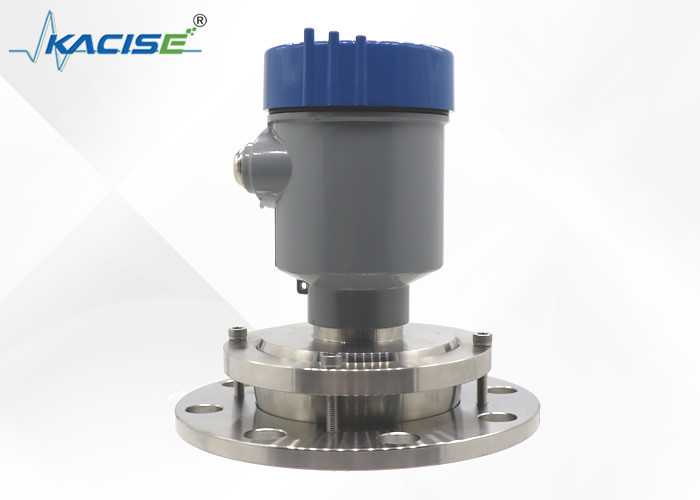

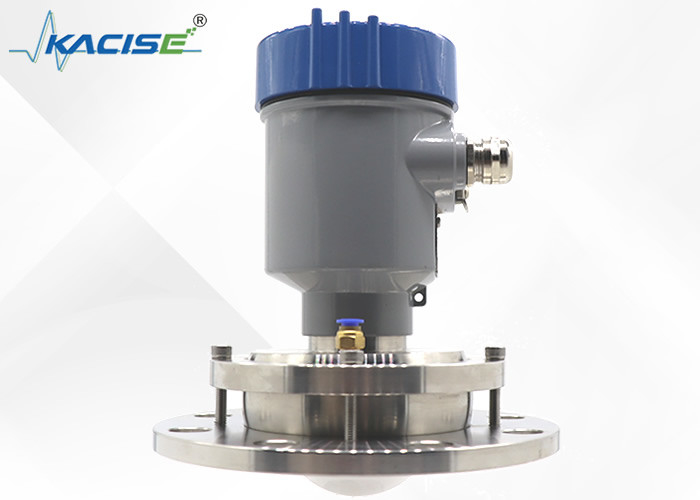

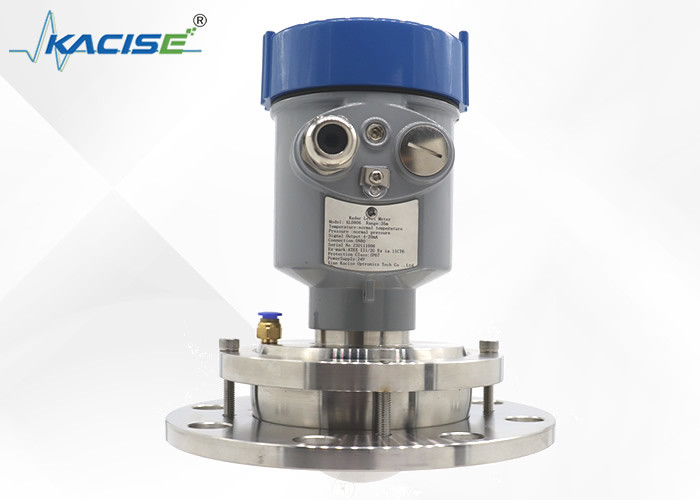

KLD806 80GHz Radar Level Transmitter with Air Purge for Solid Medium and Strong Dust Application
Introduction
The 80GHz FM level radar transmitter is especially suitable for industrial and mining environments with high temperature and high pressure or high dust and agitation spaces. It meets many measurement needs that require a large range and high precision.
KLD800 series level transmitter have the ability to penetrate non-polar substances. In the industrial environment with strong adhesion and strong dust, it has ideal measurement stability and environmental anti-interference ability.
This product is also due to its extremely small antenna beam angle and strong adaptive automatic gain function. The 80GHZ frequency modulation continuous wave radar uses FPGA chip hardware to realize fast Fourier transform calculation, making the measurement accuracy reach 0.217mm within 50 meters. KLD800 FM radar level transmitter adopts PTFE lens antenna full-seal potting design, and solves the structural treatment of antenna near-field radiation suppression, which makes it have good directivity performance.
Feature
1. Easy maintenance and simple operation: the radar level gauge has fault alarm and self-diagnosis functions. Analyze the fault according to the error code prompted by the operation display module, determine the fault in time and eliminate it, making maintenance and calibration more convenient and accurate, and ensuring the normal operation of the instrument.
2. It has a wide range of applications and can measure almost all media: from the shape of the tank body, the radar level gauge can measure the liquid level of spherical tanks, horizontal tanks, cylindrical tanks, cylindrical cone tanks, etc.; In terms of body functions, it can measure the liquid level in storage tanks, buffer tanks, microwave tubes, and bypass pipes. From the perspective of the measured medium, it can measure liquids, particles, slurry, etc.
3. Continuous and accurate measurement: The probe of the radar level gauge has no contact with the surface of the medium, which belongs to non-contact measurement, and can accurately and quickly measure different media. The probe is hardly affected by temperature, pressure, gas, etc.
4. Accurate, safe and energy-saving: The chemical and mechanical properties of the materials used in radar level gauges are quite stable, and the materials can be recycled, which is extremely environmentally friendly.
5. No maintenance and high reliability: Microwave is almost free from interference and does not directly contact with the measurement medium, so it can be used in almost all kinds of occasions, such as vacuum measurement, liquid level measurement or material level measurement, etc. Due to the use of advanced materials, it is durable to extremely complex chemical and physical conditions, and it can provide accurate, reliable, long-term stable analog or digital level signals.
Medium | solid, storage container, process container, strong dust application |
Measuring range | 0.3m~10/20/30/60/100m |
Process connection | flange ≥ DN100 |
Process temperature | -40~110℃ |
Process pressure | -0.1~0.3MPa |
Antenna size | 76mm lens antenna (air purge optional) |
Antenna material | PTFE |
Accuracy | ±5mm |
Protection class | IP67 |
Center frequency | 80GHz |
Launch angle | 3° |
Power supply | two-wire /DC24V |
four-wire /DC12~24V | |
four-wire /AC220V | |
Casing | aluminum/stainless steel |
Signal output | two-wire: 4...20mA/HART protocol |
four-wire: 4...20mA/ RS485 Modbus |
Product Dimension
Unit in mm:
Installation Method
Flange installation
When using flange installation, the minimum distance between the instrument and the tank
wall should be 200mm.
① datum plane
② vessel center or axis of symmetry
Hoisting Installation
