| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KsINS-66 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Angular Rate Measurement Range (°/s): | 400 | Acceleration Measurement Range (g): | 50 |
|---|---|---|---|
| Working/storage Temperature(℃): | -40～+75 | ||
| High Light: | Small MEMS Inertial Measurement Unit,Three Gyroscopes Inertial Measurement Unit |
||
product description:

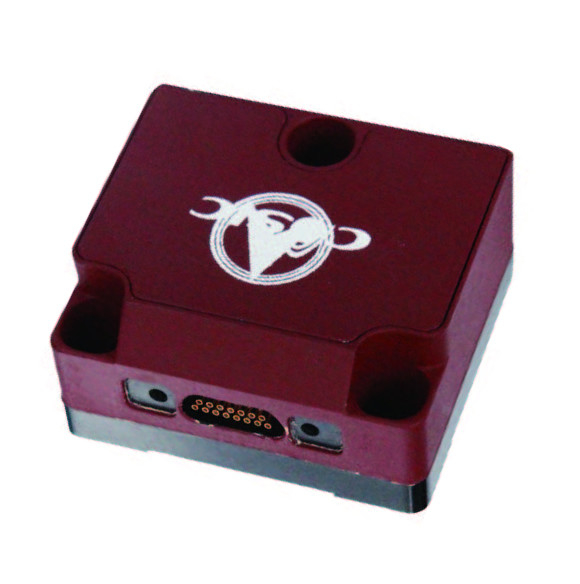

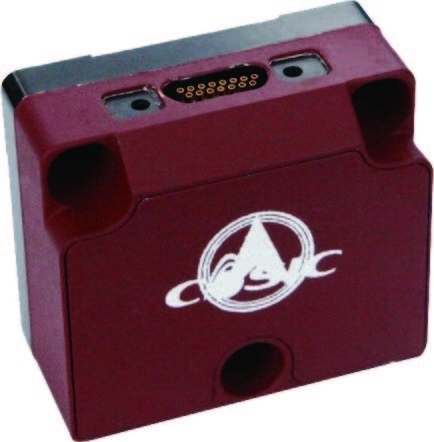

KsINS-66 is a small, high-performance MEMS inertial measurement unit, which consists of 3 MEMS gyroscopes, 3 MEMS accelerometers, and information processing circuits. Its motion information measurement function is suitable for various types of carrier navigation, guidance, control and other applications.
The basic functions are as follows:
● With self-test function, it automatically enters the working mode after the self-test is completed.
● In working mode, sensor information such as gyroscopes and accelerometers can be collected to compensate the three-axis acceleration and angular velocity of the output carrier in real time.
● With service mode, it has functions such as uploading and downloading programs and parameters, changing configurations, etc.
Features:
● Small size, light weight, low power consumption, easy for mass production
● Serialized products, optional gyroscope and accelerometer
Application fields and application modes:
As an independent inertial measurement unit, navigation system and attitude and orbit control system component, it is used for UAVs, unmanned vehicles, robots, and guided missiles.
medicine, microsatellites and other fields.
Performance indicators :
| High precision | Medium precision | |
| Angular rate measurement range (°/s) | ±400 | ±400 |
| Gyro bias stability (° /h, 1σ) | 1 | 8 |
| Gyro bias repeatability (° /h, 1σ) | 1 | 5 |
| Gyro scale factor nonlinearity (ppm) | 300 | 500 |
| Acceleration measurement range (g) | ±50 | |
| Accelerometer bias stability (μg, 1σ) | 300 | |
| Accelerometer bias repeatability (μg, 1σ) | 300 | |
| Accelerometer scale factor non-linearity (ppm) | 1000 | |
Application environment :
| Working/storage temperature(℃) | -40～+75 |
| MTBF(h) | 2800 |
| Mechanical properties | Vibration 6.06g, shock 80g/1ms |
Physical properties:
| Dimensions | 38.6mm×44.8mm×21.5mm |
| Installation dimensions | 35.9mm×29.3mm |
| weight | ≤ 70g |
External Interface:
| powered by | +5V |
| Power consumption |
Typical value 1.7W@ 5V, 25° C Maximum 2.5W |
|
Input/output interface |
RS422A |
| Data output frequency | 1000Hz |
