Navigation Grade Fiber Optic Gyroscope Used In Inertial Navigation Systems，Dimensions 50×50×36 (mm)

Inertial Navigation Systems Fiber Optic Gyroscope

Navigation Grade Fiber Optic Gyroscope

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

K1FOG20

Request A Quote

Navigation Grade Fiber Optic Gyroscope Used In Inertial Navigation Systems，Dimensions 50×50×36 (mm)

Product Details

Dimensions:

50×50×36(mm)

Start Time (s):

Bias Drift (°) / H (10s Smooth, Fix Temperature):

≤0.1

Highlight:

Inertial Navigation Systems Fiber Optic Gyroscope

Navigation Grade Fiber Optic Gyroscope

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

Single Axis Fiber Optic Electronic Gyroscope Sensor Shocking Resistance

Get Best Price

Video

Well Logging Dynamically Tuned Gyroscope For High Temperature Environment

Get Best Price

Small Size Mems Gyroscope Sensor Angel Measuring Instruments Dip Performance

Get Best Price

200Hz Single Axis Gyro Sensor , Gyroscope Sensor Module High Bias Stability

Get Best Price

86--17719566736

Contact Now

Product Description

K1FOG20 series Gyro

Name: Navigation Grade Fiber Optic Gyroscope Used In Inertial Navigation Systems，Dimensions 50×50×36 (mm)
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: K1FOG20
Price: 431.00 USD
Availability: InStock

This product is an inertial angular rate sensor that operates based on the optical Sagnac effect, designed to measure the rotational angular velocity of a carrier along its sensitive axis. It uses a digital closed-loop detection circuit to capture the optical path difference in the clockwise light caused by external angular velocity. The system modulates and demodulates the voltage signal from the optical path, enabling real-time feedback and control in order to detect the angular velocity signal in real-time.

Functionality: The product consists of two components: an optical angular velocity sensing unit and a signal detection system, providing single-axis angular increment data along with internal temperature information.

Application range: This product is primarily used in photoelectric cranes, hoists, flying platforms, inertial navigation systems, inertial measurement systems, optical or photographic instruments, platform stabilization devices, and other inertial measurement instruments.

Navigation Grade Fiber Optic Gyroscope Used In Inertial Navigation Systems，Dimensions 50×50×36 (mm) 0

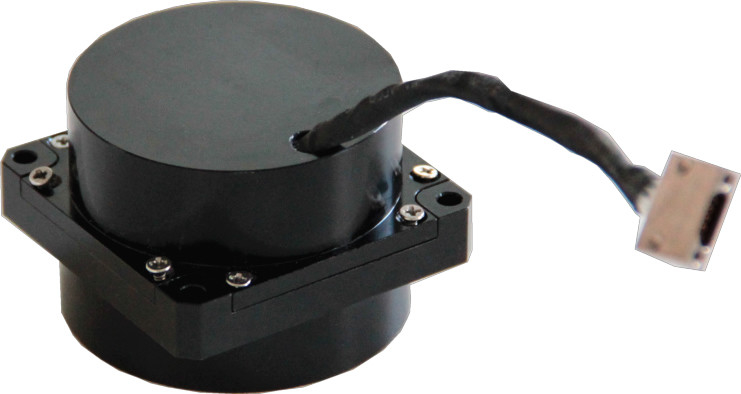

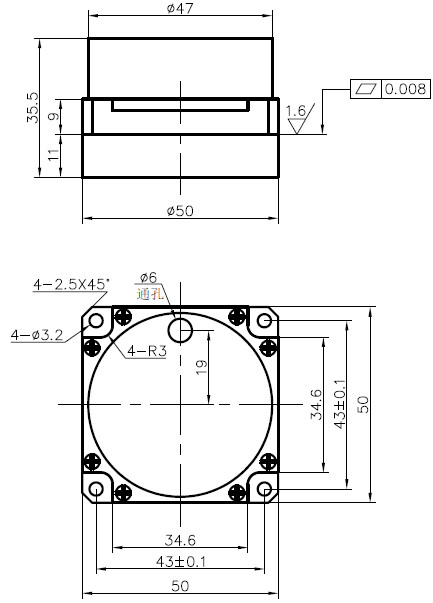

Installation mode 1. Size: 50X50X32

Navigation Grade Fiber Optic Gyroscope Used In Inertial Navigation Systems，Dimensions 50×50×36 (mm) 2

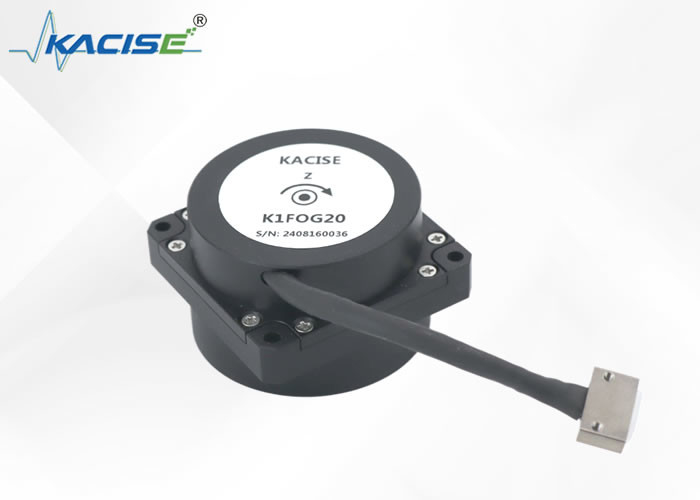

Installation mode: 2nd dimension: 50X50X36

Main performance parameters

Sn#	test item	H	L
1	Dimensions (mm)	50×50×36	50×50×36
2	start time (s)	5	5
3	Bias drift (°) / h (10s smooth, fix temperature)	≤0.1	≤0.3
4	Bias drift (°) / h (10s smooth) -45~ + 70	≤0.3	≤0.5
5	Bias repeatability (°) / h	≤0.05	≤0.1
6	Random walk coefficient⁽º⁾/h^1/2	≤0.01	≤0.02
7	Scale factor non-linearity (ppm)	≤10	≤20
8	Scale factor repeatability (ppm)	≤10	≤20
9	Operate temperature ℃	-45～+70	-45～+70
10	Storage temperature of (℃)	-50～+80	-50～+80
11	Dynamic range (°) / s	±900	±900
12	Supply voltage (V)	+5	+5
13	Steady-state power consumption (full temperature) (W)	<4	<4
14	weight (g)	＜130	＜130

Company Information

Navigation Grade Fiber Optic Gyroscope Used In Inertial Navigation Systems，Dimensions 50×50×36 (mm) 3
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing.
We supply high quality Turbine Gas Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
