| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-50 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Dimensions (mm): | 50×50×36 | Random Walk Coefficient(º)/h^1/2: | ≤0.01 |
|---|---|---|---|
| Scale Factor Non-linearity (ppm): | ≤10 | Dynamic Range (°) / S: | ±900 |
| Start Time (s): | 5 | Weight (g): | ＜130 |
| Steady-state Power Consumption (full Temperature) (W): | <4 | Bias Drift (°) / H (10s Smooth, Fix Temperature): | ≤0.1 |

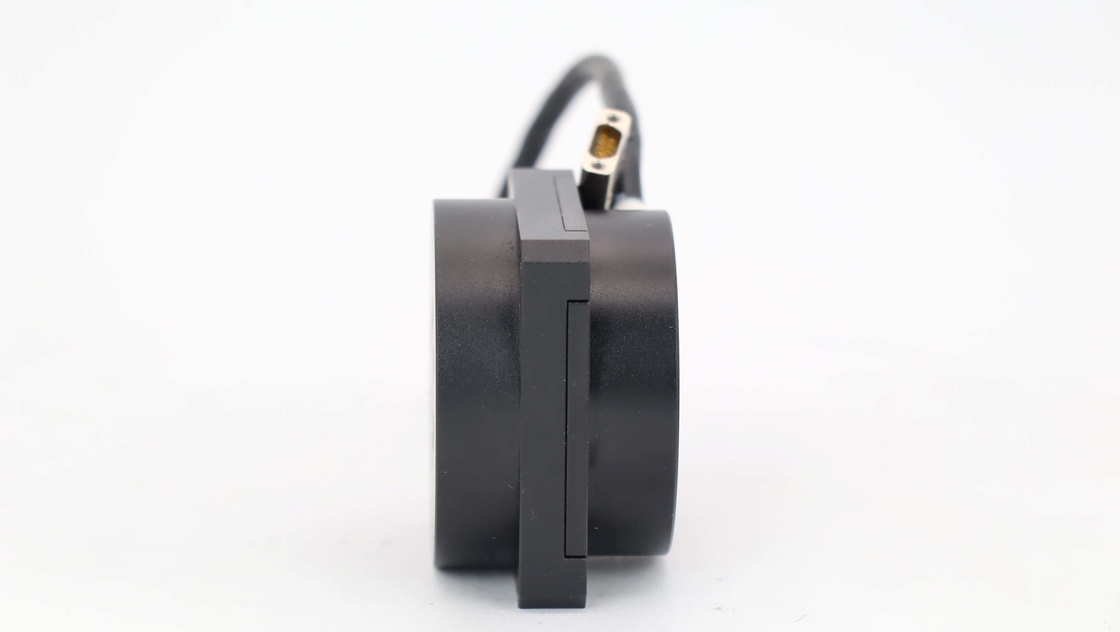

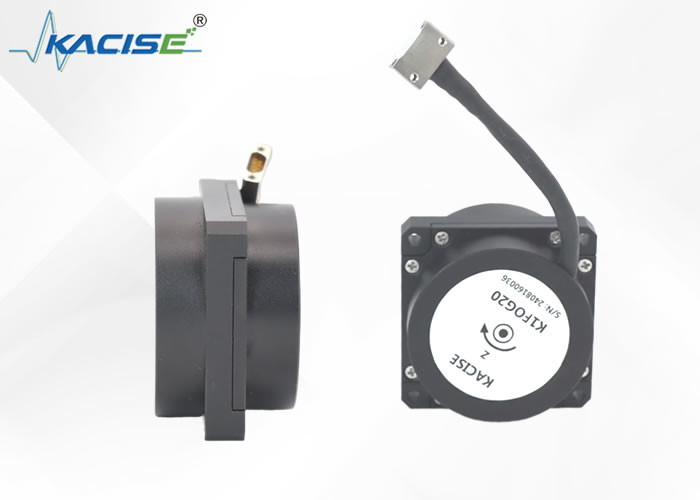

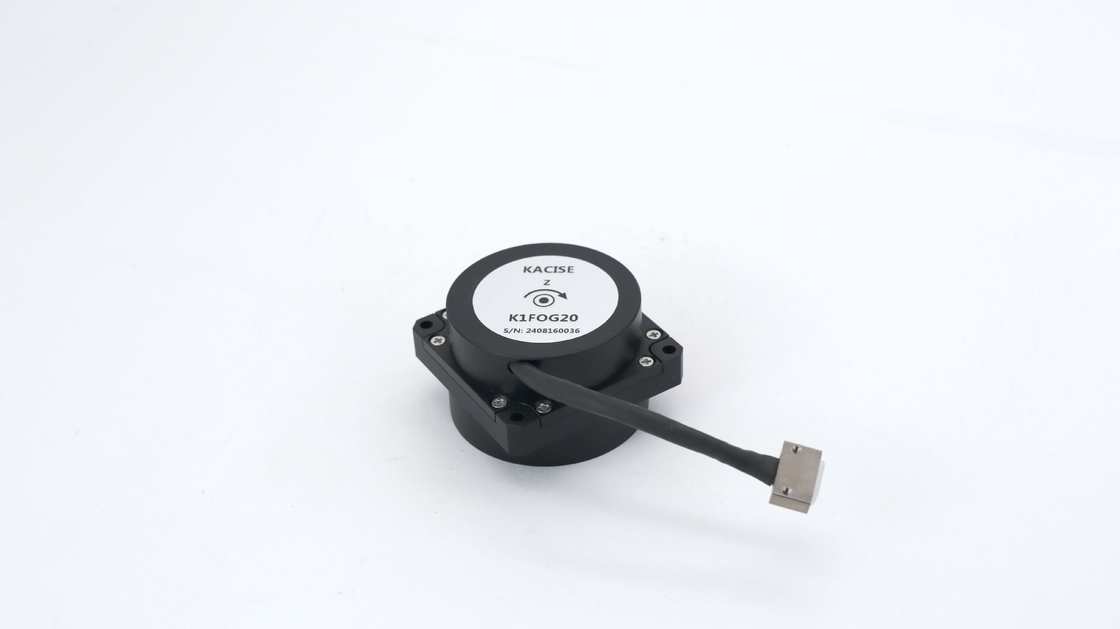

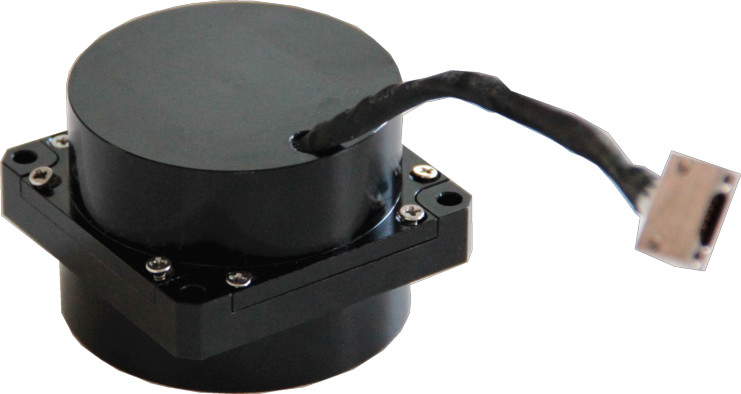

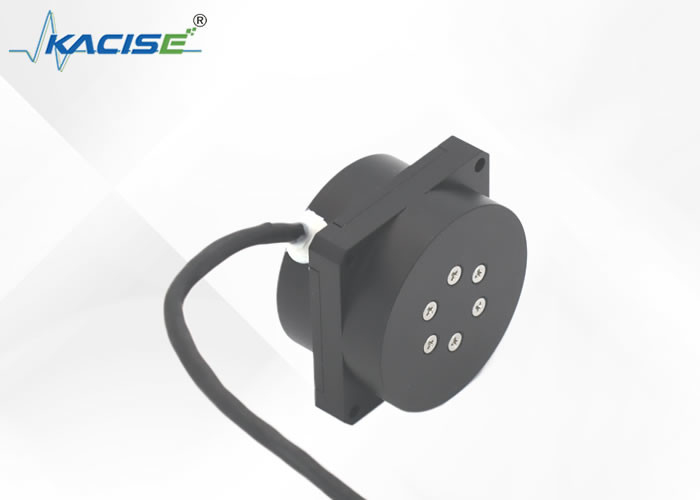

Based on the optical Sagnac effect, this device functions as an inertial angle rate sensor designed to measure the rotational angular velocity of the carrier along its sensitive axis. It utilizes a digital closed-loop detection circuit to extract the optical path difference caused by external physical angular speed in the clockwise direction. Modulating and demodulating the voltage signal from the optical path enable closed-loop feedback and control, achieving the real-time detection of angular velocity signals.
Function: This product consists of two parts: optical angular velocity sensitive unit and signal detection, providing uniaxial angle increment information and internal temperature information.
Application scope: The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Installation mode 1. Size: 50X50X32
Installation mode: 2nd dimension: 50X50X36
|
Sn# |
test item |
H |
L |
|
1 |
Dimensions (mm) |
50×50×36 |
50×50×36 |
|
2 |
start time (s) |
5 |
5 |
|
3 |
Bias drift (°) / h (10s smooth, fix temperature) |
≤0.1 |
≤0.3 |
|
4 |
Bias drift (°) / h (10s smooth) -45~ + 70℃ |
≤0.3 |
≤0.5 |
|
5 |
Bias repeatability (°) / h |
≤0.05 |
≤0.1 |
|
6 |
Random walk coefficient(º)/h1/2 |
≤0.01 |
≤0.02 |
|
7 |
Scale factor non-linearity (ppm) |
≤10 |
≤20 |
|
8 |
Scale factor repeatability (ppm) |
≤10 |
≤20 |
|
9 |
Operate temperature ℃ |
-45～+70 |
-45～+70 |
|
10 |
Storage temperature (℃) |
-50～+80 |
-50～+80 |
|
11 |
Dynamic range (°) / s |
±900 |
±900 |
|
12 |
Supply voltage (V) |
+5 |
+5 |
|
13 |
Steady-state power consumption (full temperature) (W) |
<4 |
<4 |
|
14 |
weight (g) |
＜130 |
＜130 |
Our Electronic Gyroscope Sensor is backed by a comprehensive technical support and service team. We provide technical and service support for the product, including installation, configuration, troubleshooting and more.
Our technical support and service team has a wealth of experience and knowledge in the product. We provide customers with prompt and reliable technical support and service. We are committed to helping customers make the most of their Electronic Gyroscope Sensor and providing them with the best possible service.
We offer a range of technical support and service options, including telephone, email and online support. Our technical support and service team is available to answer any queries customers may have, and provide advice and assistance with any technical issues they may encounter.
We also provide customers with regular updates and upgrades to ensure they are always up-to-date with the latest version of the product. We strive to provide customers with the highest level of customer service and satisfaction.
Packaging and Shipping for Electronic Gyroscope Sensor:
The Electronic Gyroscope Sensor will be packaged in a cardboard box with bubble wrap and other materials to ensure protection during shipping. It will be shipped via a reliable courier service with a tracking number to ensure safe and timely delivery.
