| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-98 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bias Repeatability: | ≤0.03(°) / H | Scale Factor Non-linearity: | ≤10ppm |
|---|---|---|---|
| Scale Factor Repeatability: | ≤10ppm | Dimensions: | 98×98×35mm |
| Bias Drift(10s Smooth, Fix Temperature): | ≤0.01(°) / H | Bias Drift(10s Smooth) -45~ + 70℃: | ≤0.1(°) / H |
| Random Walk Coefficient: | ≤0.005(º)/h^1/2 | Weight (g): | <550 |

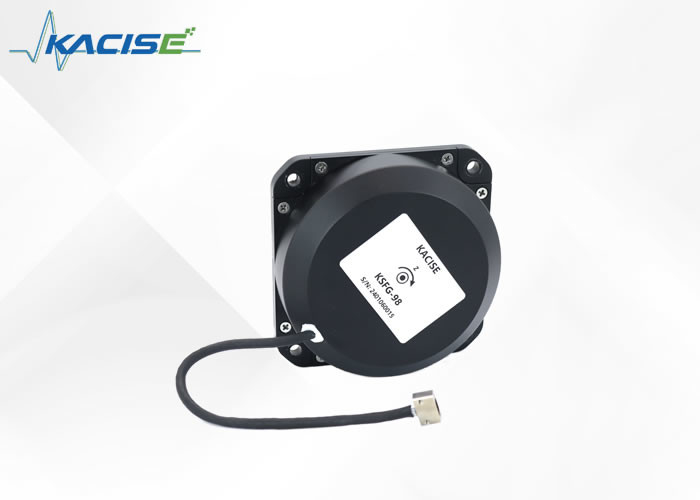

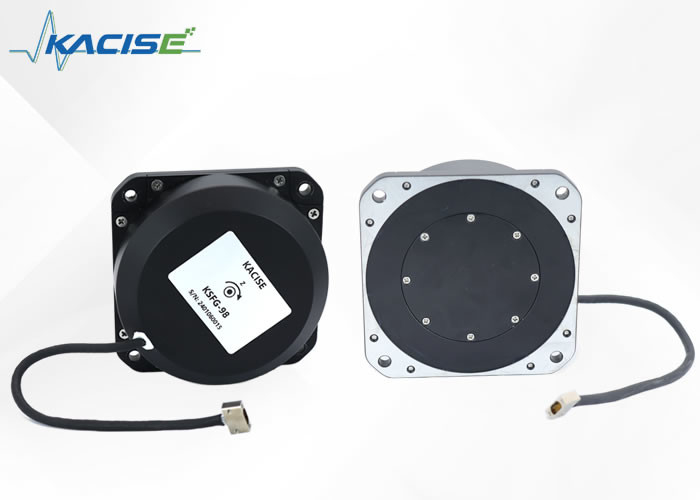

This product serves as an inertial angle rate sensor utilizing the optical Sagnac effect for measuring rotational angular velocity along the sensitive axis of the carrier. The incorporation of a digital closed-loop detection circuit facilitates the extraction of the optical path difference induced by external physical angular speed in clockwise light. Through modulation and demodulation of the optical path signal voltage, closed-loop feedback and control are established, achieving real-time detection of angular velocity signals.
Components and Functionality: Consisting of two integral parts—an optical angular velocity sensitive unit and a signal detection module—this product supplies information on uniaxial angle increments and internal temperature.
Areas of Use: Tailored for applications including photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic tools, platform stabilization devices, and inertial measurement instruments.
This high-performance gyroscope sensor is ideal for all types of navigation and attitude determination applications, providing superior reliability and accuracy. It has been designed with the highest quality materials and components, ensuring optimal performance and durability.
The Electronic Gyroscope Sensor is the perfect solution for any navigation and attitude determination needs. With its superior performance, reliability, and accuracy, it is the ideal choice for any application.
|
|---|
We provide technical support and service for the Electronic Gyroscope Sensor.
Our technical support includes:
We also provide product maintenance and repair services to ensure that your Electronic Gyroscope Sensor works as intended. These services include:
If you need any assistance, please contact us through our website or other customer service channels.
The Electronic Gyroscope Sensor is packaged with materials that protect it from damage and moisture during shipping. All products are carefully inspected and tested before shipping.
We offer different shipping options based on urgency and location. Our shipping partners are reliable and provide timely delivery.
Please contact us for more information about the shipping and packaging options for the Electronic Gyroscope Sensor.
