| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KSFG-120 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Random Walk Coefficient: | ≤0.0003º/h^1/2 | Scale Factor Repeatability: | ≤5ppm |
|---|---|---|---|
| Bias Drift(10s Smooth, Fix Temperature): | ≤0.001°/H | Start Time: | ≤5s |
| Dynamic Range: | ±300°/S | Operate Temperature: | -45～+70℃ |
| Weight (g): | ＜1000 | Dimensions: | 120×120×38mm |
| Steady-state Power Consumption (full Temperature): | <6W |

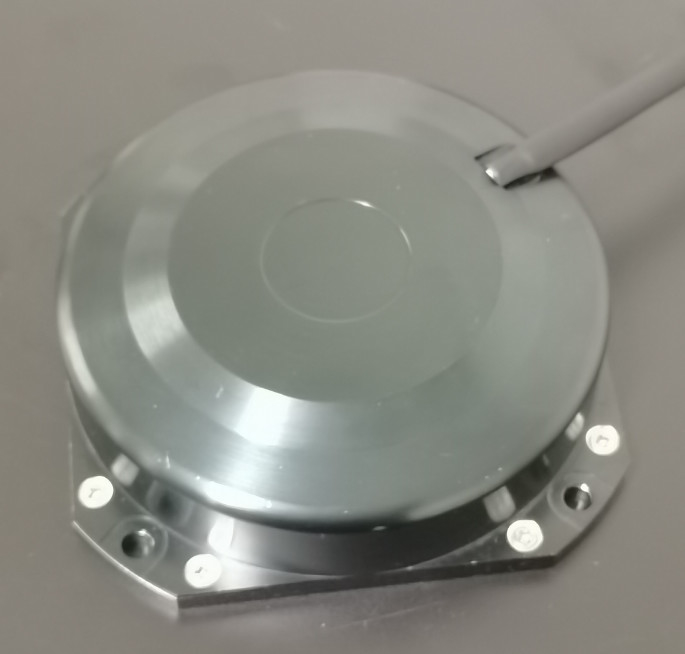

This product functions as an inertial angle rate sensor based on the optical Sagnac effect, measuring the rotational angular velocity along the carrier's sensitive axis. A digital closed-loop detection circuit extracts the optical path difference of clockwise light caused by external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, ensuring real-time detection of angular velocity signals.
Components and Functionality: Comprising an optical angular velocity sensitive unit and a signal detection module, the product provides information on uniaxial angle increments and internal temperature.
Areas of Use: Mainly suitable for photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and other applications.
|
Sn# |
Test item |
H |
L |
|
1 |

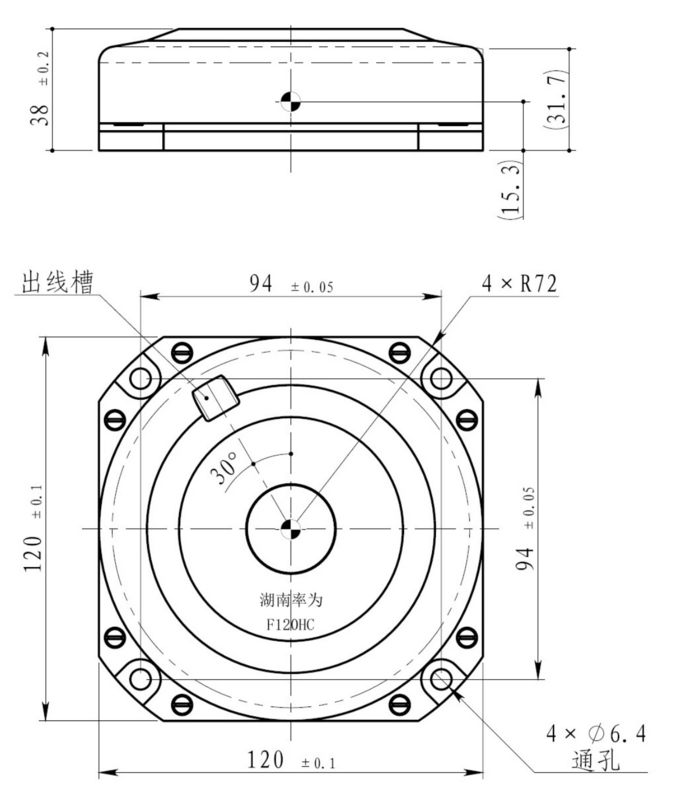

Dimensions (mm) |
120×120×38 |
120×120×38 |
|
2 |
start time (s) |
5 |
5 |
|
3 |
Bias drift (°) / h (10s smooth, fix temperature) |
≤0.001 |
≤0.003 |
|
4 |
Bias drift (°) / h (10s smooth) -45~ + 70 |
≤0.003 |
≤0.006 |
|
5 |
Bias repeatability (°) / h |
≤0.001 |
≤0.003 |
|
6 |
Random walk coefficient(º)/h1/2 |
≤0.0003 |
≤0.0008 |
|
7 |
Scale factor non-linearity (ppm) |
≤5 |
≤10 |
|
8 |
Scale factor repeatability (ppm) |
≤5 |
≤10 |
|
9 |
Operate temperature ℃ |
-45～+70 |
-45～+70 |
|
10 |
Storage temperature of (℃) |
-50～+80 |
-50～+80 |
|
11 |
Dynamic range (°) / s |
±300 |
±300 |
|
12 |
Supply voltage (V) |
±5 |
±5 |
|
13 |
Steady-state power consumption (full temperature) (W) |
<6 |
<6 |
|
14 |
weight (g) |
＜1000 |
＜1000 |
We provide technical support and service for Electronic Gyroscope Sensor products. Our team of experts is available to answer any questions you may have and to provide assistance in resolving any issues related to your sensor.
We offer phone support, email support, and in-person support to ensure that you get the most out of your Electronic Gyroscope Sensor. Our team is available to provide troubleshooting, product advice, and software/firmware updates.
We are dedicated to ensuring that you have the best experience with your Electronic Gyroscope Sensor. If you ever run into any issues or questions, please don't hesitate to contact us.
