Product Description:

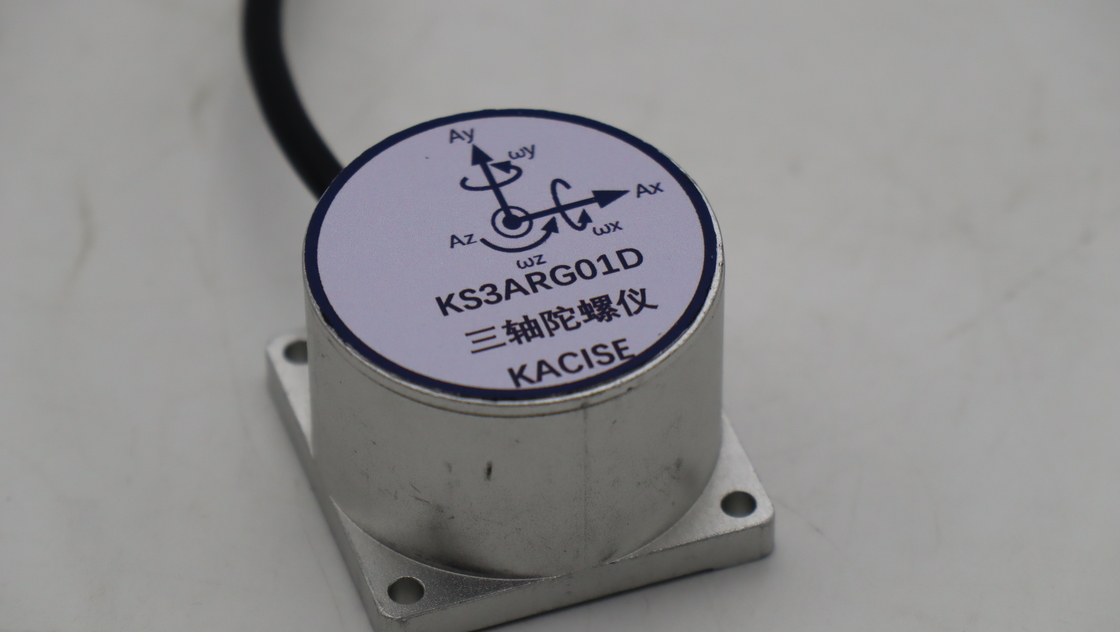

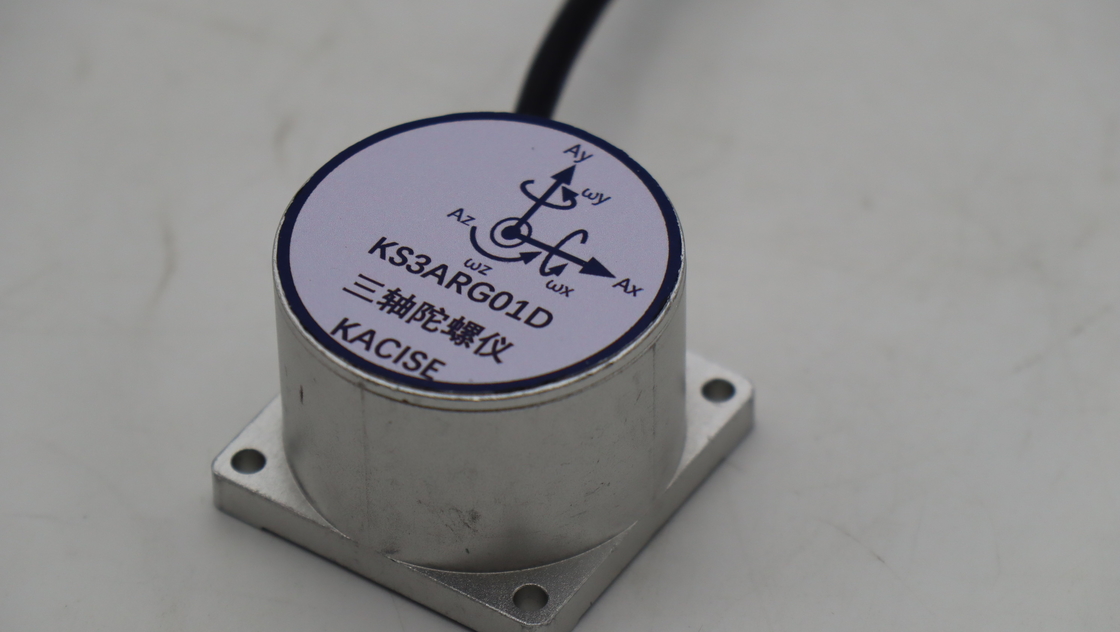

Offering superior performance in a compact form, the KS3ARG-01D digital gyro stands out for its high overload resistance and accurate measurement capabilities. Utilizing MEMS inertial devices renowned for stability and reliability, this product excels in capturing angular velocity data in challenging conditions, making it an invaluable tool for accurate navigation, control, and dynamic measurement of weaponry.
KS3ARG-01D has the characteristics of wide operating temperature range, wide bandwidth, small size, fast start and high precision. It can be widely used in weapon precision guidance and control, engineering equipment control, platform stabilization, pipeline robot, underwater vehicle and other systems.
Features:
● High stability
● High precision
● Analog and digital outputs are optional
● Wide range
● Fast start
Technical Parameters:
| Performance parameter |
KS3ARG-01D |
| range(°/s) |
±300(options) |
| Bias stability(deg/h,allan deviation) |
≤12 |
| Bias repeatability(deg/s) |
≤0.15 |
| Nonlinearity(%F.R) |
≤0.1 |
| Resolution(deg/s) |
≤0.05 |
| Bandwidth(Hz) |
≥80 |
| Cross coupling(%) |
≤1 |
| Starting time(s) |
≤1 |
| Interface characteristic |
Power supply(V) |
5V±5% |
| Electrical interface |
RS422 |
| Data update rate (optional)) |
400(Hz@460800) |
| Operating environment |
Operating temperature(°C) |
-40~+85 |
| Tolerated acceleration(g) |
10000(0.1ms) |
|
Physical property
|
Size(mm) |
Φ39.5×28.5 |
| Weight(g) |
≤100 |
Dimension figure
Support and Services:
Electronic Gyroscope Sensor
Technical Support and Services
Thank you for choosing Electronic Gyroscope Sensor. Our team is dedicated to providing excellent technical support and services to ensure the best experience with our product. Below are the details of our support and services:
Technical Support
Our team of experienced technicians is available to assist with any technical issues or inquiries you may have. We aim to provide prompt and helpful solutions to any problems you may encounter.
Product Warranty
Electronic Gyroscope Sensor comes with a one-year warranty from the date of purchase. If the product is found to be defective within this period, we will provide a replacement or repair at no additional cost. Please keep your proof of purchase in case you need to make a warranty claim.
Customer Feedback
We value your feedback and suggestions as they help us improve our product and services.
Thank you for choosing Electronic Gyroscope Sensor. We are committed to providing the best technical support and services to meet your needs.
Packing and Shipping:
Electronic Gyroscope Sensor - Packaging and Shipping
Packaging
The Electronic Gyroscope Sensor will be carefully packaged to ensure its protection during shipping. The packaging will include:
- Anti-static bag to protect the sensor from static electricity
- Bubble wrap to provide cushioning and shock absorption
- Sturdy cardboard box to hold the sensor and packaging materials
All packaging materials used are recyclable and environmentally friendly.
Shipping
Customers will have the option to select their preferred shipping method during checkout. Shipping costs will vary depending on the destination and chosen shipping method.
Once the order has been shipped, customers will receive a tracking number to monitor the delivery status of their package. We strive to ensure timely and secure delivery of all orders.
