Place of Origin: | China (Mainland) |
Brand Name: | Kacise |
Certification: | certificate of explosion-proof, CE |
Model Number: | KSFG-60 |
Minimum Order Quantity: | 1pcs |
---|---|
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Delivery Time: | 5-8 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000 Pieces per Week |
Bias Drift (10s Smooth, Fix Temperature): | ≤0.1(°/h) | Operate Temperature: | -45~+70 (℃) |
---|---|---|---|
Dimensions: | 60×60×32 (mm) | Random Walk Coefficient: | ≤0.01(º/h1/2) |
Bias Repeatability: | ≤0.1(°/h) | Steady-state Power Consumption (full Temperature): | <4 (W) |
Scale Factor Repeatability: | ≤10 (ppm) | Scale Factor Non-linearity: | ≤10 (ppm) |
High Light: | ship navigation gyroscopes,ship navigation High precision gyroscopes,10 ppm High Precision Gyroscopes |

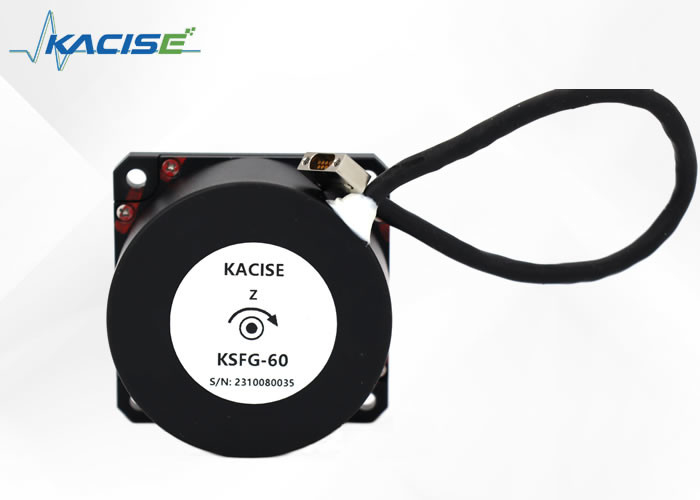

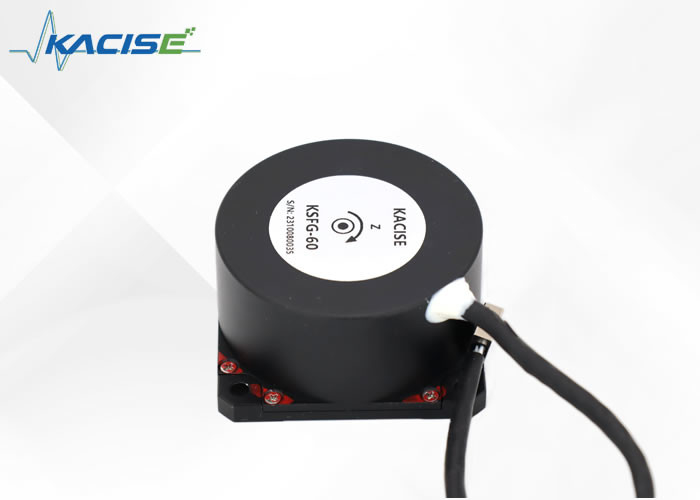

The product featured here is designed to measure a carrier's rotational angular velocity along its sensitivity axis. This is accomplished using the optical Sagnac effect, which is a principle recognized for its ability to detect rotation. The heart of the device is its digital closed-loop detection circuit. This circuit's primary role is to process the shift in the optical path of light, which occurs in a clockwise direction when external physical angular speed is present.
To effectively capture the rotational speed, the sensor modulates and demodulates the voltage signal tied to the optical path difference. Subsequent to this modulation, the system implements closed-loop feedback and control. The integration of these features culminates in the sensor's ability to detect angular velocity signals in real time, ensuring high precision and reliability in its readings.
The product is comprised of two main components. The first is the optical angular velocity sensitive unit, which is responsible for the direct measurement of rotational speed. The second is the signal detection mechanism that not only processes the angle increment data but also monitors the internal temperature of the system. Together, these components create a comprehensive solution for angular velocity sensing that is both precise and sensitive to real-world operating conditions.
Sn# | Test item | H |
1 | Dimensions (mm) | 60×60×32 |
2 | Start time (s) | 3 |
3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.1 |
4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.5 |
5 | Bias repeatability (°/h) | ≤0.1 |
6 | Random walk coefficient(°/h1/2) | ≤0.01 |
7 | Scale factor non-linearity (ppm) | ≤10 |
8 | Scale factor repeatability (ppm) | ≤10 |
9 | Operate temperature (℃) | -45~+70 |
10 | Storage temperature (℃) | -50~+80 |
11 | Dynamic range (°/s) | ±500 |
12 | Supply voltage (V) | +5 |
13 | Steady-state power consumption (full temperature) (W) | <4 |
14 | Weight (g) | <180 |
Dimensions
The range of products we offer primarily cater to a variety of specialized fields requiring precise positioning and control. These applications are essential in the operation of equipment used in several industries.
Our products are perfectly designed for use in high-precision machinery such as photoelectric cranes and cranes. The precise control and stability offered by our products ensure the smooth operation of these heavy-duty machines.
In the area of aerial access, flying platforms benefit extensively from our high-quality product range. The sensitive nature of these platforms' positioning makes our products indispensable for safe and efficient operations.
We offer solutions for inertial navigation and measurement systems, providing reliable and accurate data for various applications. Devices used in optical and photographic instruments also perform optimally with the integration of our technology.
Our advanced products are crucial for systems that require stable operation. They are extensively utilized in platform stabilization devices and inertial measurement instruments, ensuring precise and steady performance.
Our Electronic Gyroscope Sensor is designed with precision in mind to provide reliable orientation and angular velocity measurements for your applications. This sensor is built to operate seamlessly within a wide range of operating conditions, ensuring consistent performance for your critical needs.
Product Technical Support includes comprehensive guidance for integration and troubleshooting. For any technical inquiries or assistance, our team of experienced engineers is available to provide expert support. We are dedicated to helping you understand the full capabilities of our product and ensuring its optimal performance in your projects.
Services provided include:
Please note that our technical support does not include physical repair services. However, we offer a warranty on our products. If you encounter any manufacturing defects or performance issues within the warranty period, please reach out to us for a replacement or repair solutions.
We are committed to your satisfaction and strive to provide exceptional support for our Electronic Gyroscope Sensor. Our goal is to ensure that you can fully leverage the capabilities of our product to achieve your desired outcomes.
Product Packaging:
The Electronic Gyroscope Sensor is securely encased in a custom-fit, anti-static foam insert that ensures the device remains stationary during transit. This foam is placed inside a durable, cardboard box that is designed to withstand the rigors of shipping. The exterior of the box includes clear labeling of the product name, handling instructions, and a barcode for inventory tracking. Additionally, a tamper-evident seal is applied to the packaging to guarantee the product's integrity upon arrival.
Shipping:
All orders of the Electronic Gyroscope Sensor are dispatched via our trusted logistics partners to ensure timely and safe delivery. Standard shipping includes real-time tracking and delivery confirmation. For expedited shipping options, please contact our customer service. The product is shipped with an appropriate level of insurance coverage to safeguard against potential transport damage. Upon dispatch, customers will receive a notification email with the tracking details to monitor the shipment's progress.
