High Precision Fog Gyro with Bias Repeatability ≤0.03 (°/h) and 70×70×32 (mm) Dimensions

High Precision Fog Gyro with Bias Repeatability ≤0.03 (°/h) and 70×70×32 (mm) Dimensions

High Precision Fog Gyro

70×70×32 Dimensions Fog Gyro

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

K1FOG40

Contact Us
Request A Quote
Product Details
Steady-state Power Consumption (full Temperature):
<4 (W)
Dimensions:
70×70×32 (mm)
Supply Voltage:
+5 (V)
Bias Drift (10s Smooth, Fix Temperature):
≤0.03(°/h)
Bias Drift (10s Smooth) -45~ + 70℃:
≤0.1(°/h)
Weight:
<290 (g)
Operate Temperature:
-40~+70 (℃)
Scale Factor Non-linearity:
≤10 (ppm)
High Light:

High Precision Fog Gyro

,

70×70×32 Dimensions Fog Gyro

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 working days
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
1000 Pieces per Week
Product Description

Product Description:

Inertial Angle Rate Sensor Overview

The product on offer is an advanced inertial angle rate sensor that utilizes the principles of the optical Sagnac effect . This technology is pivotal for quantifying the rotation speed or angular velocity around its sensitive axis, specifically with reference to the motion of the carrier it's attached to.

Operational Mechanism

At the heart of the sensor's operation lies a digital closed-loop detection circuit . This sophisticated component is tasked with discerning the optical path disparity introduced by the carrier's angular velocity, which is detected in the form of clockwise light. Once identified, the sensor engages in a dual modulation-demodulation process regarding the voltage signal attributed to the optical path.

Furthermore, this rigorous technique facilitates closed-loop feedback and control . Such integration is paramount as it empowers the sensor to not only monitor but also regulate the real-time detection of the angular velocity signal. This attribute underscores the sensor's efficacy and reliability in dynamic environments.

Functional Aspects

Functionality-wise, the product is comprised of two interrelated components: the optical angular velocity sensitive unit and the signal detection system . Collectively, these segments convey critical data pertaining to the uniaxial angular increment. Moreover, the sensor is adept at providing pertinent information about the internal temperature , making it a comprehensive tool for a wide array of applications.



Features:

  • Product Name: Electronic Gyroscope Sensor
  • Dimensions (mm): 70×70×32
  • Start time (s): 5
  • Storage temperature (℃): -45~+80
  • Dynamic range (°/s): ±500
  • Scale factor repeatability (ppm): ≤10
  • High-performance fog gyro technology
  • Ideal gyro solution for airplane navigation systems
  • Precision airplane gyroscope for accurate angular rate measurement


Technical Parameters:

Sn# test item H M L
1 Dimensions (mm) 70×70×32 70×70×32 70×70×32
2 start time (s) 5 5 5
3 Bias drift (°) / h (10s and 100s smoothing, fix temperature)

≤0.03(10s)

≤0.01(100s)

≤0.05 ≤0.3
4 Bias drift (°) / h (10s smoothing) -45~ + 70℃ ≤0.1 ≤0.15 ≤0.5
5 Bias repeatability (°) / h ≤0.03 ≤0.05 ≤0.3
6 Random walk coefficient(º)/h1/2 ≤0.005 ≤0.01 ≤0.02
7 Scale factor non-linearity (ppm) ≤10 ≤20 ≤50
8 Scale factor repeatability (ppm) ≤10 ≤20 ≤50
9 Operate temperature (℃) -40~+70 -40~+70 -40~+70
10 Storage temperature of (℃) -45~+80 -45~+80 -45~+80
11 Dynamic range (°) / s ±500 ±500 ±500
12 Supply voltage (V) ±5 ±5 ±5
13 Steady-state power consumption (full temperature) (W) <4 <4 <4
14 weight (g) <290 <290 <290





Dimensions:

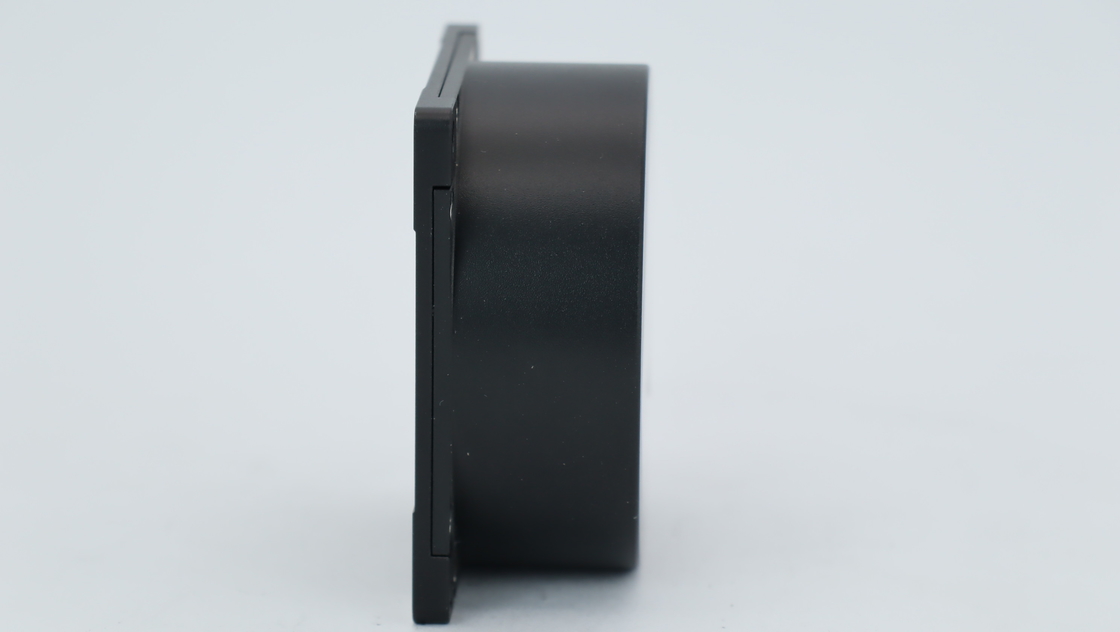

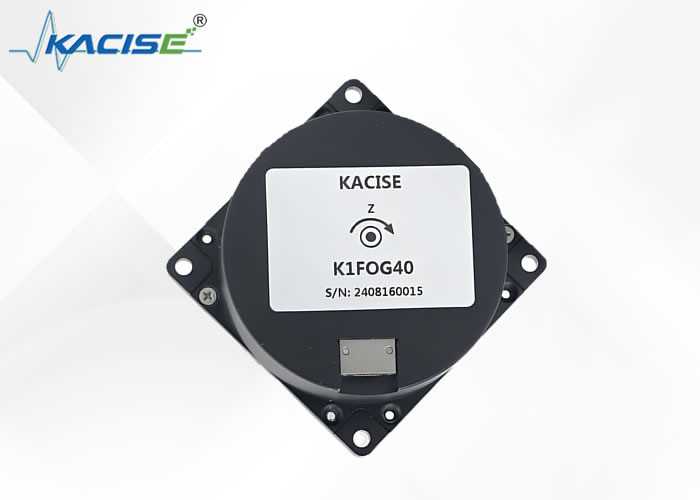

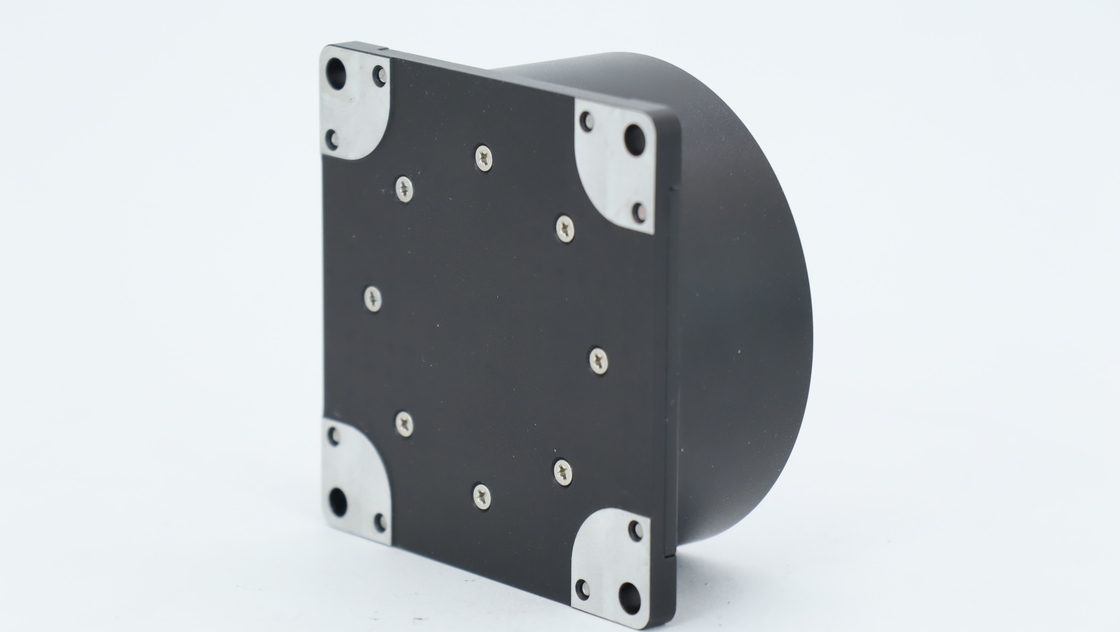

High Precision Fog Gyro with Bias Repeatability ≤0.03 (°/h) and 70×70×32 (mm) Dimensions 0High Precision Fog Gyro with Bias Repeatability ≤0.03 (°/h) and 70×70×32 (mm) Dimensions 1

Applications:

Application Scope

Our products offer versatile applications, primarily designed to enhance the performance and functionality of a diverse array of systems and devices. They are the quintessential choice for enhancing the efficiency of various photoelectric and control systems.

Their optimal use can be found in advanced photoelectric cranes , providing seamless operation and precision. These applications extend to modern cranes and flying platforms , where stability and accuracy are vital for operation.

In the realm of navigation and position measurement, our products bring top-notch capabilities to inertial navigation systems and inertial measurement systems . They are indispensable tools for obtaining reliable data in these fields.

Moreover, they are perfectly suited for use in the optical sector, including various types of photographic instruments . With these products, the quality and functionality of optical instruments are significantly elevated.

They also play a critical role in stabilization devices, enhancing the performance of platform stabilization devices . The precise nature of our products further supports their application in inertial measurement instruments , enabling refined measurements and improved system reliability.



Support and Services:

Welcome to our Product Technical Support and Services for the Electronic Gyroscope Sensor. Our dedicated team is available to assist you with any technical challenges you may encounter while using our product. We offer a comprehensive range of services to ensure the optimal performance and longevity of your Electronic Gyroscope Sensor.

Our support includes:

- Troubleshooting Assistance: If you're experiencing issues with your sensor, our technical support team is here to help diagnose and resolve problems quickly and efficiently.

- Firmware Updates: We provide regular firmware updates to enhance the functionality of your gyroscope sensor and to introduce new features.

- Installation Guidance: Our experts can guide you through the installation process and provide tips for proper setup to ensure accurate readings and performance.

- Calibration Support: To maintain the precision of your sensor, we offer calibration services and guidance on how to properly calibrate your device as needed.

- Product Documentation: Access a wide range of documentation, including user manuals, technical specifications, and application notes, to better understand and utilize your Electronic Gyroscope Sensor.

- FAQs and Knowledge Base: Our online resources include a frequently asked questions section and an extensive knowledge base that can provide immediate answers to common queries.

- Software Tools: We provide proprietary software tools to enhance your experience with the Electronic Gyroscope Sensor, enabling you to analyze data and configure settings with ease.

Please refer to our website for more information, and do not hesitate to reach out to our support team for personalized assistance with your Electronic Gyroscope Sensor. We are committed to providing you with the highest quality support and ensuring your satisfaction.



Packing and Shipping:

The Electronic Gyroscope Sensor is packaged with utmost care to ensure its safety and integrity during transit. The product is first enclosed in an anti-static bag to protect against electrostatic discharge. This is then cushioned with custom-fitted foam inserts that snugly secure the sensor within a sturdy, corrugated cardboard box. The packaging is designed to withstand the rigors of shipping, absorbing any shocks and vibrations that could potentially harm the delicate electronic components.

Before shipping, the box is sealed with tamper-evident tape and labeled with handling instructions to ensure that the product is transported upright at all times. We also include a desiccant pack inside the box to protect against humidity, and the exterior of the package is marked with the appropriate warning stickers to indicate that the contents are fragile and sensitive to moisture.

All shipments of the Electronic Gyroscope Sensor are sent out with a tracking number and require a signature upon delivery for added security. We partner with reliable shipping carriers and offer various shipping options to meet different needs, including expedited shipping for urgent requirements. Our team meticulously checks each order before dispatch to ensure that all components are included and that the packaging meets our high standards for quality control.
