| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARG02D |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Storage Temperature: | -55~+85(°C) | Electrical Interface: | RS422 |
|---|---|---|---|
| Range: | ±500(triaxial)(deg/s) | Nonlinearity: | ≤0.05(%FR) |
| Size: | 45×39×20(mm) | Random Walk: | 0.15(°/√h) |
| Mean Time Between Failures: | 10(Kh MTBF) | Data Updating Rate(can Set): | 2000(Hz@460800) |
| High Light: | Precision Mems Gyroscope Sensor,Low Random Walk Mems Gyroscope Sensor,Wide Temperature Range Mems Gyroscope Sensor |
||

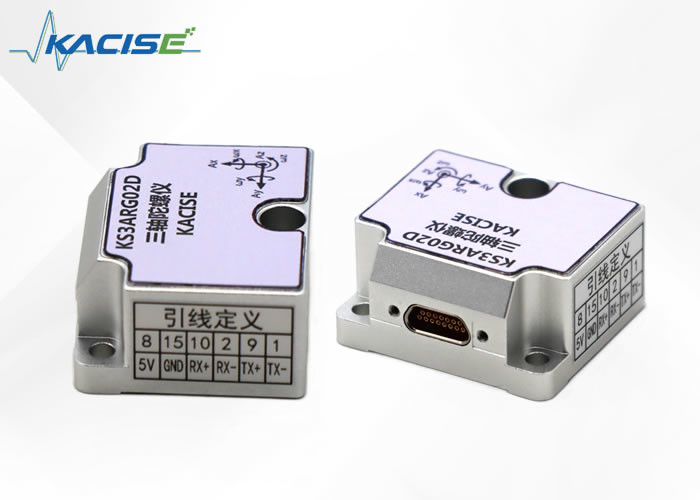

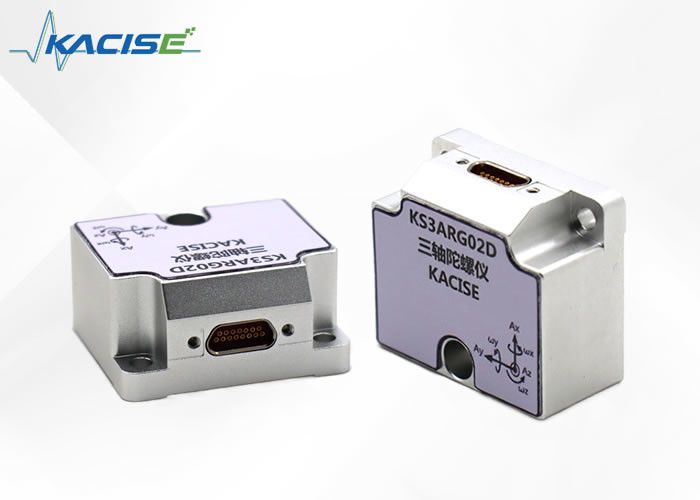

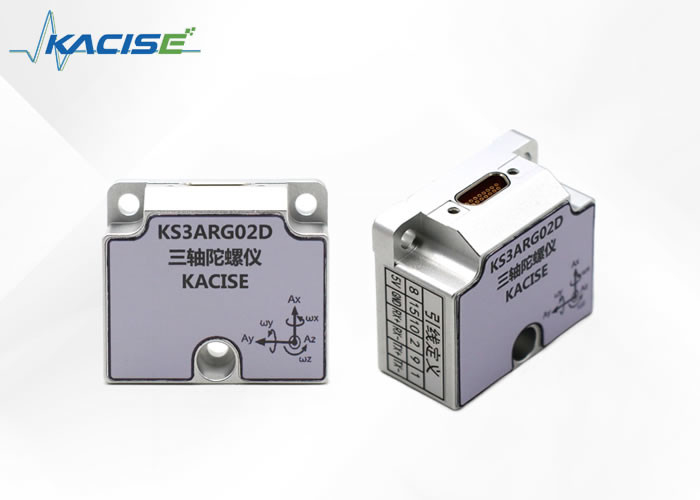

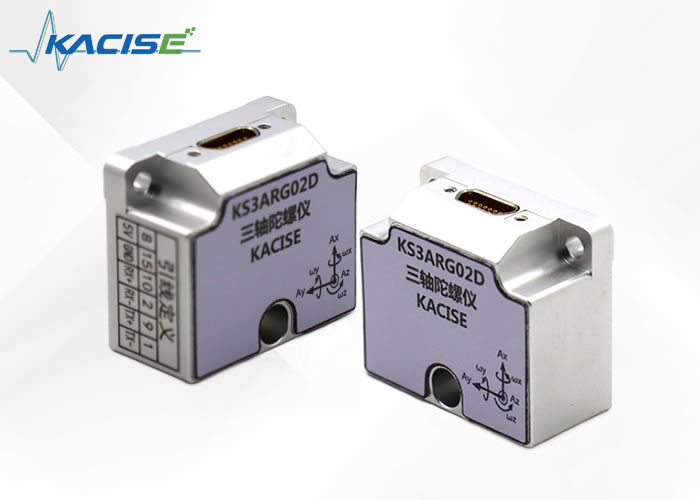

The KS3ARG02D Series Solid State Angular Rate Sensor , also referred to as a gyro, is engineered to precisely measure rotational motion. This advanced sensor integrates cutting-edge Micromechanoelectronic System (MEMS) technology , providing excellent performance and reliability.
The core chips of the KS3ARG02D sensor are produced using the innovative Bipolar Metal Oxide Semiconductor (BIMOS) technology . This production process is further enhanced by a spherical grid arrangement for current carrier welding, ensuring high structural integrity and reliability.
Designed for durability, the sensor boasts high package ruggedness , suitable for demanding applications. Moreover, it incorporates a Self-Test function , enabling Built-In Testing (BIT) for immediate in-field diagnostics.
Among its many features, the KS3ARG02D sensor offers zero bias calibration and temperature drift compensation , ensuring accurate measurements regardless of environmental changes. Its wide measurement range and wide bandwidth are complemented by non-linear correction capabilities .
Operating across a wide temperature range , the sensor is both compact and lightweight , making it a perfect fit for space-constrained applications. It also features an impressive ability to withstand high impact acceleration , highlighting its suitability for high-stress environments.
Dimensions
| Performance parameter | KS3ARG02D | |
| gyro |
range (deg/s) |
±500(triaxial) |
| Zero-bias(deg/s) | ≤±0.1(In 500°/s) | |
| Zero-bias stability(deg/h) | ≤0.5allan deviation | |
| Zero-bias repeatability(deg/s) | ≤0.05 | |
| nonlinearity(%FR) | ≤0.05 | |
| Random walk(°/√h) | 0.15 | |
| Mean time between failures(Kh MTBF) | 10 | |
| Interface characteristic | power(V) | DC5 |
| power dissipation(W @5V DC) | ≤1 | |
| electrical interface | RS422 | |
| data updating rate(can set) | 2000(Hz@460800) | |
| operating environment | operating temperature(°C) | -40~+80 |
| storage temperature(°C) | -55~+85 | |
| Vibration(g @ 20~2000 Hz) | 6.06 | |
| Shock(g , 0.1 ms, 1/2 Sine) | 5000 | |
| physical property | Size(mm) | 45×39×20 |
| Weight(g) | ≤60 | |
The Kacise KS3ARG02D electronic gyroscope sensor, originating from China (Mainland), is a state-of-the-art device designed to provide precise rotational motion sensing in various applications. This high-quality sensor carries certifications, including the certificate of explosion-proof and CE, ensuring its compliance with stringent safety and quality standards. With a minimum order quantity of just one piece, Kacise offers flexibility to customers ranging from research institutions to industrial enterprises.
Each KS3ARG02D sensor is meticulously packaged in an individual box, with the option for standard packaging or customized packaging upon the customer's request. Kacise understands the importance of timely project progression and therefore commits to a swift delivery time of 5-8 working days, accommodating urgent requirements. Payment is facilitated through versatile terms, accepting T/T, Western Union, and MoneyGram, and with an impressive supply ability of 1000 pieces per week, Kacise ensures that even large-scale orders can be fulfilled promptly.
The compact size of the KS3ARG02D, measuring just 45×39×20(mm), makes it an unparalleled choice for applications where space is at a premium. Despite its small size, it does not compromise on performance, boasting a range of ±500 (triaxial) (deg/s) and a zero-bias of ≤±0.1 (In 500°/s) (deg/s), ensuring high accuracy in measurements. This makes it particularly suitable for sophisticated applications such as missile guidance and control, where precision is paramount.
The sensor is engineered for durability, with a mean time between failures (MTBF) of 10(Kh), indicating a reliable long-term performance. Its operating temperature range of -40 to +80(°C) allows for operation in extreme environmental conditions. The KS3ARG02D is equipped with temperature drift compensation, which is crucial for maintaining accuracy and consistency in the readings despite fluctuations in ambient temperature, a feature especially important in varying outdoor scenarios or industrial environments with high-temperature variations.
The versatility of the KS3ARG02D makes it ideal for a variety of applications beyond missile guidance, including robotics, platform stabilization, and vehicle navigation. Its robustness, coupled with the advanced features such as temperature drift compensation and small size, positions the Kacise KS3ARG02D as a leading choice for professionals seeking a reliable electronic gyroscope sensor for their precision-oriented projects.
Welcome to the Technical Support and Services for our Electronic Gyroscope Sensor product. Our dedicated team is here to provide you with the highest level of technical support and customer service. With our support, you can ensure that your gyroscope sensor operates at peak performance for your application needs.
If you encounter any technical difficulties or require assistance with your Electronic Gyroscope Sensor, please refer to our comprehensive online resources. Our support includes detailed product documentation, FAQs, troubleshooting guides, and application notes that provide valuable information for setup, usage, and optimization of your sensor.
We are committed to the continuous improvement of our products and services. Therefore, we welcome your feedback and suggestions. Our team is constantly working on developing new updates and enhancements that can be easily integrated to improve the functionality and performance of your Electronic Gyroscope Sensor.
Thank you for choosing our Electronic Gyroscope Sensor. We are here to ensure that your experience with our product is successful and satisfactory.
The Electronic Gyroscope Sensor is securely encased in a custom-molded, anti-static foam insert, ensuring the delicate components remain intact during transit. The foam is housed within a sturdy, corrugated cardboard box that provides an additional layer of protection against impacts and vibrations.
The exterior of the box is clearly labeled with the product name, handling instructions, and a delicate instrument warning to ensure careful handling by shipping carriers. Each side of the box features a 'Fragile' label, and arrows indicating the upright position of the package.
Prior to shipping, the box is sealed with heavy-duty packing tape to prevent tampering and exposure to the elements. A packing slip with the product details and recipient information is attached to the outside of the box in a weatherproof pouch.
All shipments are sent via a trusted courier service with tracking capabilities to ensure the Electronic Gyroscope Sensor arrives at its destination promptly and reliably. Customers will receive a tracking number upon dispatch to monitor their package's progress.
In the interest of environmental responsibility, the packaging materials are recyclable and we encourage customers to dispose of them in an eco-friendly manner.
