| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Bandwidth(Hz)can Customize: | ≤100 | Run-up Time: | ≤5(ms) |
|---|---|---|---|
| Output Voltage: | 0.66～2.64(V) | Output Noise: | ≤0.02(°/s√Hz) |
| Resolution/Threshold: | ≤0.1(°/s) | G-value Sensitivity: | ≤0.02(°/s/g) |
| Weight: | ≤50(g) | Nonlinearity: | ≤0.05(%FR) |

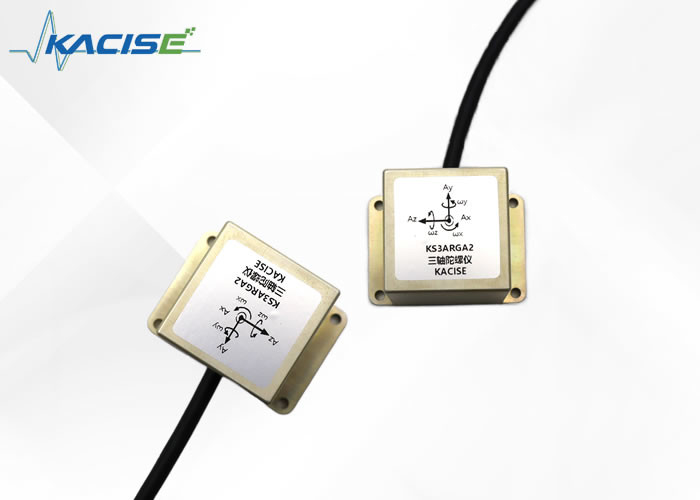

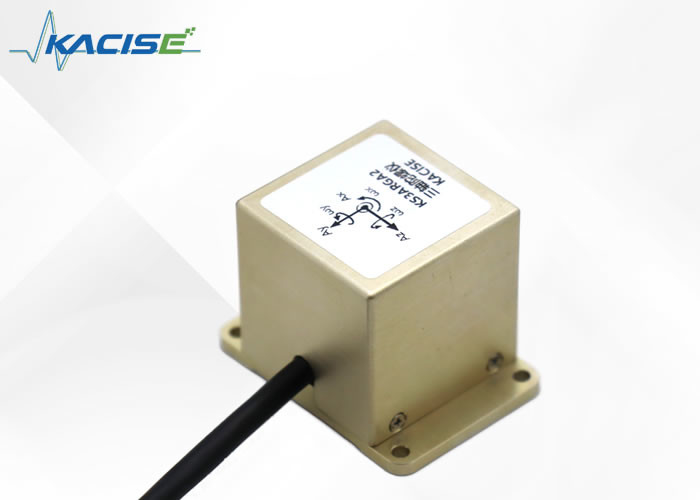

The KS3ARGA2 series is a three-axis universal angular rate gyro designed to measure the angular rate of moving carriers. Utilizing MEMS technology chip, this gyroscope delivers high performance, reliability, and package robustness while maintaining low cost. Additionally, it also features a Self-Test function providing efficient and dependable results.
Not only does it possess superior technology, but it also has low power consumption, making it energy efficient. The wide operating temperature range and wide bandwidth further enhance its versatility. Its fast start feature and small size ensure it is quick and easy to use, and its DC input DC output feature makes it manageable for many types of devices.
Overall, the KS3ARGA2 series is an exemplary product that caters to a wide range of devices. With its advanced MEMS technology, reliable performance, and energy-efficient attributes, it is a cost-effective solution possessing a compact design suitable for various applications.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
| Parameter | KS3ARGA2 |
| Power supply parameter | |
| Input voltage | 5V(Vdc) |
| Incoming currentmA | <10 mA |
| Offset voltage | 1.65±0.02(V) |
| Output voltage | 0.66～2.64(V) |
| Product performance | |
| Range | ±300(X,Y,Z)(°/s) |
| Scaling factor | 3.3±0.05(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 100(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 43×30.5×30.5(mm) |
| Weight | ≤50(g) |
| zero-bias stability | 12(°/h) |
| Temperature drift | ≤±0.1(°/s/°C) |
| Environment | |
| Operating temperature range | -45～+105(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
Here are some possible rewrites of the given content:
The field of automotive electronics encompasses all of the electronic systems used in vehicles, from the engine control unit to the entertainment system. In recent years, advances in technology have allowed for more sophisticated features and greater connectivity in cars.
The guidance and control systems used in aircraft are critical for ensuring safe and accurate flight. These systems help the pilots navigate, maintain altitude, and control speed, among other functions. With the increasing use of drones and other unmanned aerial vehicles, the importance of reliable guidance and control systems has only grown.
Whether it's a drone hovering in the air or a camera mounted on a vehicle, platform stability is key for capturing clear images and video. Advanced stabilization techniques, such as gyroscopes and accelerometers, can help compensate for movement and keep the camera steady.
Robots are becoming increasingly common in a wide range of applications, from manufacturing to healthcare. Advances in artificial intelligence and machine learning are enabling robots to perform more complex tasks and work alongside humans in new and innovative ways.
Antennas and cameras are vital components of many electronic systems, including communication networks and surveillance equipment. Stability is essential for accurate imaging and reliable signal transmission, and a range of technologies are used to stabilize these components.
A digital camera gimbal is a device that helps keep a camera steady during movement. It uses motors and sensors to counteract any shaking or vibration and keep the camera level. Digital camera gimbals are commonly used in filmmaking and other applications where smooth, stable footage is important.
The Electronic Gyroscope Sensor product technical support and services include:
- Assistance with installation and setup
- Troubleshooting and problem resolution
- Firmware updates and upgrades
- Repair and replacement services
- User manuals and documentation
- Technical consultations and advice
- Warranty and post-warranty support
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
