| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KS3ARGA2 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Operating Temperature Range: | -45～+105(°C) | Cross Coupling: | ≤2(%) |
|---|---|---|---|
| G-value Sensitivity: | ≤0.02(°/s/g) | Bandwidth(Hz)can Customize: | ≤100 |
| Storage Temperature: | -65～+125(°C) | Tolerated Acceleration: | 20000(0.1ms)(g) |
| Mean Time Between Failures(MTBF): | 100000hour | Zero-bias Stability: | 12(°/h) |

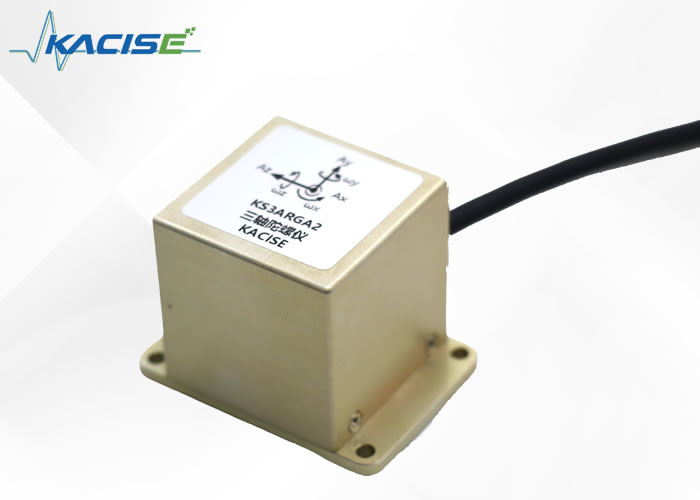

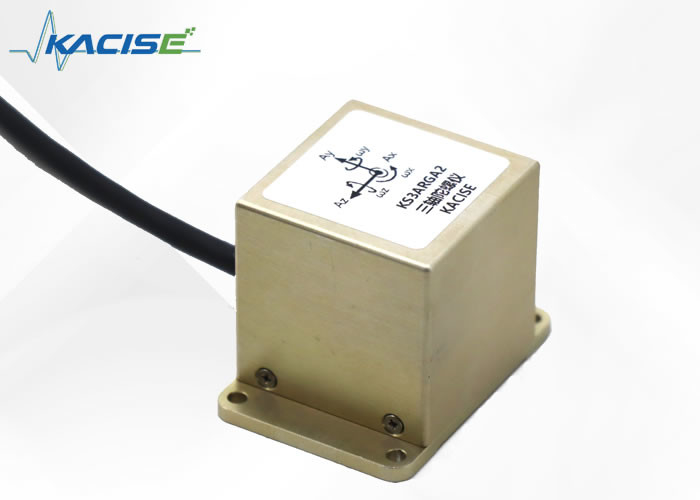

The KS3ARGA2 series three-axis universal angular rate gyro is designed to measure the angular rate sensor of moving carriers. This gyroscope adopts MEMS technology chip, which provides high performance, low cost, high reliability, and high package robustness. It also has a Self-Test function to ensure accuracy and reliability.
In addition, this product has several other useful features. It has low power consumption, making it ideal for battery-operated devices. It also has a wide operating temperature range, making it suitable for use in harsh environments. The wide bandwidth enables high-speed data transfer, and the small size allows for easy integration into devices. The fast start and DC input DC output make it convenient for use in various applications.
● low power consumption
● wide operating temperature range
● wide bandwidth
● small size
● DC input DC output
● fast start
● high performance, low cost
| Parameter | KS3ARGA2 |
| Power supply parameter | |
| Input voltage | 5V(Vdc) |
| Incoming currentmA | <10 mA |
| Offset voltage | 1.65±0.02(V) |
| Output voltage | 0.66～2.64(V) |
| Product performance | |
| Range | ±300(X,Y,Z)(°/s) |
| Scaling factor | 3.3±0.05(mv/°/s) |
| Nonlinearity | ≤0.05(%FR) |
| Resolution/Threshold | ≤0.1(°/s) |
| Cross coupling | ≤2(%) |
| Output noise | <0.02(°/s√Hz) |
| run-up time | ≤20(ms) |
| Bandwidth can customize | 100(Hz) |
| G-value sensitivity | <0.02(°/s/g) |
| Mean time between failures | 100000hour(MTBF) |
| Size | 43×30.5×30.5(mm) |
| Weight | ≤50(g) |
| zero-bias stability | 12(°/h) |
| Temperature drift | ≤±0.1(°/s/°C) |
| Environment | |
| Operating temperature range | -45～+105(°C) |
| Storage temperature | -65～+125(°C) |
| Tolerated acceleration | 20000(0.1ms)(g) |
Automotive electronics refer to various electronic systems and devices used in cars or vehicles. These electronic systems include infotainment systems, engine control units, safety systems, and more. Automotive electronics plays a critical role in enhancing the functionality, safety, and comfort of modern cars.
Aircraft guidance and control refers to the systems and devices that ensure the safe and efficient operation of airplanes and other aircraft. These systems include autopilots, navigation systems, weather radar, and more. Aircraft guidance and control systems improve safety by providing pilots and air traffic controllers with real-time information and control capabilities.
Platform stability refers to the ability of a platform or structure to maintain its steady position despite external disturbances or forces. Platform stability is important in many fields, including marine, aerospace, and robotics, where stability is necessary for smooth and safe operation. Platform stability is achieved through the use of advanced control systems and sensors.
Robotics is the interdisciplinary field of engineering and science that deals with the design, construction, operation, and use of robots. Robotics can be applied in a wide range of industries, such as manufacturing, healthcare, and agriculture. Robotics technology is rapidly advancing, promising to create new opportunities for automation and efficiency.
Antenna stabilization and camera gimbal refer to the systems and devices used to stabilize antennas or cameras on moving platforms such as drones, vehicles, or boats. These systems enable the antennas or cameras to maintain their pointing direction and stability despite the motion of the platform. Antenna stabilization and camera gimbal technology is critical in applications such as surveillance, search and rescue, and remote sensing.
A camera pan-tilt unit, also known as a camera rotation or gimbal, is the motorized device used for remote control of a camera's direction and orientation. Camera pan-tilt units are widely used in broadcast television, surveillance, and filmmaking. The camera pan-tilt unit allows for precise control of the camera's movements, enabling smooth and dynamic shots.
Our Electronic Gyroscope Sensor product is backed by a comprehensive technical support and service system, designed to provide our customers with the help they need when they need it. Our team of experienced technical support representatives is available to assist with any questions or issues related to our product.
In addition to our standard technical support, we offer a range of services to help our customers get the most out of our Electronic Gyroscope Sensor product. These services include:
We understand that every customer has unique needs and requirements, and we are committed to working closely with each of our customers to provide customized support and services that meet their specific needs. Whether you need help troubleshooting an issue, installing our product, or maintaining and repairing it over time, our team is here to help.
The Electronic Gyroscope Sensor is meticulously packaged in an anti-static bag to ensure protection against electrostatic discharge (ESD). The sensor is then securely encased in a custom-fit, high-density foam mold, which provides superior shock absorption during transit. This foam is placed within a durable, branded cardboard box that shields the sensor from environmental factors and potential damage while in transit.
The exterior of the box features clear labeling with the product name, handling instructions, and a barcode for easy tracking. All our packages are sealed with tamper-evident tape, offering an additional layer of security.
For shipping, the Electronic Gyroscope Sensor is dispatched via a trusted courier service to ensure timely and safe delivery. We include insurance for the full value of the product, offering peace of mind and protection for your investment. Tracking information is provided as soon as the package is dispatched, allowing for real-time monitoring of the shipment until it arrives at its destination.
