| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KXV9721 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Supply Voltage: | +2.7V~+3.6V | Scale Factor Variation Over Temperature Spt: | ±3% |
|---|---|---|---|
| Non-linearity NI: | Non-linearity NI | Bias Temperature Coefficient ZRLs: | 0.0016(°/s)/℃ (Typ) |
| Cross-axis Sensitivity CS: | ±5% | Rate Range I: | ±400°/s |
| Bias Variation Over Temperature A ZRLta: | ±0.25°/h | Current Consumption Iop1: | 900μA Typ |
| High Light: | MEMS Gyro Temperature Control Sensor,2.7V - 3.6V temperature control sensor,Cross-axis sensitivity temperature control sensor |
||

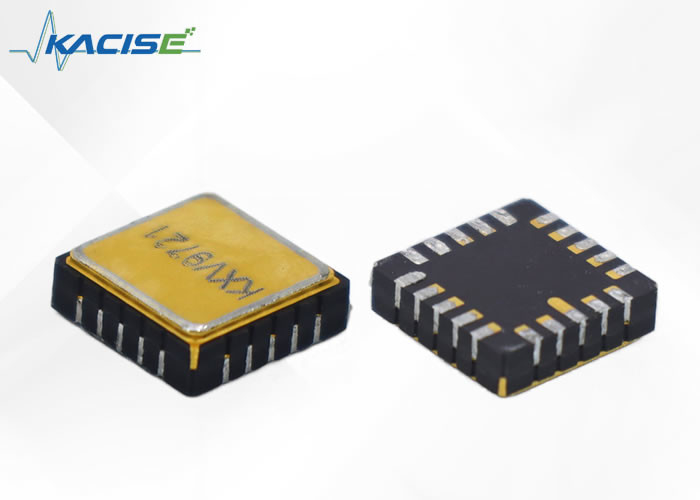

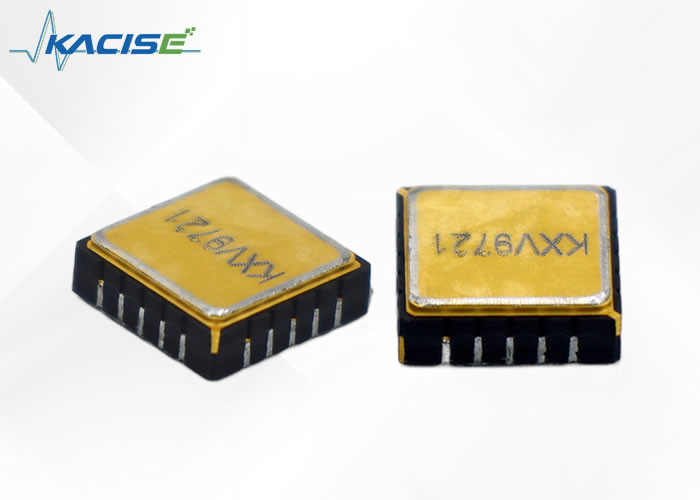

The KXV9721 possesses exceptional attributes such as superior bias output stability and low noise level. The digital quartz gyroscope is primarily based on the innovative quartz MEMS technology, which is then enhanced by the application of semiconductor processing technology.
What's more, these sensors have the added advantage of being compatible with digital output interfaces like SPI and I2C. Additionally, they permit independent settings of interface power supply voltage. This attribute ensures seamless communication with different interfaces. The low-pass and high-pass filters, which are user-selectable, offer a vast range of cut-off frequencies.
The sensors are specially designed to consume minimal power while delivering optimum performance. As a result, they can be widely employed in various fields spanning wearable devices, consumer electronics, and industrial equipment, among others.
● Excellent bias temperature coefficient 0.0016 (°/s)/°C Typ
● Low angle random walk 0.065 °/√h Typ
● Integrated user-selectable digital filter and detuning frequency eliminate filter
● SPI or I2C serial interface
● Angular rate output (16 bits or 24 bits resolution)
● Operating temperature -20 °C to +80 °C
● Embedded temperature sensor
● Low current consumption 900 μA Typ
| Parameter | KFOGD020A | Explanation | |
| Power supply parameter | |||
| Supply voltage VDDM | +2.7V~+3.6V | ||
| Supply voltage for interface VDDI | +1.65V~+3.6V | ||
| Product performance | |||
| Scale factor So | 70 LSB/(°/s) ±2% | 16 bits,Ta=+25℃ | |
| 17920 LSB/(°/s) ±2% | 24 bits,Ta=+25℃ | ||
| Scale factor variation over temperature Spt | ±3% | VDDM=3V,Ta=+25℃ reference | |
| Bias ZRL | ±1°/s (0 LSB Typ) | Ta=+25℃ | |
| Bias variation over temperature A ZRLta | ±0.25°/h | -10℃~+50℃,Ta=+25℃ reference | |
| Bias variation over temperature B ZRLtb | ±1°/h | -20℃~+80℃,Ta=+25℃ reference | |
| Bias temperature coefficient ZRLs | 0.0016(°/s)/℃ (Typ) | VDDM = 3v,Average of absolute value,ΔT=1℃ | |
| Rate range I | ±400°/s | ||
| Non-linearity NI | ±0.5%FS | Ta=+25℃ | |
| Cross-axis sensitivity CS | ±5% | Ta=+25℃ | |
| Current consumption Iop1 | 900μA Typ | ||
| Sleep current Iop3 | 3μA Typ | ||
| Noise density Nd | 0.0015 (°/s)/√Hz | @ 10Hz, LPF default setting | |
| Angle random walk N | 0.065 °/√h | ||
| Environment | |||
| Operating temperature TOPR | -20℃～+80℃ | ||
| Storage temperature TSTG | -40℃～+85℃ | ||
Dimensions
Our technologies cover a wide range of applications, including anti-vibration and attitude control for industrial settings, as well as motion detection for human machine interface. We also specialize in developing solutions for wearable devices and medical motion detection equipment.
To ensure optimal performance, we design our products to be stable on various platforms, including optical, photography and other platforms. At the core of our solutions are our inertial measurement instruments, which provide accurate and reliable data for a wide range of applications.
Our Electronic Gyroscope Sensor is designed with precision to provide reliable performance for your applications. Our support includes detailed product documentation, an extensive online knowledge base, and troubleshooting guides to help you resolve any issues you may encounter.
We are committed to the satisfaction of our customers and strive to provide exceptional after-sales support. Should you have any feedback or suggestions, we welcome your input as it helps us to continuously improve our products and services.
Product Packaging:
The electronic gyroscope sensor will be carefully packaged to ensure its safety during shipping. The product will be packed in a sturdy cardboard box with bubble wrap and foam inserts to prevent any damage from impact or rough handling. The product will also be sealed in a plastic bag to protect it from moisture and dust.
Shipping:
Our standard shipping method is through reputable courier services. The shipping process will take 3-5 business days within the United States and 7-10 business days for international shipments. Customers will receive a tracking number through email once the product has been shipped.
