| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KLCG50 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Storage Temperature: | -55°C To +100°C | Bias Variation Over Temperature: | 8~20°/sec. |
|---|---|---|---|
| Input Voltage: | +5.0 Vdc | Vibration Operating: | 5 Grms |
| Non-Linearity(% Full Range): | < 0.05% | Scale Factor(Temperature Sensor): | 6.25 MV/°C Typical |
| Output Voltage At 0°C(Temperature Sensor): | +424 MV Typical | G Sensitivity(Typical): | < 0.05°/sec/g |
| High Light: | Precision Electronic Gyroscope Sensor,Low Bias Variation Electronic Gyroscope Sensor,5 Vdc Gyroscope Sensor |
||

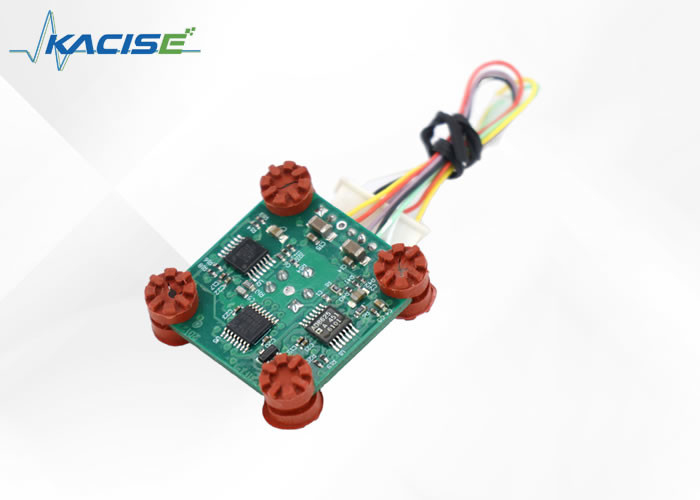

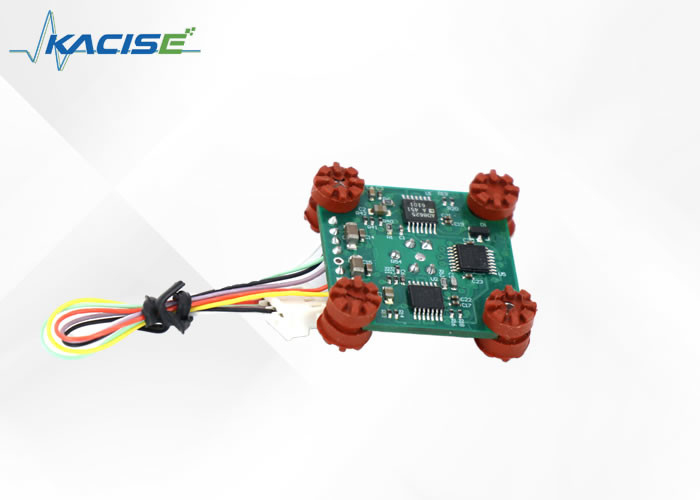

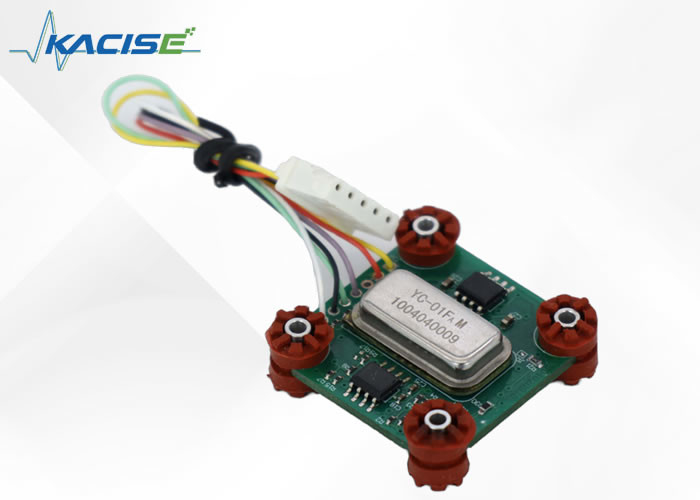

The KLCG50, also known as the Low Cost Gyro 50, is an innovative product that offers a MEMS (micro-electro-mechanical System) single-axis angular velocity sensor on a small PC board. By utilizing this advanced technology, the sensor is a complete unit that requires only one DC voltage input to measure the angular rate.
The KLCG50 is ideal for embedded applications where installation versatility is required. Its unit price is low, making it an affordable option for various businesses and industries. It also offers robustness, which is essential for industries that require sensors that can sustain harsh environments. Despite its low price, the KLCG50 also provides performance characteristics that match more expensive instrument-grade rate sensors.
If you're looking for a reliable and cost-effective sensor that offers excellent performance, the KLCG50 is the perfect option. Incorporating this sensor into your products or applications will provide long-term benefits that set your business or industry up for success.
● Proven MEMS Technology
● DC Voltage Output
● Wide Bandwidth
● Analog Voltage Output
● Low Power Consumption
● High Reliability
● Wide Operating Temperature Range
● Small Size
● Fast Start-Up
● DC in DC out
● Temperature Sensor Output
| Parameter | KLCG50-00020-100 | KLCG50-00100-100 | KLCG50-00250-100 | KLCG50-00500-100 |
| Power Requirements | ||||
| Input Voltage | +5.0 Vdc | |||
| Input Current | < 8 mA @ +5.0 Vdc | |||
| Performance | ||||
| Standard Range Full Scale | ± 20°/sec. | ± 100°/sec. | ± 250°/sec. | ± 500°/sec. |
| Scale Factor Calibration(at 22°C) | 50 mV/°/sec ± 15% | 16 mV/°/sec ± 15% | 6.4 mV/°/sec ± 15% | 3.2 mV/°/sec ± 15% |
| Scale Factor over Temperature | < 0.1%/°C | |||
| Bias Calibration(at 22°C) | +2.5 Vdc ± 0.6 Vdc | +2.5 Vdc ± 0.6 Vdc | +2.5 Vdc ± 0.6 Vdc | +2.5 Vdc ± 0.6 Vdc |
| Bias Variation over Temperature | 10°/sec. | 8°/sec. | 10°/sec. | 20°/sec. |
| G Sensitivity(Typical) | < 0.05°/sec/g | |||
| Start-Up Time(Typical) | < 2.0 sec. | |||
| Bandwidth(-3 dB) | > 50 Hz | |||
| Non-Linearity(% Full Range) | < 0.05% | |||
| Output Noise(DC to 100Hz) | ≤ 0.005°/sec./√ Hz | ≤ 0.005°/sec./√ Hz | ≤ 0.006°/sec./√ Hz | ≤ 0.01°/sec./√ Hz |
| Scale Factor(Temperature Sensor) | 6.25 mV/°C Typical | |||
| Output Voltage at 0°C(Temperature Sensor) | +424 mV Typical | |||
| Environments | ||||
| Operating Temperature | -40°C to +85°C | |||
| Storage Temperature | -55°C to +100°C | |||
| Vibration Operating | 5 grms | |||
| Vibration Survival | 10 grms | |||
| Shock | 500g PK ½ sine 2msec | |||
| Weight | < 0.4 oz. [12 grams] | |||
At our company, we specialize in a variety of services aimed at improving the functionality and safety of various systems. One area that we excel in is vehicle instrumentation. Our team of experts can design and implement instrumentation systems that provide accurate and reliable data to drivers or operators.
We also specialize in robotics. Our team has years of experience designing and programming robots for a variety of applications. Whether it's for manufacturing or research purposes, we have the skills and knowledge to create robots that meet specific needs.
In addition, we offer flight testing services. This involves testing the performance of aircraft in various conditions and situations. Our team has extensive experience in this area and can provide valuable insights into the safety and functionality of aircraft.
We also have expertise in guidance and control systems. Our team can design and implement systems that ensure precise control over various vehicles or systems. This can include anything from unmanned aerial vehicles to missile guidance systems.
Another area of our expertise is short-term navigation. Our experts can develop and implement navigation systems that provide real-time data and accurate positioning information, crucial for a variety of applications.
Finally, we specialize in ride control and stabilization. Our team can design and implement systems that minimize vibrations and ensure a smooth ride for passengers or operators. This is particularly important for vehicles or systems where stability is critical.
Our Electronic Gyroscope Sensor is designed to provide precise motion sensing in a variety of applications. Our product technical support and services are dedicated to ensuring that you can integrate and use our gyroscope sensor effectively in your projects.
Technical Support:
- Comprehensive online documentation: Access detailed product specifications, integration guides, and troubleshooting articles to assist you with any technical queries regarding our Electronic Gyroscope Sensor.
Services:
- Email support: Reach out to our dedicated support team for personalized assistance with any technical issues you may encounter.
We are committed to providing you with the support you need to utilize our Electronic Gyroscope Sensor to its fullest potential.
Product Packaging:
The Electronic Gyroscope Sensor comes securely packaged in an anti-static bag to prevent any electrostatic discharge during handling. The bag is then placed in a custom-fit foam insert that snugly holds the sensor in place, ensuring maximum protection against physical shocks and vibrations. This foam is encased in a sturdy cardboard box which is sealed and labeled with the product information and handling instructions. The packaging has been designed to be compact while offering the best possible protection for the sensitive electronics inside.
Shipping:
Once the Electronic Gyroscope Sensor is packaged, it is ready for shipping. The boxed product is placed in a secondary, larger cardboard box with additional cushioning material to fill any void space, minimizing movement during transit. Fragile stickers are applied to the outer box to alert couriers that the contents require careful handling. The package is then sealed with heavy-duty packing tape and dispatched using a reliable shipping service that provides a tracking number. Customers will receive their tracking information via email to monitor their package's journey until delivery.
