| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | certificate of explosion-proof, CE |
| Model Number: | KQ3GY |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Pieces per Week |
| Threshold: | ≤0.005 | Input Voltage: | 5±0.2 Vdc |
|---|---|---|---|
| Measurement Range: | ±100 | Random Vibration: | 6.06g Rms |
| Bandwidth: | ≥140 | Bias Stability: | ≤20 |
| Scale Factor Nonlinearity: | ≤200 | Random Walk: | ≤0.25 |
| High Light: | Threshold 0.005 Electronic Gyroscope Sensor,140 Bandwidth Electronic Gyroscope Sensor |
||

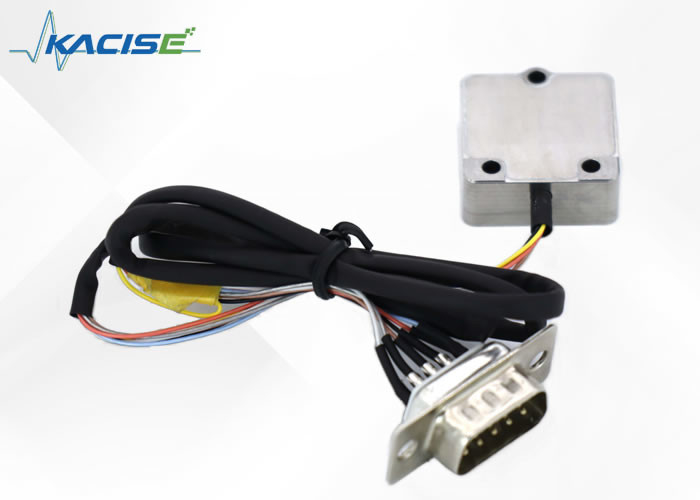

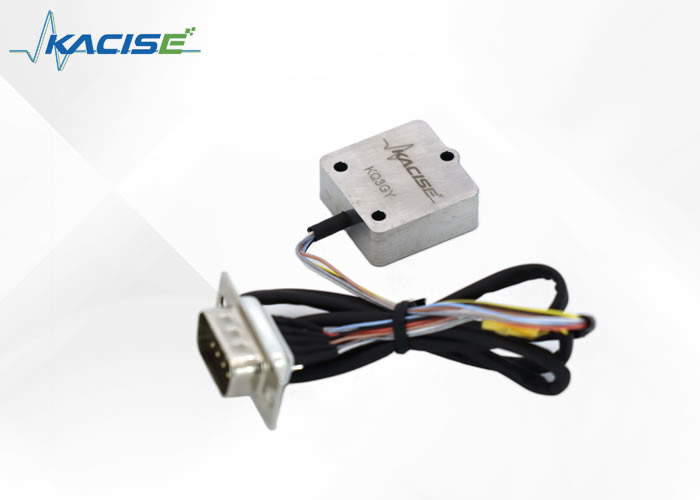

The KQ3GY gyroscope is an advanced product that is made possible through the use of quartz MEMS technology. This cutting-edge technology allows the gyroscope to simultaneously sense the angular velocities of multiple axes, which can be configured according to the specific needs of the customer. The KQ3GY then outputs digital information through its serial port, providing quick and reliable data to the user.
MEMS, or micro-electro-mechanical systems, is a technology that integrates a wide range of micro-devices and systems into one. MEMS devices include micro-sensors, micro-actuators, micro-mechanical structures, signal processing and control circuits, high-performance electronic integrated devices, interfaces, and communications. These independent intelligent systems are efficiently mass-produced and are generally only a few millimeters in size, with structures that are typically a few microns or even nanometers in size.
MEMS technology has led to the development of many useful products, including accelerometers, optical sensors, pressure sensors, gyroscopes, humidity sensors, and gas sensors. With innovative MEMS products and their integration capabilities, consumers can enjoy the benefits of highly efficient and reliable systems that are easy to use and maintain.
● Large-scale production
● Short startup time
● Wide operating temperature range
● Low power consumption
● High reliability
● Small size and light weight
● Serial output
| Parameter | KQ3Gy |
| Power Requirements | |
| Input Voltage | 5±0.2 Vdc |
| Input Current | < 50 mA |
| Performance | |
| Measurement range | ±100 |
| Bias | ≤0.03 |
| Bias stability | ≤20 |
| Bias repeatability | ≤20 |
| Scale factor nonlinearity | ≤200 |
| random walk | ≤0.25 |
| Threshold | ≤0.005 |
| Bandwidth | ≥140 |
| Acceleration correlation | ≤0.01 |
| Cross coupling | ≤1 |
| Environments | |
| Working temperature | -40℃～+65℃ |
| Random vibration | 6.06g rms |
Dimensions:
Unit:mm
There are various technical terms used in the field of aviation. One such term is airborne instrument measurement , which refers to the use of instruments that are carried on board aircraft to measure various parameters like airspeed, altitude, and direction. These measurements provide critical information for navigation and safety during flight.
Another term related to aviation technology is robot , which refers to an automated machine that performs specific tasks without human intervention. Robots are used in the aerospace industry for various purposes, including assembly, inspection, and maintenance.
Automated testing involves the use of software tools to execute test cases and compare actual results with expected results. This process is commonly used in the development of flight control software and other aviation systems to ensure they are functioning properly.
The attitude reference system is a critical component of aircraft control. It provides pilots with real-time information about the aircraft's orientation and position in the sky. This data is used to adjust the aircraft's control surfaces and maintain stability.
The control system of an aircraft is responsible for managing the flight path and maintaining stability. It is a complex system that includes a variety of sub-systems, such as the flight control computer, actuators, and sensors. These components work together to ensure that the aircraft maintains proper altitude, speed, and direction.
Flight testing is an essential part of the aviation industry. It involves the systematic and controlled testing of aircraft and their sub-systems to verify that they are operating as intended. Flight testing is critical to ensuring that aircraft are safe, reliable, and efficient.
Platform stability is a fundamental requirement for aircraft. Stability is achieved by designing the aircraft with features such as a low center of gravity, proper weight distribution, and effective control surfaces. These design considerations are critical to aircraft performance and safety.
Our Electronic Gyroscope Sensor is designed to provide precise motion sensing in a variety of applications. Our product technical support and services are dedicated to ensuring that you can integrate and use our gyroscope sensor effectively in your projects.
Technical Support:
- Comprehensive online documentation: Access detailed product specifications, integration guides, and troubleshooting articles to assist you with any technical queries regarding our Electronic Gyroscope Sensor.
Services:
- Email support: Reach out to our dedicated support team for personalized assistance with any technical issues you may encounter.
We are committed to providing you with the support you need to utilize our Electronic Gyroscope Sensor to its fullest potential.
Product Packaging:
The electronic gyroscope sensor product will be packaged in a sturdy cardboard box to ensure safe transportation. The product will be securely placed in the center of the box with ample cushioning material to prevent any damage during shipping. The box will also include a user manual and any necessary cables or accessories.
Shipping:
The product will be shipped through a reliable courier service. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will also be provided to the customer upon placing the order. The package will be insured to cover any damages during transit and a tracking number will be provided to the customer to track the delivery status of their order.
