Precision 4~20mA Output Fluid Level Meter with HART Communication and IP67 Protection

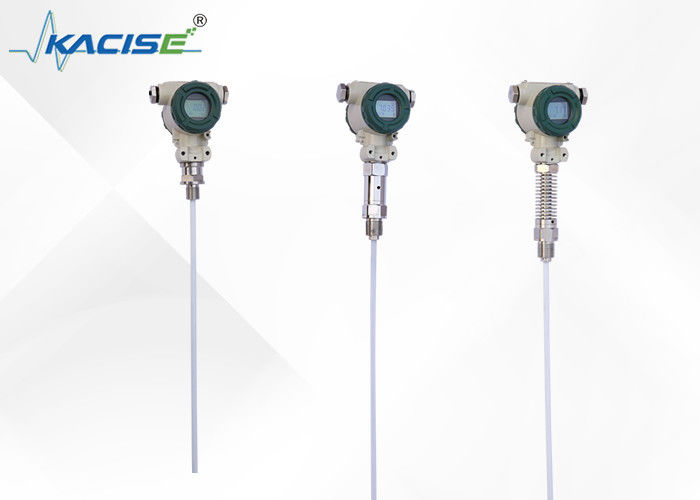

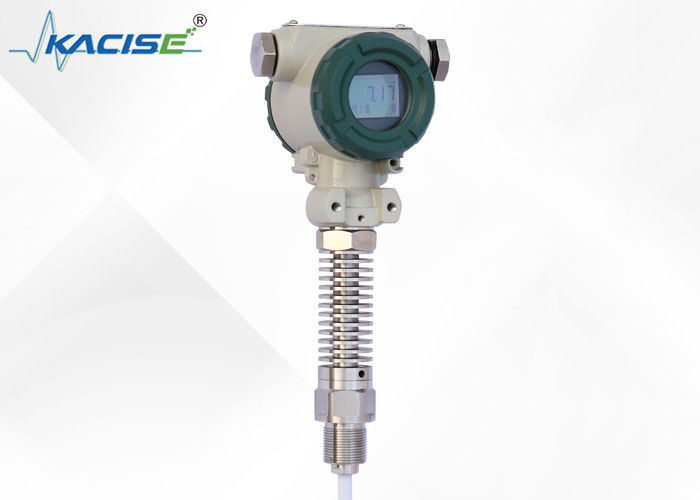

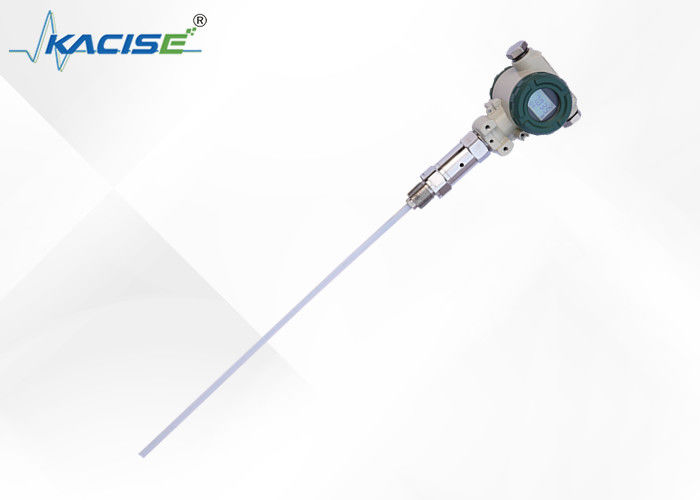

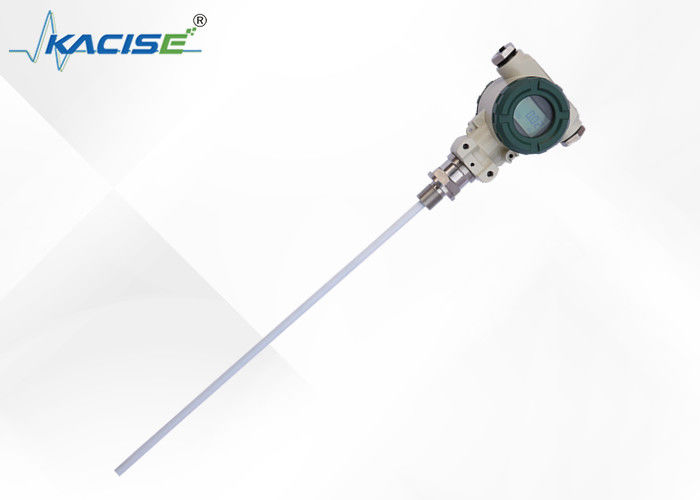

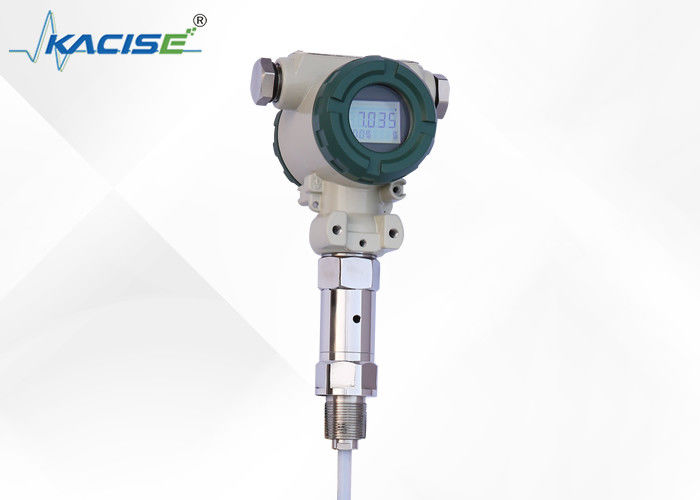

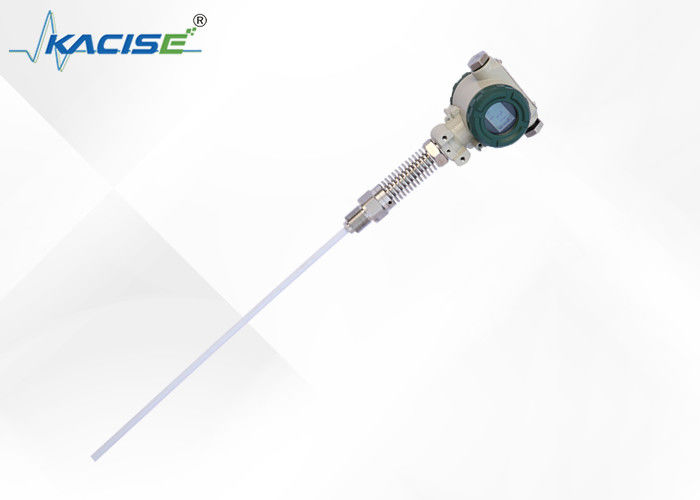

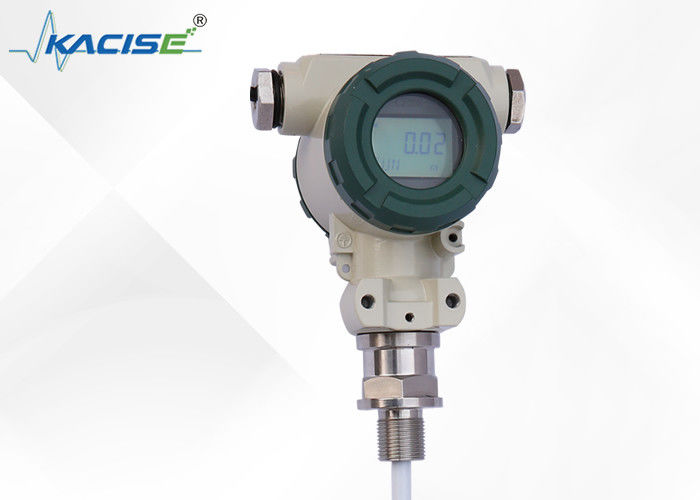

The KCF600 series capacitive level transmitter is designed to continuously detect liquid in harsh conditions, such as high temperature and pressure, high corrosion, and potential crystallization or blockages. It is ideal for measuring water, acid, and alkali solutions, as well as monitoring water levels in boilers. The machine has no movable or flexible parts and boasts features such as impact resistance, easy installation, high reliability, high precision, and reasonable cost.

In many applications, this transmitter can replace traditional float type, input type, and differential pressure type level transmitters. This is made possible by advanced RF capacitive sensing circuitry, which is precisely compensated for temperature and linearity. The output is then transformed into a standard electrical signal typically between 4-20 mA. The transmitter also offers options for HART, CANBUS, and 485 communication protocols for system configuration.

The KCF600 series also features a useful self-calibration feature for easy maintenance and adaptation to different situations. With the help of two keys, users can perform "zero" and "range" automatic calibrations to ensure accurate readings.

• Designed for continuous detection of liquid in harsh conditions
• No movable or flexible parts
• Impact-resistant and easy to install
• Highly reliable and accurate
• Competitively priced
• Advanced RF capacitive sensing circuit
• Precisely compensated for temperature and linearity
• Output transformed into standard electrical signal (4-20mA)
• Multiple communication protocol options (HART, CANBUS, 485)
• Self-calibration feature for easy maintenance and adaptation

Simple structures, high reliability, minimal maintenance:

The device is designed with simple structures, without any movable or elastic components. This ensures high reliability and minimal maintenance requirements, even under normal situations. Regular medium and small repairs are not necessary, making it an efficient and cost-effective investment.

Multiple signal output options:

The device is equipped with a variety of signal output options, facilitating easy integration into different system configurations. This allows for flexibility and customization, catering to the unique needs of each user.

Accurate measurements, unaffected by various factors:

The device is convenient for use in high temperature and high pressure containers. It is not affected by the temperature and specific gravity of the measured liquid, as well as the shape of the container or influence of pressure. The measured data is accurate and reliable.

Corrosion-resistant design:

The device is particularly suitable for the measurement of acid, alkali and other corrosive liquids. It is designed to resist corrosion, ensuring durability even in challenging environments.

Overcurrent, overvoltage and power polarity protection:

The device comes with perfect protection against overcurrent, overvoltage and power polarity. This ensures safety and peace of mind for the user.

• Detection range: 0.01~30 m
• Accuracy: level 0.2, level 0.5
• Pressure range: -0.1MPa~32MPa
• Probe temperature: -50~250 ℃
• Ambient temperature: -20~60 ℃
• Storage Temperature: -55℃～+125 ℃
• Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication
• Supply voltage: 12～28VDC (should be powered by the safety barrier)
• Fixation: Screw mounting M20×1.5,M27×2,
• Flange mounting DN25,DN40,DN50.Special specifications can be customized
• Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
• Long-term stability: ≤0.2%FS/Year,
• Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)
• Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5
• Protection:IP67
• Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH

The cable and rod level transmitter has a variety of fixed ways to adapt to different site conditions. When the site cannot provide the process facilities such as the M20 × 1.5 female thread or flange, you can choose three methods of installation (wall-mounted, horizontal pipe rack and vertical tube rack, which make you handy in the on-site installation.(With pictures)

When measuring the media of the larger mobility, the user can choose the weight attachment in order to prevent the sensor form violent swing, which can play the role of the stability of the sensor. The heavy objects must be put into the bottom of the container when adding weight, so as not to break the sensor’s wire.

When the site conditions are bad, the user should use the sensor shield to protect the sensor in order to avoid foreign body damage or affect the measurement accuracy.

If the containers are not metal, we need to put the transmitter enclosure with a wire access to the bottom of the container when using a KCF600 rod level transmitter; otherwise the measurement is not accurate.

This product has been calibrated at the factory; he need for field adjustment may take the following methods:

Site-zero----- When the liquid level is located in the lowest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "Z" key click, the output current is automatically adjusted to 4mA.

Site - filled ------ When the liquid level at the highest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "S" key click ,the output current is automatically adjusted to 20mA.

When the liquid level in the next limit, use the screwdriver slowly rotating "Z" potentiometer, observe the ammeter readings close to 4mA

When the liquid level in the upper limit, use the screwdriver slowly rotating "S" potentiometer and observe the ammeter readings close to 20mA

And operate it for 2-3 times more, until the zero and span were accurate 4mA and 20mA. After adjustment, tighten the cover of the transmitter should be.

1. Products supply with product certification and manual, which have product number, technical parameters, wiring diagram, and the date of manufacture, please check to avoid the mistake.
2. The installation should be based on the product connection and thread types, check the site interface is consistent with the product interface or not. Tighten the threaded connection slowly, pay attention to sealing, the torque cannot be directly added to the transmitter housing and can only be added to the six-party transmitter interface.
3. Wiring should be strictly in accordance with company instructions.
4. This product is a precision Energy conversion instrument, prohibit disassemble, collision, fall and hard rejection to play.
5. Transmitter Work immediately after power on, but output could be stability after warming up for 30 minutes.
6. Abnormal use ,turns off the power, check, or contacts our technical department directly.7. Transportation, storage should be to restore the original packaging and stored in a cool, dry, ventilated warehouse.
7. The installation process should pay attention to avoid the breaking of the skin of the sensor wire.
8. When installing the sensor wire, the distance from pool wall should be at least 10CM above, otherwise the measurement would be not accurate.
9. The grounding line of the whole PTFE structure and the rod level must be conduct with measured media; otherwise the measurement would be not accurate.
10. The installation site should take effective lightning protection measures.
11. The enclosures of any transmitter in this series must be grounded; grounding resistance should be less than 4Ω.
12. Safety barrier should be made explosion-proof certification; its installation requirements should follow the requirements of instructions.
13. When the transmitter is used to "0" zone to the barrier-powered power transformers must meet the requirements of GB3836.4-2000 NO. 8.1.

The Kacise Fluid Level Meter is a versatile product that can be used in many different scenarios. It is commonly used in the automotive industry to measure the fuel level in vehicles. It can also be used in GPS tracking solutions to monitor the fuel level in fleet vehicles, which can help improve fuel efficiency and reduce costs.

Another application for this product is in the oil and gas industry. The Kacise Fluid Level Meter can be used as a capacitive oil level sensor to detect the level of oil in storage tanks. This can help prevent overfilling or underfilling of tanks, which can lead to costly spills or shutdowns.

In addition, this product can be used in industrial automation and control systems. It is ideal for monitoring the level of liquids in tanks or containers, and can be used in a variety of industries such as chemical, pharmaceutical, and food and beverage.

The Kacise Fluid Level Meter has a minimum order quantity of 2 and is packaged in cartons. Delivery time is 5 working days and payment terms require 100% payment in advance. The output signal is 4～20mA,4 ~ 20mA With HART Communication/485/CAN Bus Communication.

In summary, the Kacise Fluid Level Meter is a high-quality product that offers accurate and reliable performance. Its versatility makes it suitable for use in many different industries and applications, including capacitance fuel level sensor used in GPS tracking solutions and as a capacitive oil level sensor.

Our Fluid Level Meter product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is always ready to assist with installation, setup, calibration, trouble, and maintenance of the product. We also offer training and documentation to help users operate the product with ease. Additionally, we provide repair and replacement services for any faulty or damaged components. Our goal is to provide customers with reliable and accurate fluid level measurement solutions that meet their unique needs.
