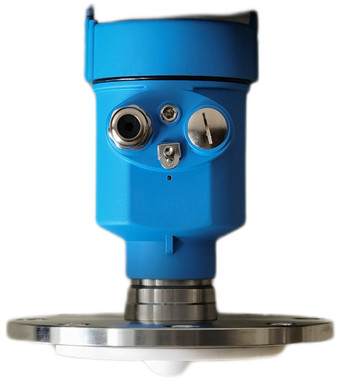

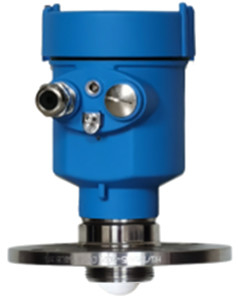

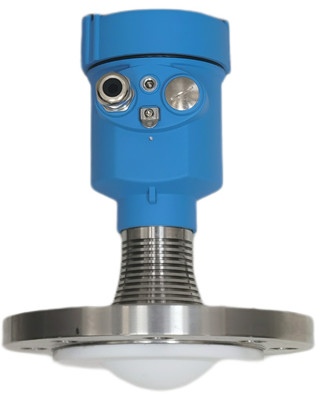

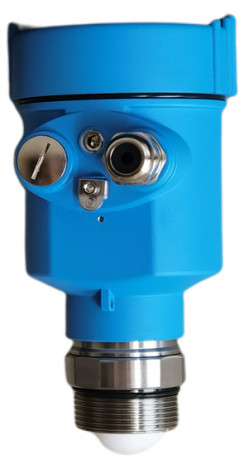

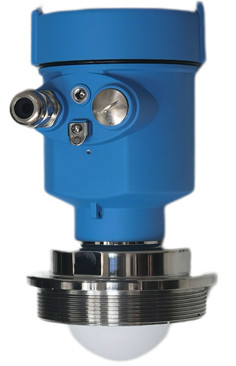

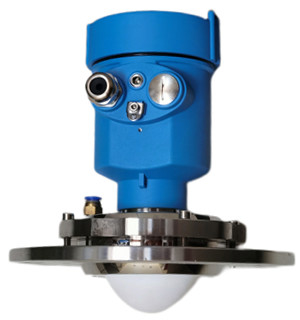

Name: Smaller Launch Angles And Multiple Measurement Modes KLD800 Series 80G Radar Level Gauge
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLD800
Price: 400.00 USD
Availability: InStock

Home > products > Radar Level Transmitter >

Smaller Launch Angles And Multiple Measurement Modes KLD800 Series 80G Radar Level Gauge

80G Radar Level Gauge

Smaller Launch Angles Radar Level Gauge

Multiple Measurement Modes Radar Level Gauge

Place of Origin:

China (Mainland)

Brand Name:

Kacise

Certification:

certificate of explosion-proof, CE

Model Number:

KLD800

Request A Quote

Product Details

Power Supply:

Two-wire /DC24V

Center Frequency:

80GHz

Protection Class:

IP67

Casing:

Aluminum/plastic/stainless Steel

Antenna Material:

PTFE

Launch Angle:

3°~8°

Measuring Range:

0.1m~10/20/30/60/100m

Highlight:

80G Radar Level Gauge

Smaller Launch Angles Radar Level Gauge

Multiple Measurement Modes Radar Level Gauge

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T,Western Union,MoneyGram

Supply Ability

1000 Pieces per Week

Smaller Launch Angles And Multiple Measurement Modes KLD800 Series 80G Radar Level Gauge

Get Best Price

KLD-2604 RS485 Modbus Strong Dust Radar Level Meter 4 - 20mA with measuring Range 80m

Get Best Price

Radar Water Level Sensor With A Power Supply Voltage Range Of 9 - 24V And A Measuring Range Of 10 Meters Is Used For Monitoring The Water Level Of Reservoirs

Get Best Price

KLD802 Radar Level Sensor With Non Contact PTFE Lens Antenna For Continuous Level Measurement

Get Best Price

86--17719566736

Contact Now

Product Description

Smaller Launch Angles And Multiple Measurement Modes KLD800 Series 80G Radar Level Gauge

Product Specifications

Attribute	Value
Power supply	two-wire /DC24V
Center frequency	80GHz
Protection class	IP67
Casing	aluminum/plastic/stainless steel
Antenna material	PTFE
Launch angle	3°~8°
Measuring range	0.1m~10/20/30/60/100m

Measurement Principle

The KLD800 series 80G radar level gauge utilizes frequency modulated continuous wave (FMCW) technology. The antenna emits high-frequency FM radar signals with linearly increasing frequency. After reflection by the measured medium, the same antenna receives the signal. The frequency difference between transmitted and received signals is proportional to the distance, which is calculated through fast Fourier transform (FFT) analysis of the echo spectrum.

Key Features

Millimeter wave radar with ±2mm accuracy and minimum 0.05m blind zone
Compact antenna design suitable for diverse measurement conditions
Multiple lens antennas with smaller launch angles for concentrated energy and stronger echo signals
Enhanced penetration capability for reliable operation with adhesion and condensation
Wider dynamic signal range for stable measurement of low dielectric constant media
Multiple measurement modes including fast response radar mode

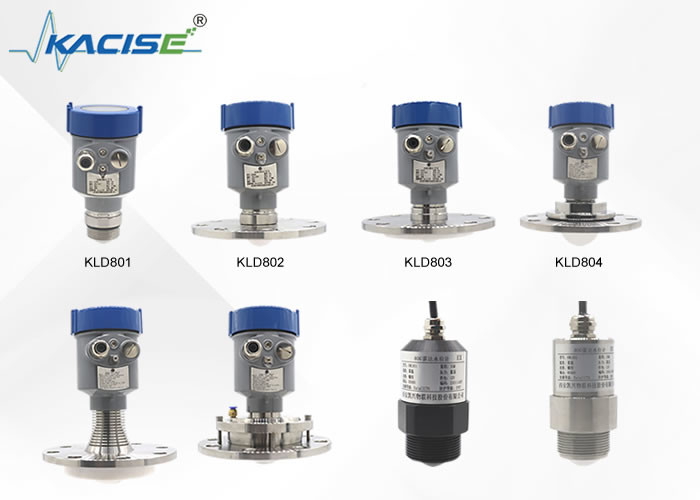

Model Variants

KLD801

Medium: liquid, non-corrosive
Measuring range: 0.05m～10/20/30/60/100m
Process connection: G1½A / 1½NPT thread / flange ≥ DN40
Process temperature: -40～80℃
Process pressure: -0.1～0.3 MPa
Antenna size: 32mm lens antenna
Accuracy: ±1mm

KLD802

Medium: non-corrosive liquid, slightly corrosive liquid
Measuring range: 0.1m~10/20/30/60/100m
Process connection: flange ≥ DN80
Process temperature: -40～110℃
Process pressure: -0.1～1.6MPa
Antenna size: 32mm lens antenna
Accuracy: ±1mm

KLD803

Medium: strong corrosive liquid, steam, foam
Measuring range: 0.1m～10/20/30/60/100m
Process connection: flange ≥ DN50
Process temperature: -40～130℃
Process pressure: -0.1～2.5MPa
Antenna size: 34mm lens antenna
Accuracy: ±1mm

KLD804

Medium: non-corrosive liquid, slightly corrosive liquid
Measuring range: 0.1m~10/20/30/60/100m
Process connection: flange ≥ DN50
Process temperature: -40～130℃
Process pressure: -0.1～1.0MPa
Antenna size: 76mm lens antenna
Accuracy: ±1mm

KLD805

Medium: strong corrosive liquid, steam, foam, high temperature and high pressure
Measuring range: 0.1m~10/20/30/60/100m
Process connection: flange ≥ DN80
Process temperature: -40～200℃
Process pressure: -0.1～2.5MPa
Antenna size: 76mm lens antenna
Accuracy: ±1mm

KLD806

Medium: solid, storage container, process container, strong dust application
Measuring range: 0.3m~10/20/30/60/100m
Process connection: flange ≥ DN100
Process temperature: -40～110℃
Process pressure: -0.1～0.3MPa
Antenna size: 76mm lens antenna
Accuracy: ±1mm
