External Level Gauges for Industrial Horizontal Tank Monitoring
External level gauges supporting 2-wire or 4-wire output provide reliable industrial horizontal tank level monitoring solutions with flexible integration options.
Product Overview

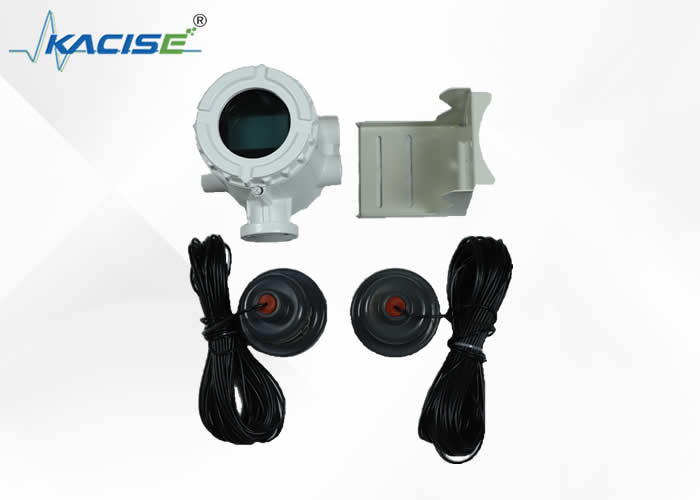

These precision-engineered external level gauges are designed for industrial horizontal tank level monitoring applications. Available with either 2-wire or 4-wire output configurations, they offer exceptional flexibility for system integration and data transmission. Built with high-quality materials and advanced technology, these gauges deliver accurate and reliable liquid level measurements in demanding industrial environments.
The robust construction ensures durability against temperature fluctuations, vibrations, and corrosive conditions. With user-friendly installation and operation, these gauges seamlessly integrate into industrial processes, enhancing operational efficiency and safety standards.
Technical Specifications
| Parameter |
Two-wire |
Four-wire |
| Measuring Range |
3m, 5m, 10m, 15m, 20m, 30m, 50m |
| Display Resolution |
1mm |
| Short-Term Repetition |
1mm |
| Error |
±1‰FS, ±2‰FS, ±5‰FS |
| Temperature Range |
-45℃~+100℃ |
| Accuracy |
1℃ |
| Output |
4～20mA (Maximum load 500Ω), HART, Modbus |
| Power Supply |
DC24V (22V~36V) |
DC24V (18V~30V) |
| Power Consumption |
< 1 W |
| Communication |
RS-485, Infrared, HART, Modbus |
| Relay Alarm Output |
AC 250V 5A, DC 30V 5A |
| Ambient Temperature (Host) |
-40℃~+80℃ |
| Ambient Temperature (Display) |
-20℃~+70℃ |
| Ambient Temperature (Sensor) |
-50℃~+100℃ |
| Ambient Humidity |
(0%～95%)RH |
| Explosion-proof Rating |
ExdⅡCT6 |
| Protection Rating |
IP65, IP67 |
| Display |
128*64 LCD |
| Blind Area |
< 30mm Under ideal working conditions |
| Electrical Interface |
M20X1.5 (F), 1/2 NPT (F) |
| Cable Length |
5m, optional |
| Host Size / Weight |
158mmx122mmx148mm, 2kg, base hole dia M5 |
Product Dimensions

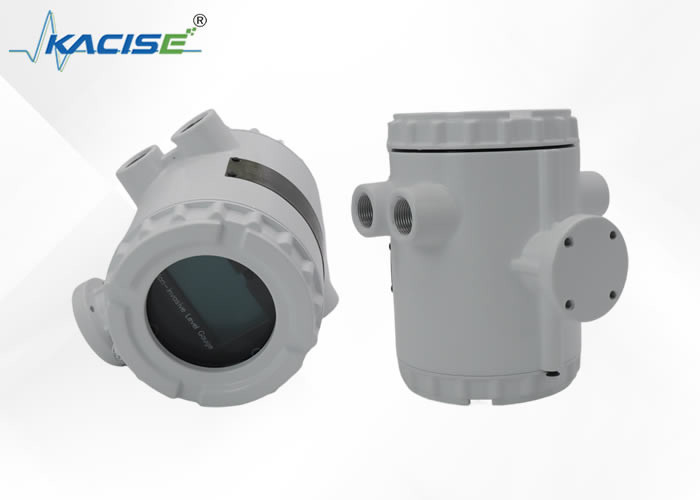

Host Dimension

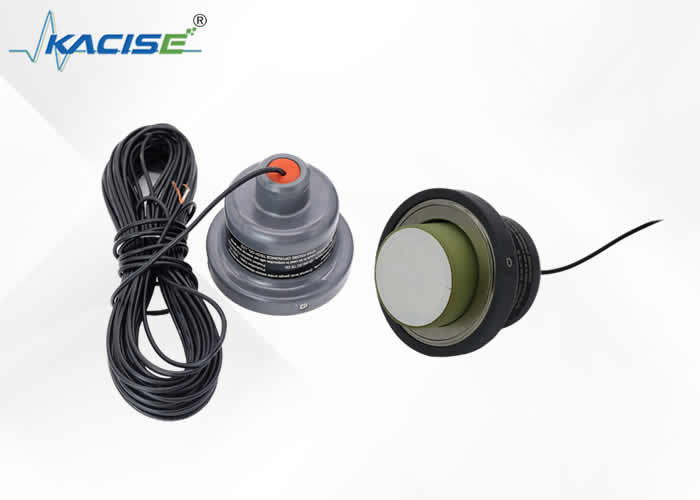

Sensor Probe Dimension
Installation Applications
Horizontal Tank Installation
Vertical Tank Installation
Spherical Tank Installation
Production Process
Packaging & Shipping
Manufacturer Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, ensuring our products conform to international standards.
With over 10 years of specialization in manufacturing pressure, level and flow measuring instruments, we have experienced technical and management personnel. Through continuous improvement efforts, we have become a professional measuring instrument manufacturer and solution provider.
Kacise sensors are exported to America, Spain, Australia, Chile and 20 other countries and regions, receiving favorable feedback. We maintain "reasonable prices, efficient production time and good after-sales service" as our core principles, seeking cooperation with customers for mutual development.
Our Services
- Your inquiry will be replied within 24 hours
- Well-trained and experienced staff answering all inquiries in fluent English
- OEM & ODM services available for custom design requirements
- Distributorship offered for unique designs and current models
- Protection of your sales area, design ideas, and private information
- Quantity-based discounts available
Customer Feedback
Frequently Asked Questions
What information is needed to choose the suitable external level gauge model?
Please provide: Range, medium, temperature, and tank type (horizontal tank, vertical tank, spherical tank, etc.) for quick model selection and quotation.
Are you a trade company or manufacturer?
We are an ISO-approved manufacturer specialized in level and flow measuring instruments. OEM & ODM services are available.
What is your minimum order quantity (MOQ)?
Sample orders are acceptable to start our cooperation.
What is your delivery timeline?
Delivery is approximately 3-15 working days after payment receipt.
What are your payment terms?
We support T/T, PayPal and Trade Assurance. For mass production orders: 30% deposit in advance, 70% balance before shipment.
What is Trade Assurance payment method?
A free service protecting your orders from payment to delivery. We have USD104,000.00 caution money to assure your orders.
Do you provide warranty?
Yes, we offer a 12-month warranty on our products.
