External attached level gauges with HART output are used for industrial horizontal tank level monitoring
Product Overview
The External Attached Level Gauges with HART output are a highly advanced and reliable solution for industrial horizontal tank level monitoring. These gauges are meticulously engineered to provide accurate and continuous measurements. The HART output enables seamless communication and integration with other control systems, allowing for efficient data transfer and analysis. With a robust and durable design, they can withstand the harsh industrial environment, including extreme temperatures, corrosive substances, and vibrations. Their external attachment feature simplifies installation and maintenance, saving both time and cost. These level gauges are an essential tool for industries such as petrochemical, chemical, and manufacturing, ensuring precise control and management of liquid levels in horizontal tanks.
Technical Parameters
| Non-Intrusive Level Gauge | Two-wire | Four-wire |
| Measuring Range | 3m, 5m, 10m, 15m, 20m, 30m, 50m | |
| Display Resolution | 1mm | |
| Short-Term Repetition | 1mm | |
| Error | ±1‰FS, ±2‰FS, ±5‰FS | |
| Temperature Range | -45℃~+100℃ | |
| Accuracy | 1℃ | |
| Output | 4～20mA (Maximum load 500Ω), HART,Modbus | |
| Power Supply | DC24V (22V~36V) | DC24V (18V~30V) |
| Power | < 1 W | < 1 W |
| Communication | RS-485,Infrared, HART,Modbus | |
| Relay Alarm Output | AC 250V 5A, DC 30V 5A | |
| Ambient Temperature Host | -40℃~+80℃ | |
| Ambient Temperature Display | -20℃~+70℃ | |
| Ambient Temperature Sensor | -50℃~+100℃ | |
| Ambient humidity | (0%～95%)RH | |
| Explosion-proof | ExdⅡCT6 | |
| Protection | IP65, IP67 | |
| Display | 128×64 LCD | |
| Blind Area | < 30mm Under ideal working conditions | |
| Electrical Interface | M20X1.5 (F), 1/2 NPT (F) | |
| Cable Length | 5m, optional | |
| Host size / weight | 158mmx122mmx148mm, 2kg, base hole dia M5 | |
Level Gauge Dimension
Host Dimension
Sensor Probe Dimension
Installation diagram

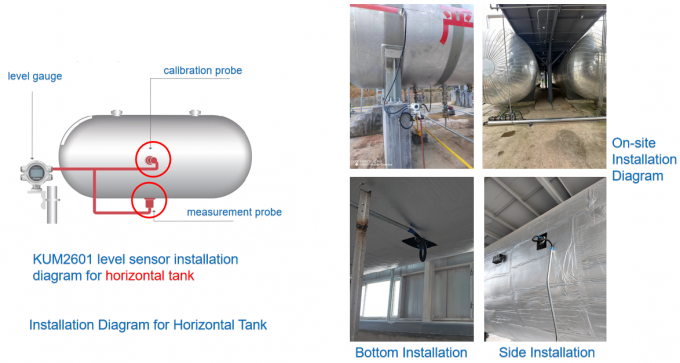

horizontal tank

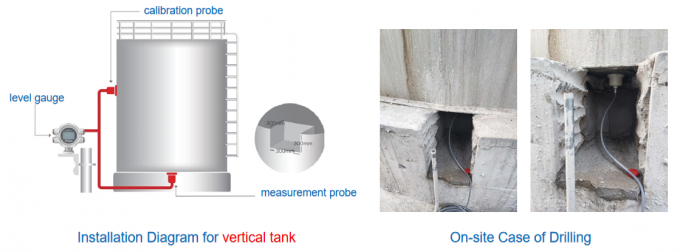

vertical tank

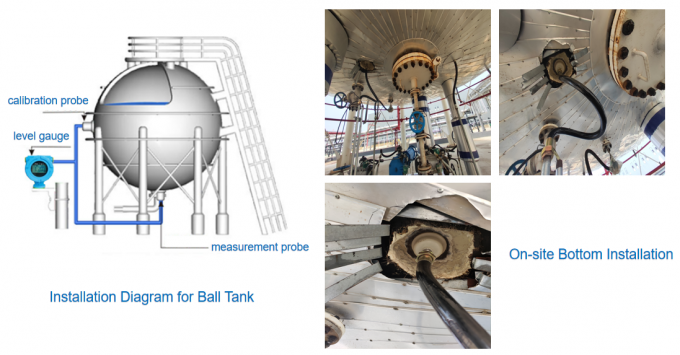

Ball Tank
