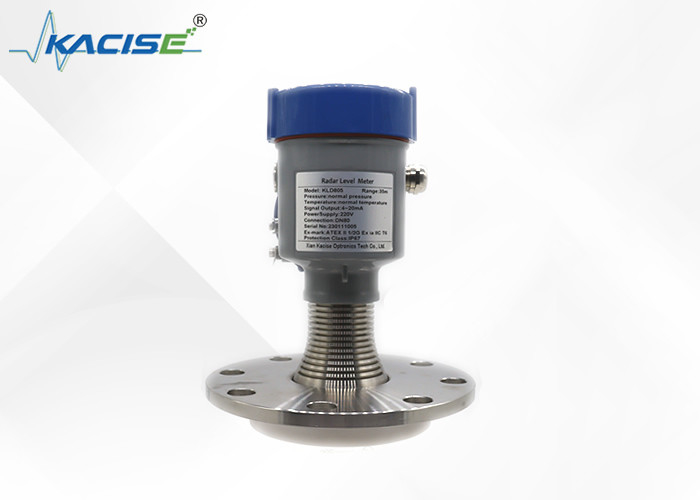

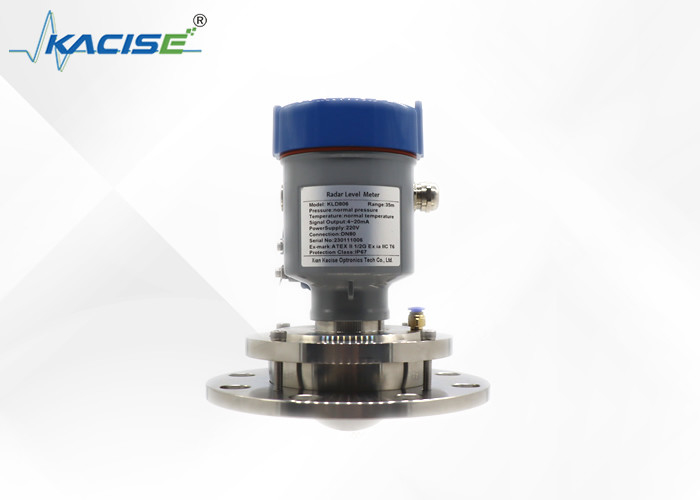

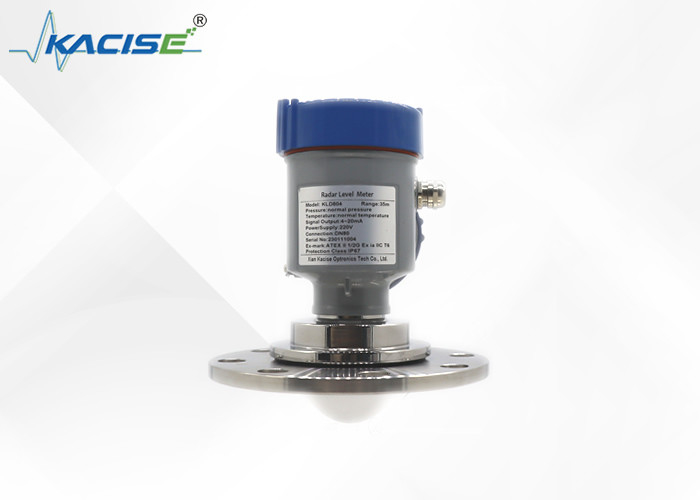

High Precision Radar Level Gauge For Industrial Process Control And Monitoring

High Precision Radar Level Gauge For Industrial Process Control And Monitoring

Industrial Process Control Level Gauge

Industrial Process Control Radar Level Gauge

High Precision Radar Level Gauge

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KLD800 Series

Chat Now
Chat Now
Product Details
Measuring Range::
0.05m~10/20/30/60/100m
Protection Class:
IP67
Center Frequency::
80GHz
Antenna Material::
PTFE
Process Pressure::
-0.1~2.5MPa
Highlight:

Industrial Process Control Level Gauge

,

Industrial Process Control Radar Level Gauge

,

High Precision Radar Level Gauge

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description
High Precision Radar Level Gauge For Industrial Process Control And Monitoring
Product Specifications
Attribute Value
Measuring range: 0.05m~10/20/30/60/100m
Protection class IP67
Center frequency: 80GHz
Antenna material: PTFE
Process pressure: -0.1~2.5MPa
Product Overview
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 0
Measurement Principle

The high precision radar level gauge utilizes advanced 80GHz microwave technology to emit and receive signals, enabling precise measurement of distance from the sensor to the target material's surface. This technology provides accurate, real-time monitoring of liquid or solid levels in industrial vessels and containers, with the capability to detect even minute changes in level.

Key Features
  • Millimeter wave radar with ±2mm measurement accuracy and minimum blind zone of 0.05m
  • Compact antenna design suitable for diverse working conditions
  • Multiple lens antenna options with focused energy and strong echo signals
  • Excellent penetration capability for use in adhesion and condensation conditions
  • Wide dynamic signal range for stable measurement of low dielectric constant media
  • Multiple measurement modes including fast response radar mode
Model Specifications
KLD801
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 1

Medium: Liquid, non-corrosive

Measuring range: 0.05m~10/20/30/60/100m

Process connection: G1½A / 1½NPT thread / flange ≥ DN40

Process temperature: -40~80℃

Process pressure: -0.1~0.3 MPa

Antenna size: 32mm lens antenna

Accuracy: ±1mm

KLD802
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 2

Medium: Non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: Flange ≥ DN80

Process temperature: -40~110℃

Process pressure: -0.1~1.6MPa

Antenna size: 32mm lens antenna

Accuracy: ±1mm

KLD803
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 3

Medium: Strong corrosive liquid, steam, foam

Measuring range: 0.1m~10/20/30/60/100m

Process connection: Flange ≥ DN50

Process temperature: -40~130℃

Process pressure: -0.1~2.5MPa

Antenna size: 34mm lens antenna

Accuracy: ±1mm

KLD804
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 4

Medium: Non-corrosive liquid, slightly corrosive liquid

Measuring range: 0.1m~10/20/30/60/100m

Process connection: Flange ≥ DN50

Process temperature: -40~130℃

Process pressure: -0.1~1.0MPa

Antenna size: 76mm lens antenna

Accuracy: ±1mm

KLD805
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 5

Medium: Strong corrosive liquid, steam, foam, high temperature and high pressure

Measuring range: 0.1m~10/20/30/60/100m

Process connection: Flange ≥ DN80

Process temperature: -40~200℃

Process pressure: -0.1~2.5MPa

Antenna size: 76mm lens antenna

Accuracy: ±1mm

KLD806
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 6

Medium: Solid, storage container, process container, strong dust application

Measuring range: 0.3m~10/20/30/60/100m

Process connection: Flange ≥ DN100

Process temperature: -40~110℃

Process pressure: -0.1~0.3MPa

Antenna size: 76mm lens antenna

Accuracy: ±1mm

Production & Quality
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 7
Packaging & Shipping
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 8
Certifications
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 9
Company Information
High Precision Radar Level Gauge For Industrial Process Control And Monitoring 10

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, ensuring our products conform to international standards.

With 10 years of specialization in manufacturing pressure, level and flow measuring instruments, we have become a professional measuring instrument manufacturer and solution provider. Our products are exported to America, Spain, Australia, Chile and 20 other countries.

We maintain reasonable prices, efficient production times and excellent after-sales service as our core values, seeking to cooperate with customers for mutual development.

Our Services
  • 24-hour response to inquiries
  • Fluent English support from experienced staff
  • OEM & ODM services available
  • Distributorship opportunities
  • Strict protection of sales areas and private information
  • Volume discounts available
  • Paid repair services for non-warranty issues
Frequently Asked Questions
Q: What information is needed to select the appropriate radar level gauge?

A: Please provide: application field, medium, measuring range, output signal, power supply, temperature, and installation method for accurate model selection and quotation.

Q: Are you a manufacturer or trading company?

A: We are an ISO certified manufacturer specializing in level and flow measurement instruments, offering OEM & ODM services.

Q: What is your minimum order quantity?

A: Sample orders are acceptable to initiate our cooperation.

Q: What is your delivery time?

A: Typical delivery is 3-15 working days after payment receipt.
