Introduction

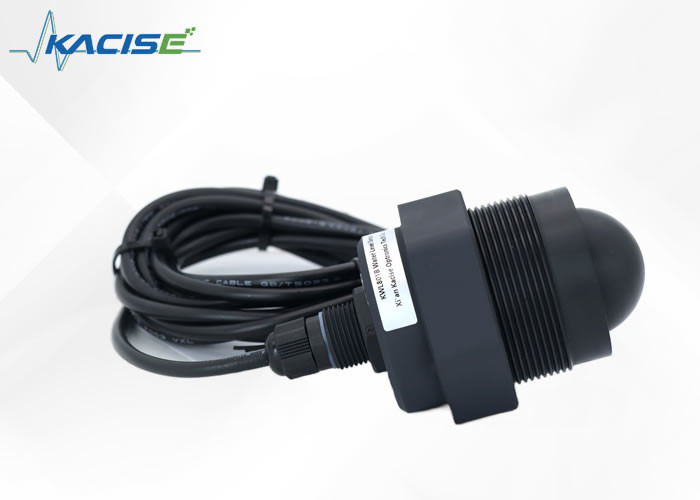

The KWL801B radar water level meter is a powerful tool for river level monitoring. With a 10 m RS485 output, it offers reliable and accurate readings. It functions by emitting radar beams towards the river's surface. These beams bounce back upon hitting the water, and the meter calculates the time taken for this round trip to determine the water level precisely. The 10 m range is suitable for many riverine applications, allowing it to capture a significant portion of the river's vertical profile. The RS485 output facilitates seamless connection with data acquisition systems and control centers. This enables real-time monitoring and analysis of river levels, which is crucial for flood prediction and prevention. It helps authorities take proactive measures to protect nearby communities and infrastructure. Additionally, the meter's robust design ensures it can withstand the harsh outdoor conditions typically associated with river environments, such as varying temperatures, humidity, and potential debris in the water.
Feature
- Based on the self-developed CMOS millimeter-wave RF chip
- More compact RF architecture
- Higher signal-to-noise ratio
- Smaller dead zone
- 5GHz working bandwidth
- Higher measurement resolution and measurement accuracy
- Less influence by the interference in the installation environment
- More convenient of installation and
- Modern design of integrated flat antenna
Technical Specifications
| Model | KWL801B-RS485 | KWL801B-RJ45 | KWL801B-RS232 | KWL801B-TTL |
| Frequency of measurement | 80GHz |
| Communication | RS485 |
| Frequency of acquisition | ≥200ms/ configurable |
| Current of operation | 12V/14mA |
| Distance measurement accuracy | ±2mm |
| Communication protocol | Modbus/ Text protocol |
| Antenna beam width | ±2.75° |
| Supply voltage | 9~24V |
| Range of measurement | 0.2~40m
0.18~30m
0.1~15/20m
0.06~3/5/10m |
| RF pulse current | 100mA/20ms |
| Working humidity | 0~95% |
| Type of thread | G thread/ customized |
| Working temperature | -40~75℃ |
| Grade of water resistance | IP68 |
| Net weight | 0.6kgs |
Wiring Instructions

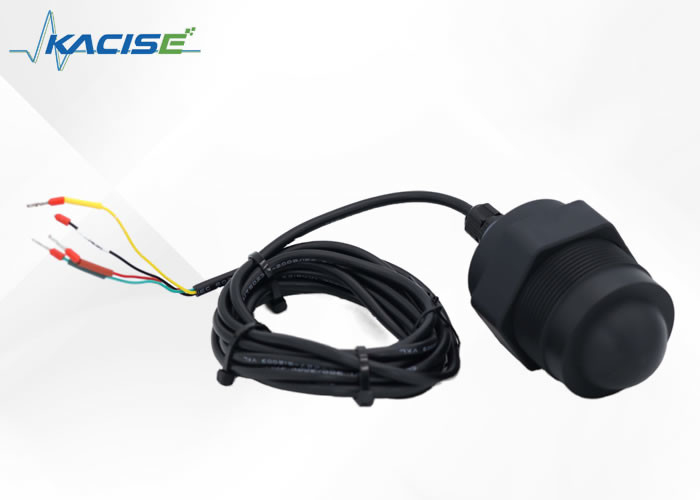

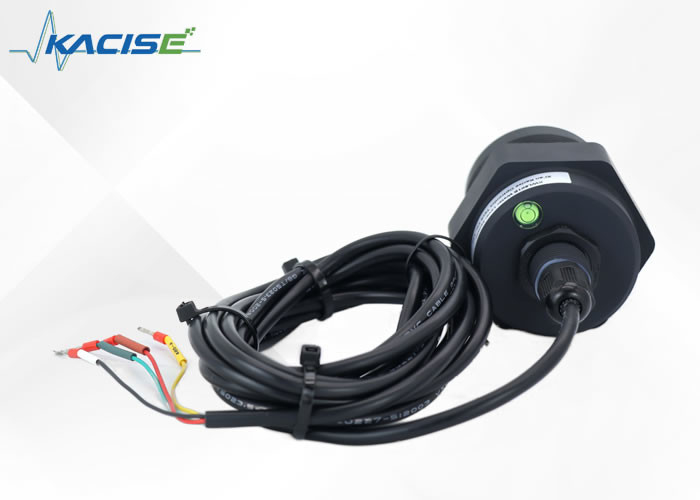

4.1 [RS485 version] Wiring instructions
| Red line | VCC (9~24V power supply) |
| Black line | GND |
| Yellow line | 485-A |
| Green line | 485-B |
4.2 [RJ45 network port version] Wiring instructions
4.3 [RS232 version] Wiring instructions
| Red line | 12 (6~28V power supply) |
| Black line | GND |
| Yellow line | TX |
| Green line | RX |
4.4 [TTL version] Wiring instructions
| Red line | VCC |
| Black line | GND |
| Yellow line | TX |
| Green line | RX |
Dimension
Apply
Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
