KWD200 Ultrasonic Underwater Communications Sensor

Ultrasonic Underwater Communications Sensor

KWD200 Underwater Communications Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KWD200

Request A Quote

Product Details

Communication Distance:

50 Meters, 100 Meters

Underwater Acoustic Communication Rate:

96bps

Response Rate:

3 Seconds

Send Information:

1-12 Characters

Bit Error Rate:

≤8% (related To The Test Environment)

Communication Method:

RS485, MODBUS Protocol

Highlight:

Ultrasonic Underwater Communications Sensor

KWD200 Underwater Communications Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

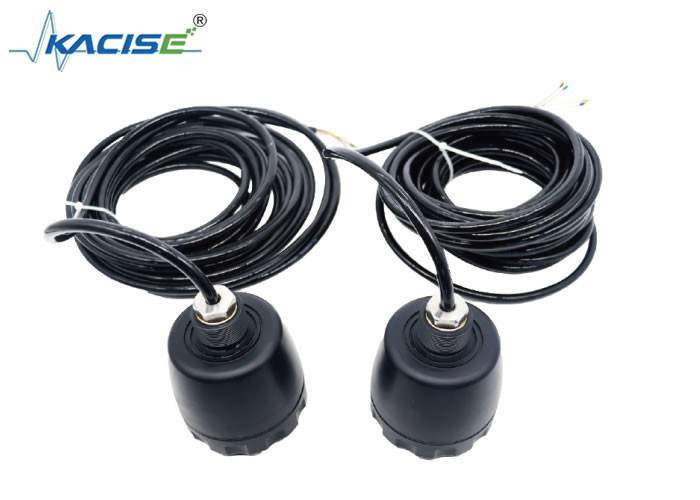

KWD200 Ultrasonic Underwater Communications Sensor

Name: KWD200 Ultrasonic Underwater Communications Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD200
Price: 1,000.10 USD
Availability: InStock

Introduction

This product mainly uses ultrasonic waves to achieve underwater communication.

It is used for underwater unmanned submersible communication, underwater short command transmission, marine sensor network transmission, and marine environment monitoring network transmission.

Product Features

▪ Power supply: battery (12V±10%)

▪ Communication distance: 100m

▪ Pressure resistance: 100m water depth

▪ Working temperature: 0℃～60℃ (no freezing)

▪ Protection grade: IP68

▪ Case material: ABS

Technical Specifications

Communication distance	50 meters, 100 meters
Underwater acoustic communication rate	96bps
Response rate	3 seconds
Send information	1-12 characters
Bit error rate	≤8% (related to the test environment)
Communication method	RS485, MODBUS protocol
Voltage resistance	100 meters water depth
Usage environment	Water depth greater than 2 meters, away from motors and frequency conversion equipment
Power supply	Battery (12V ± 10%), receiving power 0.9W/transmitting power 5W
Protection level	IP68
Operating temperature	Working temperature: 0℃+60℃
Interface thread size	M33*1.5
Storage requirements	Storage environment temperature: -20~+60℃; Storage environment pressure: normal pressure; Storage environment humidity: ≤90%RH (non-condensing); Other requirements: No corrosive liquid, gas or steam in the environment, no vibration.
Wiring definition	Red: 12V+ Green: 12V- White: 485A Yellow: 485B
Usage precautions	During the test wiring process, the 485 line cannot touch and short-circuit the power line. If the short-circuit burns out, the product cannot be repaired.
