KWD520 M42＆M45 Hydrophone

M42 Hydrophone

M45 Hydrophone

KWD520 Hydrophone

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KWD520

Request A Quote

Product Details

Product Name:

M42＆M45 Hydrophone

Sensitivity:

≥-166.5dB Vre: 1V/μPascal

Response Frequency Range:

20Hz-20KHz

Power Supply:

6-13V DC

Power Consumption:

≤150 MW

Static Pressure Bearing:

68Bar (1000psi)

Highlight:

M42 Hydrophone

M45 Hydrophone

KWD520 Hydrophone

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KUS-W80 Underwater Distance Sensor 200kHz Transducer Frequency and Low No-load Current for Underwater Distance Measurement

Get Best Price

KUS-W50 Underwater Distance Sensor Reverse Polarity Protection And 0.6m Blind Area For Seamless Underwater Monitoring

Get Best Price

KWD200 Ultrasonic Underwater Communications Sensor

Get Best Price

High Accuracy KWD400 360-Degree Scanning Sonar Power Consumption ≤12W

Get Best Price

86--17719566736

Contact Now

Product Description

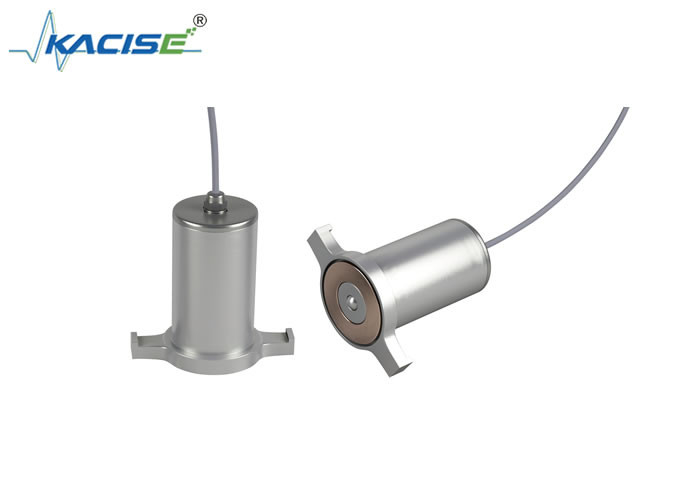

KWD520 M42＆M45 Hydrophone

Name: KWD520 M42＆M45 Hydrophone
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD520
Price: 1,000.10 USD
Availability: InStock

Introduction

Able to maintain high accuracy and high sensitivity in environments with large changes in temperature and pressure, this hydrophone provides two types of preamplifiers and is widely used in noise monitoring caused by liquid flow and fluctuations. Threaded connection for easy installation.

Technical Specifications

Product name	M42＆M45 Hydrophone
Sensitivity	≥-166.5dB Vre: 1V/μPascal
Response frequency range	20Hz-20KHz
Power supply	6-13V DC
Power consumption	≤150 mW
Output signal	Analog output, (deep integration to signal amplification 10 times (20dB) and 100 times (40dB))
Material	Metal
Static pressure bearing	68Bar (1000psi)
Connection method	Clamp-type locking, clamp width ≤12mm
Protection level	IP68
Weight	≤600g, including 2m additional cable
Connecting cable	Low noise four-core shielded cable 2m
Overall length	80mm, 88mm

Application Fields

KWD520 M42＆M45 Hydrophone 0
