Name: KQT-O2 Electrochemical Oxygen Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQT-O2
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KQT-O2 Electrochemical Oxygen Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KQT-O2

Request A Quote

Product Details

Detection Principle:

Electrochemical Two-electrode

Detection Range:

0 - 25%VOL

Maximum Load Concentration:

30%VOL

Output Signal:

100±20 μA In Air

Load Resistance:

100Ω

Temperature Range:

-30℃ - 50℃

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

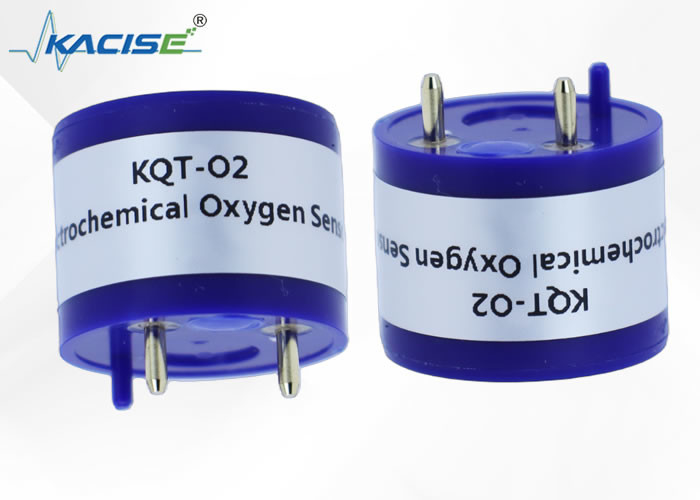

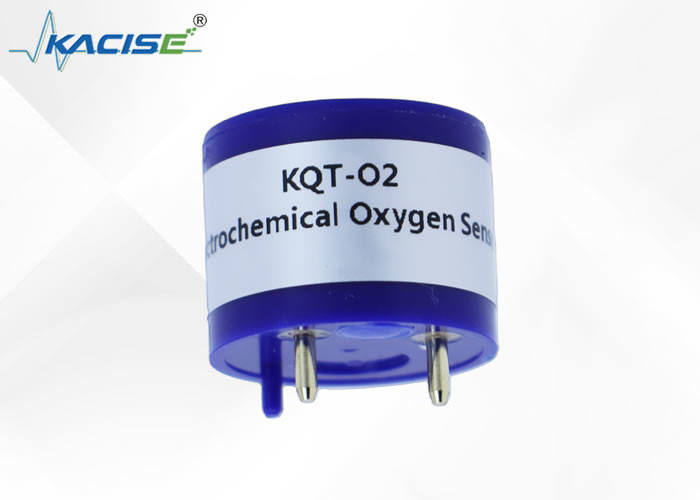

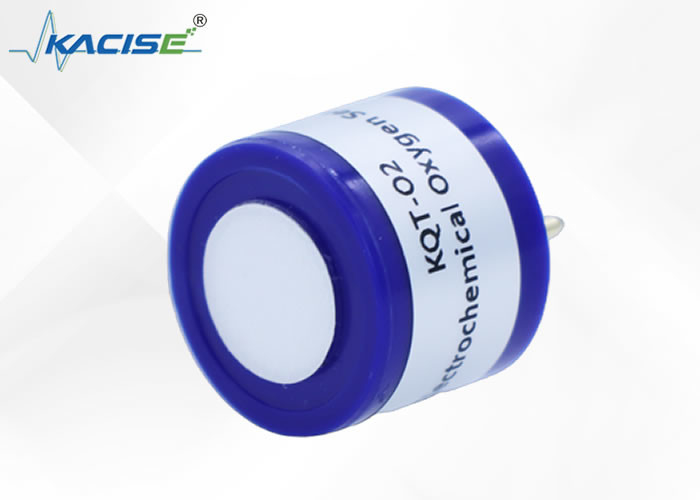

KQT-O2 Electrochemical Oxygen Sensor

Introduction

The KQT-O2 oxygen gas detection sensor is a battery-type sensor. It generates an electric current through the reduction reaction of oxygen on the working electrode and the corresponding oxidation reaction of the anode material. The magnitude of the current is proportional to the concentration of oxygen. The concentration of oxygen can be determined by measuring the magnitude of the current.

Product Features

1.High precision and long service life

2.Fast response speed and quick return to zero

3.Low power consumption and high sensitivity

4.Wide linear range

5.Strong anti-interference ability

6.Excellent repeatability and stability

Technical Parameters

Project	Parameter
Model	KQT-O₂
Detection Principle	Electrochemical two-electrode
Detected Gas	O₂
Detection Range	0 - 25%VOL
Maximum Load Concentration	30%VOL
Output Signal	100±20 μA in air
Zero-point Drift	0.6%VOL
Resolution	0.1%VOL
Response Time	T90 < 20s
Bias Voltage	0
Load Resistance	100Ω
Temperature Range	-30℃ - 50℃
Humidity Range	15% RH to 90% RH (no condensation)
Repeatability	< ±2% output signal
Long-term Stability	< 2% signal / month
Linearity	Linear, regression coefficient R² = 0.999
Working Pressure	90 to 110 kPa
Shelf Life	12 months after delivery
Service Life	2 years
