Name: Light Alarm KMK-40 Multi Gas Detector With Explosion Proof Ex Ib LlC T4 Gb
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMK-40
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Light Alarm KMK-40 Multi Gas Detector With Explosion Proof Ex Ib LlC T4 Gb

Explosion Proof Multi Gas Detector

Ex ib llC Multi Gas Detector

Light Alarm Multi Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KMK-40

Request A Quote

Product Details

Accuracy:

≦ 5% F.S.

Response Time:

T＜60s

Explosion Proof:

Ex Ib LlC T4 Gb

Alarm Method:

Four Alarm Method: Sound, Vibration, Light, Display

Operating Environment:

Operating Temperature -10℃～55℃

Humidity:

＜95%RH Non-condensing

Highlight:

Explosion Proof Multi Gas Detector

Ex ib llC Multi Gas Detector

Light Alarm Multi Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

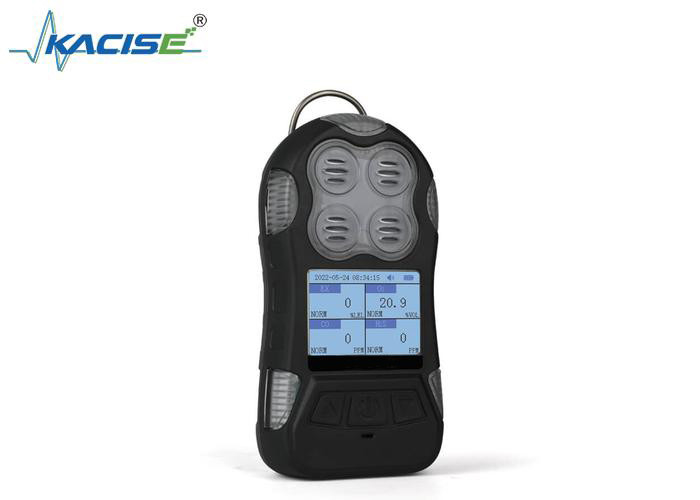

KMK-40 Multi Gas Detector

Introduction

The KMK-40 Multi Gas multi gas detector uses an advanced large-scale integrated circuit technology,Intelligent design technology and proprietary digital simulation hybrid communication technology gas detector. The detector uses a natural diffusion method to detect gas, and the sensitive element uses high -quality gas sensors. It has excellent sensitivity and excellent repetitiveness, convenient use and maintenance, which greatly meets the safety of the industrial sit.

Technical Parameters

Sampling method	natural diffusion
Accuracy	≦ 5% F.S.
Response time	T＜60s
Explosion proof	Ex ib llC T4 Gb
Alarm Method	four alarm method: sound, vibration, light, display
Operating Environment	Operating temperature -10℃～55℃
Humidity	＜95%RH non-condensing
Operating voltage	DC3.7V Li battery 1800mAh
Working time	≧8h continuously
Charging time	4h～6h
Sensor life	2 years
Protection category	IP67
Weight	about 300g (including battery but without accessories)

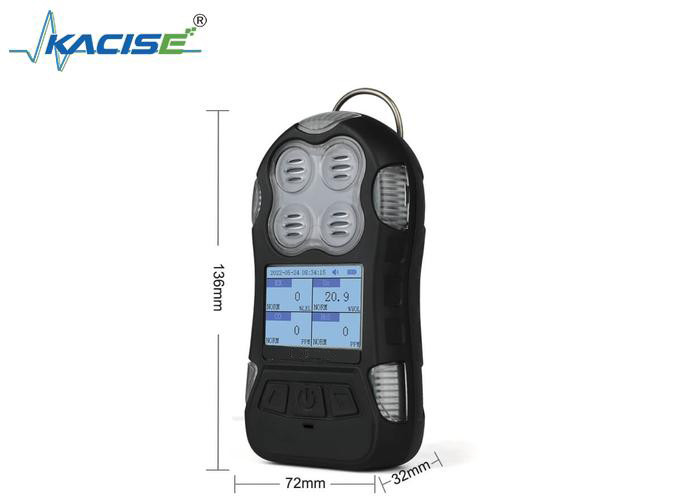

Dimension	136mm×72mm×32mm

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
