Name: KFBH-60 Fixed Gas Detector WIth Display For LPG Station
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFBH-60
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KFBH-60 Fixed Gas Detector WIth Display For LPG Station

LPG station Fixed Gas Detector

Display Fixed Gas Detector

KFBH-60 Fixed Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFBH-60

Request A Quote

Product Details

Explosion Proof Grade:

Ex Db IIC T6 Gb

Response Time:

30S

Power Supply:

DC24V±10%

Working Temperature:

-20℃～50℃

Output Current:

4-20mA

Working Humidity:

0-95%RH

Highlight:

LPG station Fixed Gas Detector

Display Fixed Gas Detector

KFBH-60 Fixed Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

KFBH-60 Fixed Gas Detector WIth Display

Introduction

KFBH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Technical Parameters

Product type	KFBH-60 fixed gas detector/transmitter
Explosion proof grade	Ex db IIC T6 Gb
Response time	30S
Power supply	DC24V±10%
Working temperature	-20℃～50℃
Output current	4-20mA
Working humidity	0-95%RH
Contact output	Free contact output, max power 1kW
Single input	4~20mA and RS485
Installation method	Wall-mounted
Shell material	Aluminum
Dimensions	190x150x95mm(L×W×H)

Detailed Images

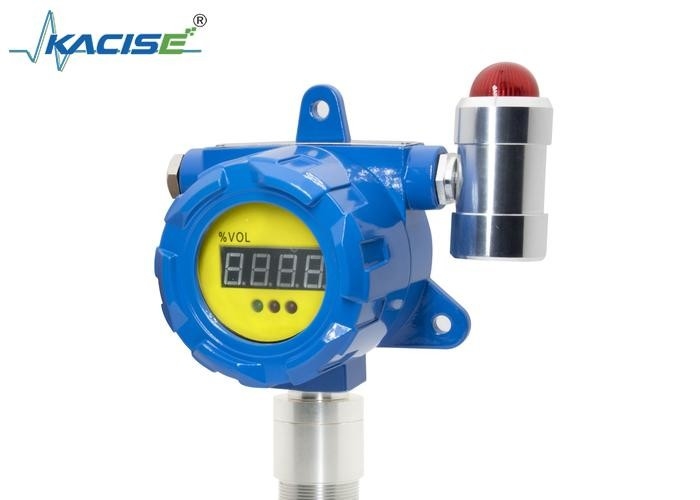

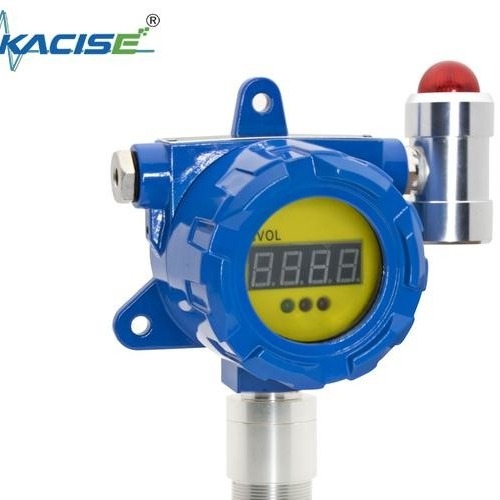

KFBH-60 Fixed Gas Detector WIth Display For LPG Station 0

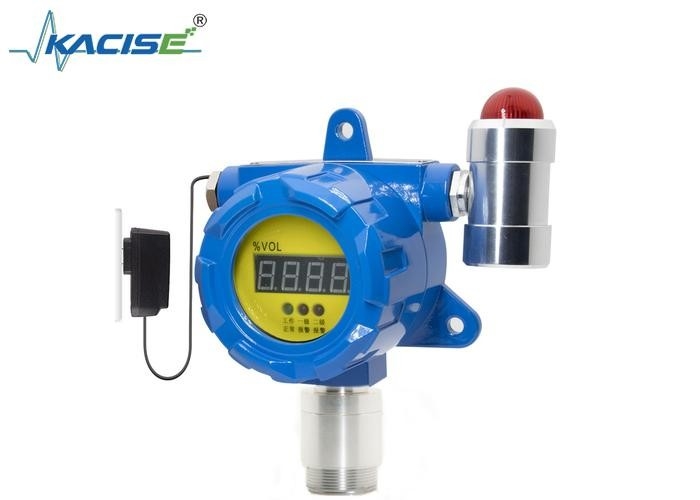

KFBH-60 Fixed Gas Detector WIth Display For LPG Station 1

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
