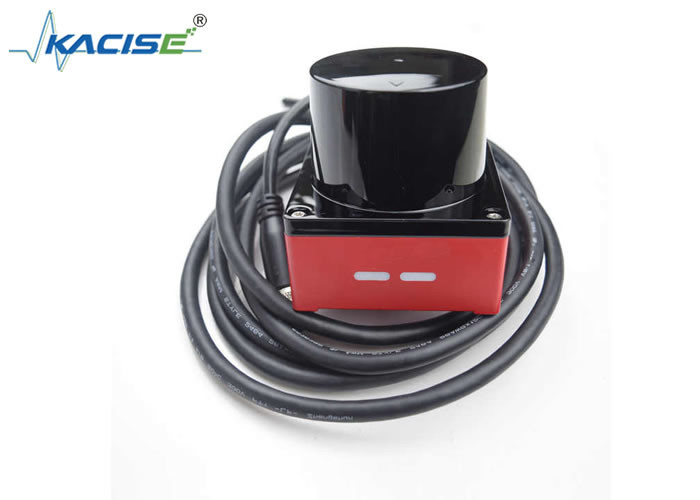

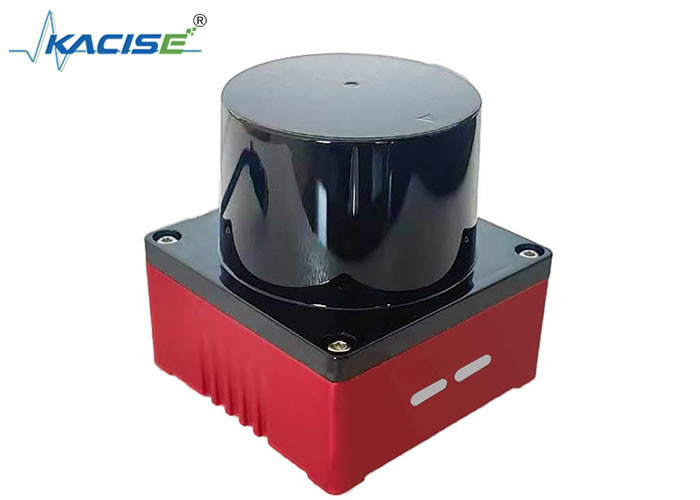

Name: KL2A-25 2D laser radar for unmanned vehicles and unmanned ships
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KL2A - 25
Price: 5,000.00 USD
Availability: InStock

Home > products > Laser Sensors >

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KL2A - 25

Request A Quote

Product Details

Description:

2D 360 ° Laser Scanning Radar

Measuring Rate:

1...25Hz

Type:

Distance Sensor

Absolute Accuracy:

±30mm

Power Dissipation:

Measurement:

0.1...25m

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

Video

KLSA Series Laser Ranging Sensors Maximum Measuring Distance 22m Enclosure Protection Level IP65 For Industry And Manufacturing

Get Best Price

KLSA Series Laser Ranging Sensors For Surveying And Engineering Construction

Get Best Price

Video

Outdoor High - Performance KLSA Laser Distance Sensor

Get Best Price

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships

Get Best Price

86--17719566736

Contact Now

Product Description

KL2A - 25 Robot Navigation High - Precision Laser Distance Sensor

Overview

Designed for robot navigation, the KL2A - 25 Robot Navigation High - Precision Laser Distance Sensor equips robots with reliable distance - sensing capabilities. It measures up to 100m with high precision, enabling robots to detect obstacles accurately. Working at frequencies from 3 to 20Hz, it can keep up with the dynamic movement of robots. The built - in digital display can be used for debugging. Supporting PLC programming and networking, it integrates well with robot control systems. With stable data transfer through RS485 Modbus - RTU protocol, it ensures smooth robot navigation. Installation is straightforward.

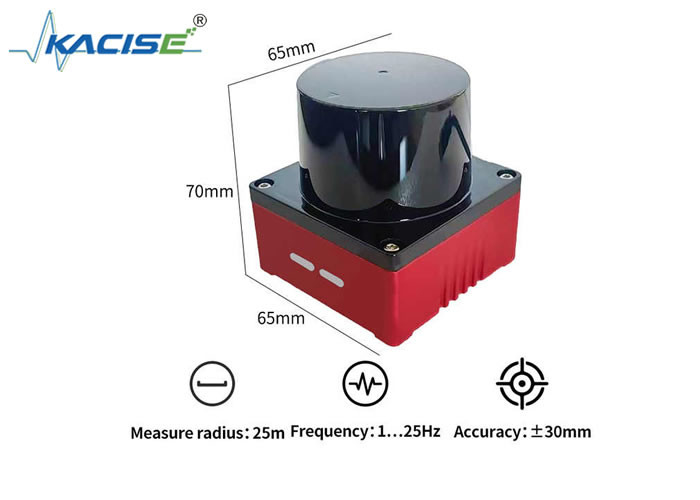

Dimension

KL2A-25 2D laser radar for unmanned vehicles and unmanned ships 0

Product Features

1. High - precision measurement for accurate robot obstacle detection.

2. Flexible frequency to adapt to robot movement.

3. Easy integration with robot control systems for seamless navigation.

Technical Parameters

Mounting Type	manual install
Description	2D 360 ° laser scanning radar
Model Number	KL2A-25
Type	Distance Sensor
Series	KL2A-25
Features	2D LiDAR
Manufacturing Date Code	202501
Brand Name	Siman
Theory	DTOF
Output	Network port, switch quantity
Description	KL2A-25
Measurement	0.1...25m
Duplicate accuracy	±20mm
Absolute accuracy	±30mm
Measuring rate	1...25Hz
Angular resolution	0.25°@10Hz;0.5°@15Hz;1°@25Hz
Point cloud density	14.4K@10Hz;10.8K@15Hz;9K@25Hz
Interface	Network port, switch quantity
Working voltage	DC12...30V
power dissipation	5W
