Name: KFBH - 60 Chemical Plant Gas Detector
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFBH-60
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KFBH - 60 Chemical Plant Gas Detector

KFBH - 60 Gas Detector

Chemical Plant Gas Detector

60 Chemical Plant Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFBH-60

Request A Quote

Product Details

Power Supply:

DC24V±10%

Response Time:

≦30S

Working Temperature:

-20℃～50℃

Explosion Proof Grade:

Ex Db IIC T6 Gb

Output Current:

4-20mA

Working Humidity:

0-95%RH

Highlight:

KFBH - 60 Gas Detector

Chemical Plant Gas Detector

60 Chemical Plant Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

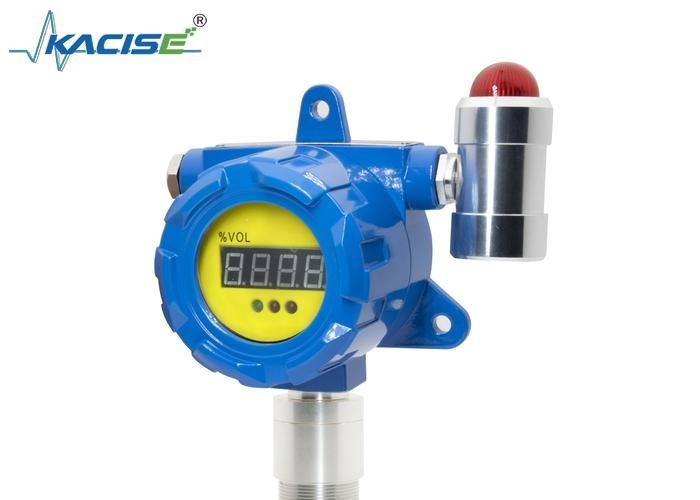

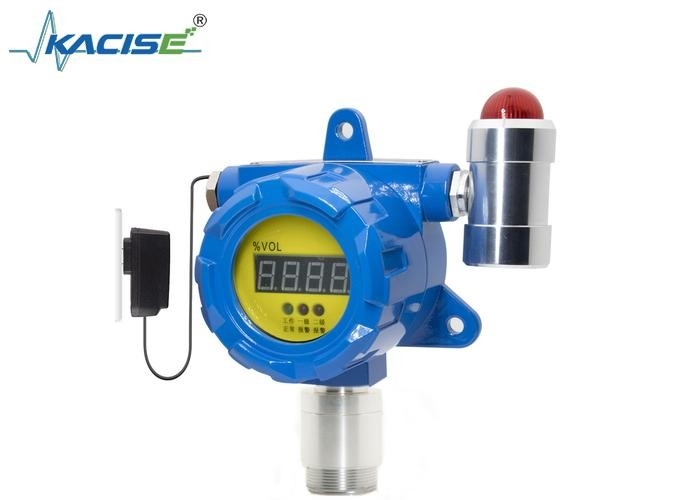

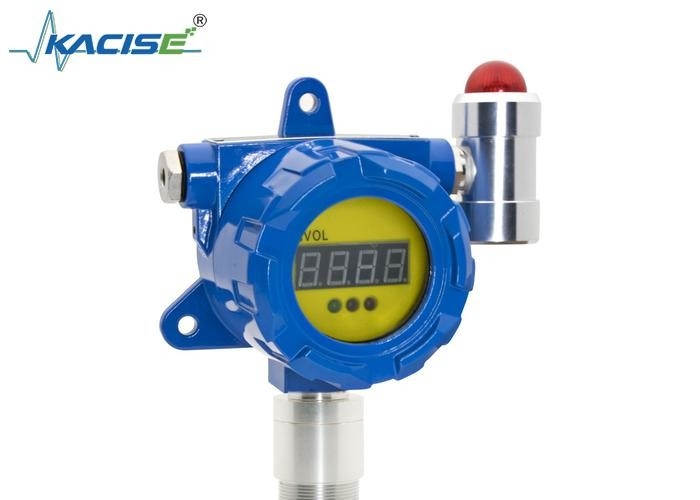

KFBH - 60 Chemical Plant Gas Detector
Introduction
Tailored for chemical plants, the KFBH - 60 Chemical Plant Gas Detector is a reliable safety device. Equipped with advanced catalytic or electrochemical sensors, it effectively monitors gas concentrations. Its explosion - proof design (Ex db IIC T6 Gb) makes it suitable for the potentially hazardous chemical plant environment. The detector operates within - 20℃ to 50℃ and has a 4 - 20mA output for real - time gas level monitoring. With free contact output up to 1kW, it can trigger safety measures. Wall - mounted installation and an aluminum shell ensure durability and easy setup.
Product Features
1. Precise gas detection for chemical plant safety.
2. Robust explosion - proof construction for hazardous environments.
3. Easy installation with wall - mounted design.
Technical Parameters

Product type	KFBH-60 fixed gas detector/transmitter
Explosion proof grade	Ex db IIC T6 Gb
Response time	≦30S
Power supply	DC24V±10%
Working temperature	-20℃～50℃
Output current	4-20mA
Working humidity	0-95%RH
Contact output	Free contact output, max power 1kW
Single input	4~20mA and RS485
Installation method	Wall-mounted
Shell material	Aluminum
Dimensions	190x150x95mm(L×W×H)

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
