KLBH90E Gas Leak Detector for 1800mAh Working Environment and 6h-8h Alarm Type in Municipal Construction

KLBH90E Gas Leak Detector for 1800mAh Working Environment and 6h-8h Alarm Type in Municipal Construction

Municipal Construction Gas Leak Detector

6h-8h Gas Leak Detector

1800mAh Gas Leak Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KLBH90E

Contact Us
Request A Quote
Product Details
Response Time:
≦30s
Accuracy:
≦±5% F.S.
Sensor:
-20℃~50℃, <95%RH (no Dew)
Working Environment:
DC3.7V Li-on Battery, 1800mAh
Alarm Type:
6h~8h
Backlight:
≧8h Continuously (without Alarming)
Highlight:

Municipal Construction Gas Leak Detector

,

6h-8h Gas Leak Detector

,

1800mAh Gas Leak Detector

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
Product Description

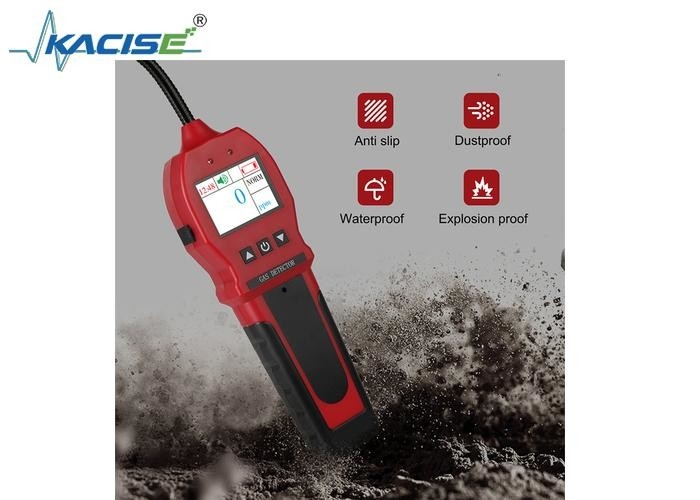

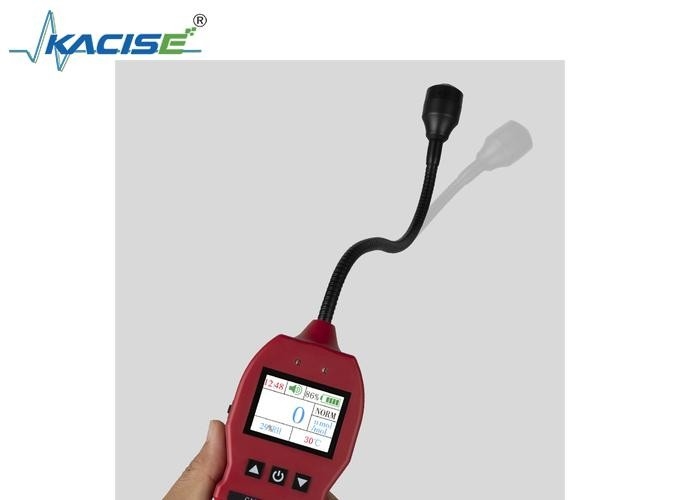

KLBH90E Municipal Construction Gas Leak Detector

Introduction

Tailored for municipal construction, the KLBH90E Municipal Construction Gas Leak Detector is a reliable tool. It uses LSI technology and an embedded microcontroller. The natural diffusion sampling method, combined with a high - sensitivity sensor, enables effective detection of combustible gas leaks. With a warm - up time of 60s and a response time of less than 30s, it provides timely alerts. Its compact design makes it easy to carry around construction sites. The detector’s large LCD, along with audible, visual, and vibration alarms, ensures operators are promptly informed of gas leaks.

Product Features

*Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.

*32-bit built-in MCU, high reliability and self-adaptation ability.

*Full functions, easy operation.

*Large LCD, more intuitionistic, abundant and clear indication.

*Compact design, easy carrying.

*High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.

Technical Parameters

Target gas Combustible gas
Range 0-10,000ppm (μmol/mol)
Sampling method Natural diffusion
Alarm point Default: Low alarm: 500ppm; High alarm: 2000ppm.
Support personalized setting.
Alarm types Audible buzzer alarm; Visual LED light alarm; Vibration alarm
Warm-up time 60S
Response time <30s
Sensor type Imported FIGARO sensor
Sensor life 2 years
Power supply Rechargeable lithium battery, DC3.7V 1800mAH
Charging time 6h-8h
Continuous working hours No less than 8 hours (normal working environment)
Working condition Temperature: -10~40℃ Humidity: ≤95% RH with no condensation.
Storage condition Temperature: -20~50℃ Humidity: ≤85% RH, avoid caustic gases or substances.
Weight Approx. 300g (excluding accessories)
Dimension Approx. 210mm(L)×66mm(W)×30mm(H)

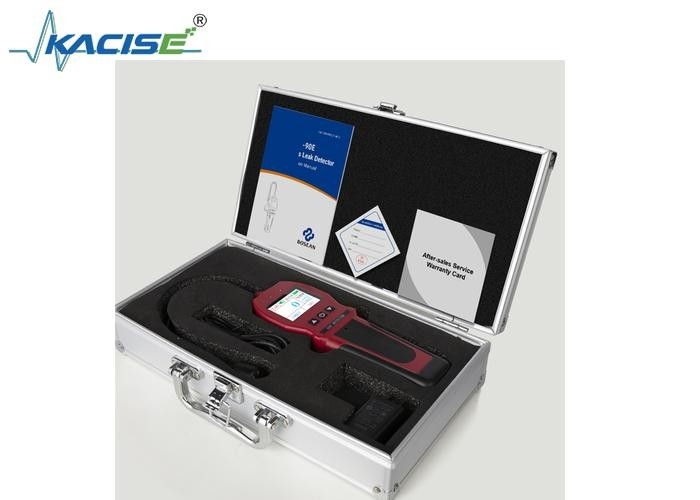

Packing list Detector, Carrying case, Charger, USB cable, Warranty card, Thank-you card.
