Name: KSBH - 90A Mining Gas Detector
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSBH - 90A
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KSBH - 90A Mining Gas Detector

Mining Gas Detector

90A Mining Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KSBH - 90A

Request A Quote

Product Details

Accuracy :

≦ 5% F.S.

Response Time:

T＜30s

Humidity:

＜95%RH Non-condensing

Operating voltage:

DC3.7V Li Battery 1500mAh

Charging Time:

4h～6h

Working Time:

≧8h Continuously

Highlight:

Mining Gas Detector

90A Mining Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

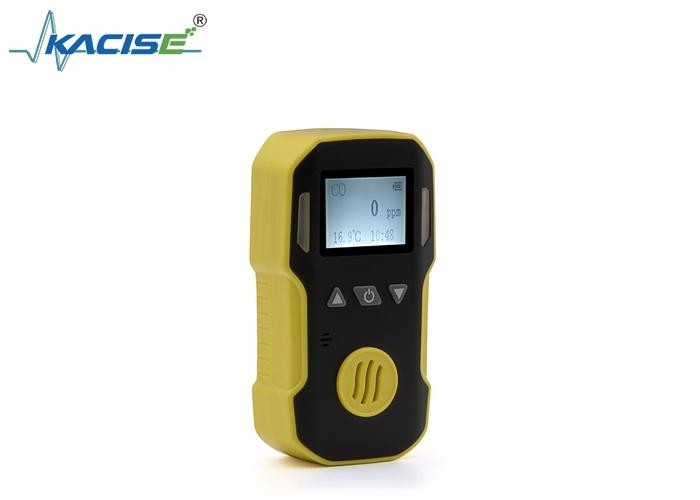

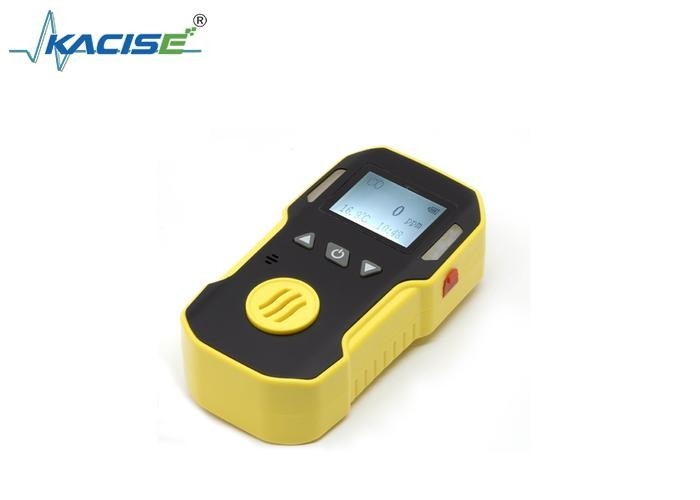

KSBH - 90A Mining Gas Detector

Introduction

The KSBH - 90A Mining Gas Detector is an essential safety device for mines. It can continuously detect combustible and toxic gases in harsh mining environments. Operating within - 40℃ to 70℃ for combustible gas and - 20℃ to 50℃ for toxic gas, it’s highly adaptable. Its explosion - proof housing (Ex ib llB T3 Gb) ensures safe use in potentially explosive areas. The detector has adjustable alarm and calibrating levels, and features self - test and self - adjustment functions, enhancing its reliability in mining operations.

Product Features

*Advanced MCU control with low power consumption;

*Adjustable low and high alarm level;

*Adjustable calibrating level;

*High concentration protection for combustible gas;

*Self test for the combustible gas sensor;

*Low battery indication;

*Self-adjustment function

*Visual and audible alarm with vibration;

*Advanced self-examination and self-renovation function

*Password management to avoid wrong operation;

*Explosive proof housing.

Technical Parameters

Accuracy	≦ 5% F.S.
Response time	T＜30s
Indication	LCD indicates the time and state Indication of alarm, fault and low voltage with LED, sound, vibration
Operating Environment	Operating temperature -40℃～70℃ (for combustible gas)
Operating Environment	Operating temperature: -20℃～50℃ (for toxic gas)
Humidity	＜95%RH non-condensing
Operating voltage	DC3.7V Li battery 1500mAh
Working time	≧8h continuously
Charging time	4h～6h
Sensor life	2 years
Weight	about 130g (including battery but without accessories)
Explosion proof	Ex ib llB T3 Gb
Dimension	100mm×60mm×30mm

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
