KFGT - K90 Multi-Gas Surveillance Titan

KFGT - K90 Multi-Gas Surveillance Titan

K90 Multi-Gas Surveillance Titan

Multi-Gas Surveillance Titan

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KFGT-K90

Contact Us
Request A Quote
KFGT - K90 Multi-Gas Surveillance Titan
Product Details
Working Environment:
-40℃～70℃ ＜93%RH (no Dew)
Connection Port:
M27*1.5mm
Protection Class     :
IP66
Zero Drift:
≦±2% F.S.
Response Time:
≦30s
Working Pressure:
36~106Kpa
Highlight:

K90 Multi-Gas Surveillance Titan

,

Multi-Gas Surveillance Titan

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

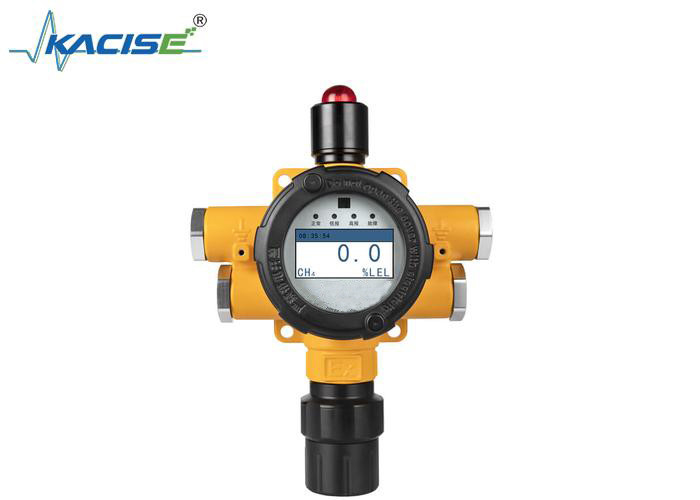

KFGT - K90 Multi-Gas Surveillance Titan



Introduction



Multi-Gas Surveillance Titan: KFGT - K90 is an advanced fixed gas detector. It supports customization for over 300 gases, along with different detection ranges. Equipped with a 2.4-inch industrial-grade OLED screen, it offers real-time monitoring. With integrated sound and light alarms, it alerts promptly. The detector features full-scale temperature compensation and over-range protection. Operating in a wide temperature range from - 40℃ to 70℃, it’s suitable for harsh environments. OEM/ODM services are available.



Product Features



1. Customizable for over 300 gases and various ranges.

2. Real-time monitoring via 2.4-inch OLED screen.

3. Integrated sound and light alarms.

4. Full-scale temperature compensation and over-range protection.

5. Wide operating temperature range. 6. Available OEM/ODM services.



Technical Parameters



Protection class IP66
Connection port M27*1.5mm
Zero drift ≦±2% F.S.
Response Time ≦30s
Working pressure 36~106Kpa
Working environment -40℃～70℃ ＜93%RH (no dew)
Resolution 0.1%LEL
Display error ±3%LEL
Detection principle catalytic combustion
Gas Sensor Life 2 years
Explosion-proof grade Ex db IIC T6 Gb
Cable 3x1.5mm2, 4x1.5mm'shielded cable
Weight 2.1KG
Dimensions 26*19*13.5cm



Specifications



Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
