KFK - G60 Industrial Gas Safety Monitor

KFK - G60 Industrial Gas Safety Monitor

Industrial Gas Safety Monitor

KFK Gas Safety Monitor

G60 Gas Safety Monitor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

CE

Model Number:

KFK-G60

Contact Us
Request A Quote
KFK - G60 Industrial Gas Safety Monitor KFK - G60 Industrial Gas Safety Monitor KFK - G60 Industrial Gas Safety Monitor
Product Details
Explosion Proof Grade:
Ex Db LIC T6 Gb/Ex Tb IIIC T80C Db
Protection Category:
IP 66
Response Time:
<30S
Power Supply:
DC24V±15%
Working Temperature:
-20℃~50℃
Output Current:
4-20mA
Highlight:

Industrial Gas Safety Monitor

,

KFK Gas Safety Monitor

,

G60 Gas Safety Monitor

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Packaging Details
each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000 Piece/Pieces per Week negotiable
RELATED PRODUCTS
Good price Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65 online

Commercial Ultrasonic Gas Meter KFD - USM - 443 - G6/G10/G16/G25/G40/G65

Get Best Price
Good price Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm online

Household Ultrasonic Gas Meter KGD USM 441 2.7 3.6VDC Power Supply Compact Design Dimensions 128.7*42.8*55.2mm

Get Best Price
Good price 10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement online

10.8V 16.5V System Voltage Wide Oxygen Sensor KGD ZS 322 Gas Detector Sensor For Accurate Air Fuel Ratio Measurement

Get Best Price
Good price Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323 online

Heater Resistance Motorcycle Oxygen Sensor KGD - ZS - 323

Get Best Price
Contact Us
86--17719566736
Contact Now
Product Description

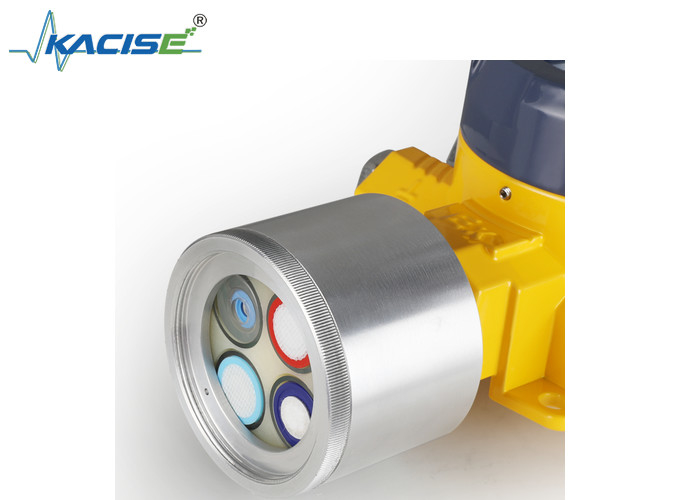

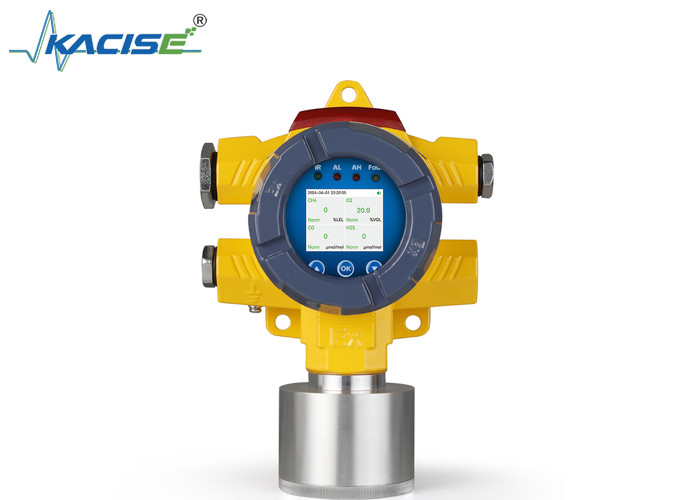

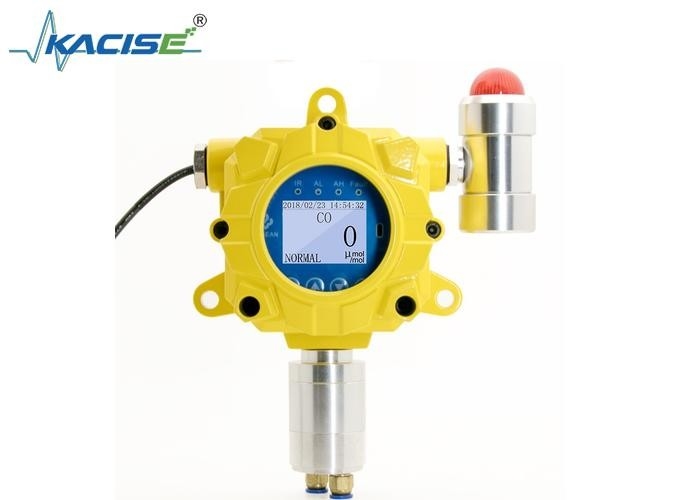

KFK - G60 Industrial Gas Safety Monitor



Introduction



The Industrial Gas Safety Monitor: KFK - G60 is a cutting - edge fixed gas detector, developed based on years of gas detection expertise. It accurately measures the concentration of flammable, toxic, and harmful gases in the air. Once gas concentrations reach or exceed preset alarm values, it triggers audible and visual alarms via the controller, preventing potential explosion and poisoning incidents. With an explosion - proof grade of Ex db lIC T6 Gb/Ex tb IIIC T80C Db and IP66 protection, it can operate safely in harsh industrial environments.



Product Features



1. High - level explosion - proof and waterproof protection.

2. Quick response time of less than 30 seconds.

3. Wide power supply tolerance of DC24V±15%.

4. Detection of various dangerous gases for safety prevention.



Technical Parameters



Product Name K-G60 Remote Control Fixed Gas Detector
Explosion proof grade Ex db lIC T6 Gb/Ex tb IIIC T80C Db
Protection category IP 66
Response time <30S
Power supply DC24V±15%
Working temperature -20℃~50℃
Output current 4-20mA
Working humidity 0-95%RH (no dew)
Contact output Free contact output, max power 1kW
Single input 4~20mA and RS485
Installation method Wall-mounted
Shell material Aluminum
Dimensions 190*150*95mm(L*W*H)



Specifications



Model Range Resolution L-alarm H-alarm
CO 0-1000ppm 1ppm 50ppm 150ppm
O2 0-30%vol 0.1%vol 19.5%vol 23.5%vol
H2 0-1000ppm 1ppm 50ppm 150ppm
H2S 0-100ppm 0.1ppm 10ppm 20ppm
CH4 0-5%vol 0.01%vol 1%vol 2.5%vol
C2H4O 0-100ppm 1ppm 10ppm 20ppm
EX 0-100%LEL 1%lel/1%vol 20%LEL 50%LEL
HC 0-2%vol 0.01%vol 0 0
C2H6O 0-100ppm 1ppm 10ppm 20ppm
NH3 0-100ppm 1ppm 10ppm 20ppm
CL2 0-50ppm 0.1ppm 5ppm 10ppm
O3 0-20ppm 0.1ppm 5ppm 10ppm
SO2 0-20ppm 0.1 5ppm 10ppm
PH3 0-20ppm 0.1ppm 5ppm 10ppm
CO2 0-5%vol 0.01%vol 1%vol 2%vol
NO 0-250ppm 1ppm 50ppm 150ppm
NO2 0-20ppm 0.1ppm 5ppm 10ppm
HCN 0-50ppm 0.1ppm 5ppm 10ppm
HCL 0-50ppm 0.1ppm 5ppm 10ppm
HF 0-10ppm 0.1ppm 3ppm 5ppm
C7H8/C8H10 0-100ppm 1ppm 10ppm 20ppm
