Name: KFK - G60 Flammable Gas Sentinel
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KFK - G60
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KFK - G60 Flammable Gas Sentinel

KFK Flammable Gas Sentinel

Flammable Gas Sentinel

G60 Flammable Gas Sentinel

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KFK - G60

Request A Quote

Product Details

Explosion Proof Grade:

Ex Db LIC T6 Gb/Ex Tb IIIC T80C Db

Protection Category:

IP 66

Response Time:

<30S

Power Supply:

DC24V±15%

Working Temperature:

-20℃~50℃

Output Current:

4-20mA

Highlight:

KFK Flammable Gas Sentinel

Flammable Gas Sentinel

G60 Flammable Gas Sentinel

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

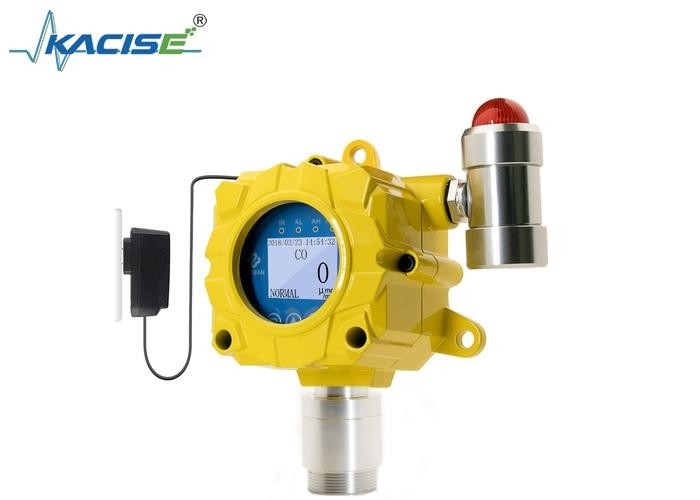

KFK - G60 Flammable Gas Sentinel

Introduction

The Flammable Gas Sentinel: KFK - G60 focuses on detecting flammable gases. It has an output current of 4 - 20mA, enabling seamless connection with other monitoring systems. Working in a humidity range of 0 - 95%RH (no dew), it's resistant to moisture. Its compact dimensions of 19015095mm make it space - efficient. Whether in industrial plants or storage areas, it provides reliable protection against flammable gas hazards.

Product Features

1. Standard 4 - 20mA output for system integration.

2. Moisture - resistant design.

3. Compact size for space - saving installation.

4. Effective flammable gas detection.

Technical Parameters

Product Name	K-G60 Remote Control Fixed Gas Detector
Explosion proof grade	Ex db lIC T6 Gb/Ex tb IIIC T80C Db
Protection category	IP 66
Response time	<30S
Power supply	DC24V±15%
Working temperature	-20℃~50℃
Output current	4-20mA
Working humidity	0-95%RH (no dew)
Contact output	Free contact output, max power 1kW
Single input	4~20mA and RS485
Installation method	Wall-mounted
Shell material	Aluminum
Dimensions	19015095mm(LWH)

Specifications

Model	Range	Resolution	L-alarm	H-alarm
CO	0-1000ppm	1ppm	50ppm	150ppm
O2	0-30%vol	0.1%vol	19.5%vol	23.5%vol
H2	0-1000ppm	1ppm	50ppm	150ppm
H2S	0-100ppm	0.1ppm	10ppm	20ppm
CH4	0-5%vol	0.01%vol	1%vol	2.5%vol
C2H4O	0-100ppm	1ppm	10ppm	20ppm
EX	0-100%LEL	1%lel/1%vol	20%LEL	50%LEL
HC	0-2%vol	0.01%vol	0	0
C2H6O	0-100ppm	1ppm	10ppm	20ppm
NH3	0-100ppm	1ppm	10ppm	20ppm
CL2	0-50ppm	0.1ppm	5ppm	10ppm
O3	0-20ppm	0.1ppm	5ppm	10ppm
SO2	0-20ppm	0.1	5ppm	10ppm
PH3	0-20ppm	0.1ppm	5ppm	10ppm
CO2	0-5%vol	0.01%vol	1%vol	2%vol
NO	0-250ppm	1ppm	50ppm	150ppm
NO2	0-20ppm	0.1ppm	5ppm	10ppm
HCN	0-50ppm	0.1ppm	5ppm	10ppm
HCL	0-50ppm	0.1ppm	5ppm	10ppm
HF	0-10ppm	0.1ppm	3ppm	5ppm
C7H8/C8H10	0-100ppm	1ppm	10ppm	20ppm
