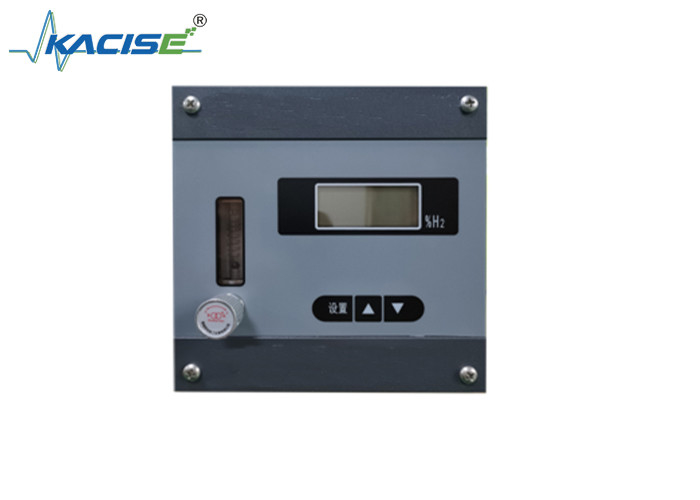

KTG122 Hydrogen-in-Oxygen Analyzer for Hydrogen and Oxygen Production from Water Electrolysis

KTG122 Hydrogen-in-Oxygen Analyzer for Hydrogen and Oxygen Production from Water Electrolysis

Introduction

It serves as an online detection analyzer for the hydrogen content in both explosion - proof and non - explosion - proof scenarios during industrial production processes such as hydrogen and oxygen production from water electrolysis, fertilizer production, petrochemical industry, air separation, and biological fermentation.

Basic Principle

This instrument uses a three - electrode electrochemical sensor. The sensor consists of a working electrode, a reference electrode, and an auxiliary electrode, forming two circuits. One circuit is for the reaction process of the electrodes, and the other is an electronic circuit that transmits the current formed by electrons. The magnitude of this current represents the hydrogen content in the gas.

Technical Parameters

Measurement Range: 0.00 - 2.00%/4.00% (range selectable)

Maximum Allowable Error: ±2%FS

Repeatability: ±1%FS

Resolution: 0.01%

Response Time: t90 ≤ 30s

Zero Drift: ≤ ±1%FS/7d

Span Drift: ≤ ±1%FS/7d

Sample Gas Flow Rate: (300 ± 30) mL/min

Working Power Supply: 24VDC/220VAC

Working Environment: Operating temperature: - 15℃ - + 45℃; Operating humidity: ≤90%RH

Instrument Features

• High - performance Sensor: The electrochemical sensor features a long service life, high accuracy, and fast response.
• Compact and Lightweight: It has a small volume and light weight, facilitating easy installation.
• Split Explosion - proof Design: It adopts a split explosion - proof design.
• On - site Display Function: It comes with an on - site display function.
• Long - distance Signal Transmission: The output signal can be transmitted over a distance of up to 1000 meters.

Intrinsically Safe Type

External Dimensions: 140mm (width) × 140mm (height) × 220mm (depth)

Cut - out Dimensions: 136mm (width) × 136mm (height)

External Safety Barrier Parameters: Vo ≤ 28VDC, Io ≤ 93mA, Cp ≤ 0.02uF, Lp ≤ 1mH

Weight: 1.8kg

Flame - proof Type

External Dimensions: 130mm * 136mm

Analog Output: 4 - 20mA

Digital Output: RS458 interface with Modbus protocol.

Explosion - proof Marking: Exd IIC T6

Weight: 1.8kg
