Name: SO₂ Measurement Made Easy with KTG162 Multi-component Gas Analyzer
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KTG162
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

SO₂ Measurement Made Easy with KTG162 Multi-component Gas Analyzer

KTG162 Multi-component Gas Analyzer

SO₂ Measurement Multi-component Gas Analyzer

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KTG162

Request A Quote

Product Details

Zero-point Drift:

±1%FS/7d

Span Drift:

±1%FS/7d

Linear Error:

±1%FS

Measured Components:

CO, CO₂, CH₄ (It Is Assumed You Mean CH₄ Here Instead Of CM. If It's Not, Please Correct.), NH₃, SO₂, NO, Etc.

Measurement Range:

(0 - 100)% (Different Specifications Can Be Selected Within The Measurement Range)

Highlight:

KTG162 Multi-component Gas Analyzer

SO₂ Measurement Multi-component Gas Analyzer

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

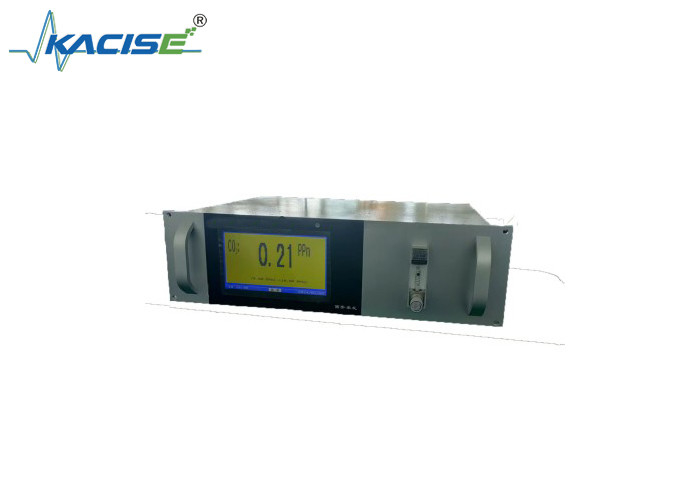

KTG162 Multi-component Gas Analyzer

Basic Principle

The KTG162 infrared gas analyzer belongs to the non-dispersive infrared gas analyzer, which measures based on the principle of selective absorption of infrared light by certain gases. It adopts a single light source, a thin-film microphonic detector in a series absorption chamber, advanced all-digital signal processing technology, and a brand-new liquid crystal display interface.

Technical Parameters of Explosion-proof Products

Zero-point drift: ±1%FS/7d

Span drift: ±1%FS/7d

Linear error: ±1%FS

Measured components: CO, CO₂, CH₄ (It is assumed you mean CH₄ here instead of CM. If it's not, please correct.), NH₃, SO₂, NO, etc.

Measurement range: (0 - 100)% (Different specifications can be selected within the measurement range)

Instrument Features

High-power and high-stability infrared light source ensures high sensitivity and stability.
The measurement gas chamber is gold-plated, which has strong corrosion resistance.
Large-screen LCD display, full Chinese menu operation, with operation prompt function, making the operation simple and efficient.
Automatic switching between dual ranges, and the intermediate range can be set.
All-digital processing makes it more accurate, stable and reliable.
It has digital communication functions such as standard RS232 and Modbus-RTU.
It has soft start and watchdog functions to ensure the reliable operation of the instrument for a long time.
The output is synchronous and isolated (0/2/4 - 20) mA, and the output load ≤ 400Ω.
It has completely isolated status output signals such as calibration, fault, alarm, and range conversion.
Standard 19-inch chassis, which is convenient for system integration.
The explosion-proof product uses a special flame-proof explosion-proof housing and can be used in explosive environments of Zone 1 and Zone 2.
