Product Description

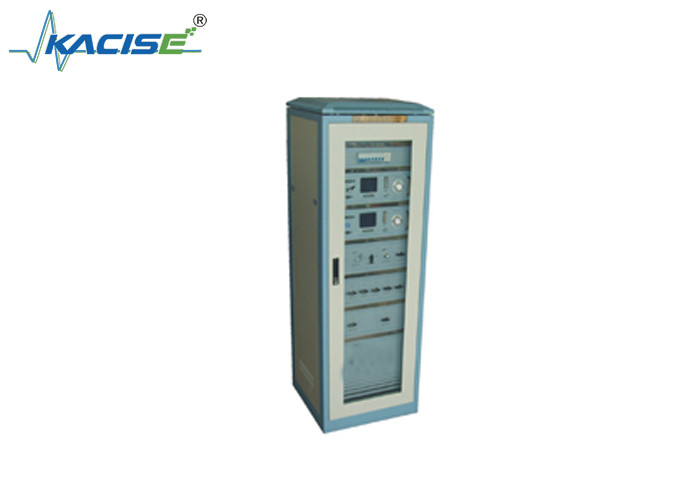

KTG181 Cement Kiln Process Analysis Complete System

Introduction

The high-temperature sampling probe used in the KTG181 cement kiln process analysis complete system is a new practical dry-process high-temperature sampling probe developed by our company (which can replace the dry-process high-temperature probe of Siemens, Germany). It has been successfully applied to many cement production industries for several times and has received a great deal of praise from users. Streamlined Cement Kiln Process Analysis with KTG181 Complete System 0

Technical Configuration Plan for the Complete Set System of Cement Kiln Process Analysis

Serial Number	Complete Set System Name		Detection Point	Purpose	Gas - sample Conditions	Measured Components	Selected Measuring Range	Remarks
1	(KTG181- 01 Type) Kiln - end Process Analysis Complete Set System		Kiln end	Optimization control	Temperature: 1100 - 1300℃, Dust: 200g/m³	CO,O₂,NO	0 - 2%,0 - 10%,0 - 2000ppm	Process selection 2 parameters: Detect NO.
1			Kiln end	Optimization control	Temperature: 1100 - 1300℃, Dust: 200g/m³	CO,O₂,NO	0 - 2%,0 - 10%,0 - 2000ppm	Process selection 2 parameters: Detect NO.
2	(KTG181- 02 Type) Calciner Process Analysis Complete Set System		Outlet of C₅ (the fifth-stage cyclone) at the inlet of the calciner	Optimization control	Temperature < 900℃, Dust < 80g/m³	CO,O₂	0 - 2%,0 - 10%
2				Optimization control	Temperature < 900℃, Dust < 80g/m³	CO,O₂	0 - 2%,0 - 10%
3	(KTG181- 03 Type) Preheater Process Analysis Complete Set System		Outlet of C₁ (first - stage cyclone) of the preheater or inlet of the high - temperature fan	Optimization control	Temperature < 450℃, Dust < 80g/m³	CO,O₂	0 - 2%,0 - 10%	Either the calciner system or the preheater system can be optionally selected.
4	(KTG181-04 Type) Electrostatic Precipitator Process Analysis Complete Set System	Kiln - end Electrostatic Precipitator Complete Set System	Inlet of the kiln - end electrostatic precipitator	Safety monitoring	Temperature < 160℃, Dust < 80g/m³	CO	0 - 2%	The probe adopts an uninterrupted and fast return circuit design to ensure the safe operation of the electrostatic precipitator.
		Coal Mill Electrostatic Precipitator Complete Set System	Outlet of the coal mill electrostatic precipitator	Safety monitoring	Temperature < 80℃, Dust < 40g/m³	CO	0 - 2000ppm
		Kiln - end Bag Filter Outlet Complete Set System	Outlet of the kiln - end bag filter	Safety monitoring	Temperature < 80℃, Dust < 100mg/m³ (Outlet)	CO	0 - 2%
		Coal Mill Bag Filter Complete Set System	Outlet / inlet of the coal mill bag filter	Safety monitoring	Temperature < 80℃, Dust < 100mg/m³ (Outlet), Dust < 600g/m³ (Inlet)	CO	Deviation value: 0.5%, Absolute value: 2%	1.When using a single - probe scheme, only measure at the outlet. 2.Using complete set systems at the outlet and inlet respectively is more conducive to ensuring safety.
		Wet - process Cement Electrostatic Precipitator Complete Set System	Inlet of the wet - process cement electrostatic precipitator	Safety monitoring	Temperature < 200℃, Dew point < 70℃, Dust < 60g/m³	CO	0 - 2%	When sampling is carried out in the settling chamber in advance, optimization control can be implemented.
5	(KTG181-05 Type) Coal Powder Bunker Process Analysis Complete Set System		Coal powder bunker	Safety monitoring	Temperature < 45℃, Dust < 80g/m³ (during dust raising)	CO	0 - 0.5%
