Name: KAN100 Point-type Combustible Gas Detector for Industrial and Commercial Applications
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN100
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KAN100 Point-type Combustible Gas Detector for Industrial and Commercial Applications

Industrial Point-type Combustible Gas Detector

KAN100 Point-type Combustible Gas Detector

Commercial Point-type Combustible Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN100

Request A Quote

Product Details

Detection Principle And Gas:

Catalytic Combustion Type: Methane, Propane, Isobutane, Hydrogen

Detection Range And Sampling Method:

Diffusion Type 3 - 100% LEL

Electrical Interface:

G1/2" Internal Thread

Explosion - Proof Mark And Protection Level:

Ex Db IIC T6 Gb IP66

Output Capacity:

1 Set Of Passive Switch Output 220VAC/24VDC, 2A

Communication Method:

ABUS Four - Wire Bus

Highlight:

Industrial Point-type Combustible Gas Detector

KAN100 Point-type Combustible Gas Detector

Commercial Point-type Combustible Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

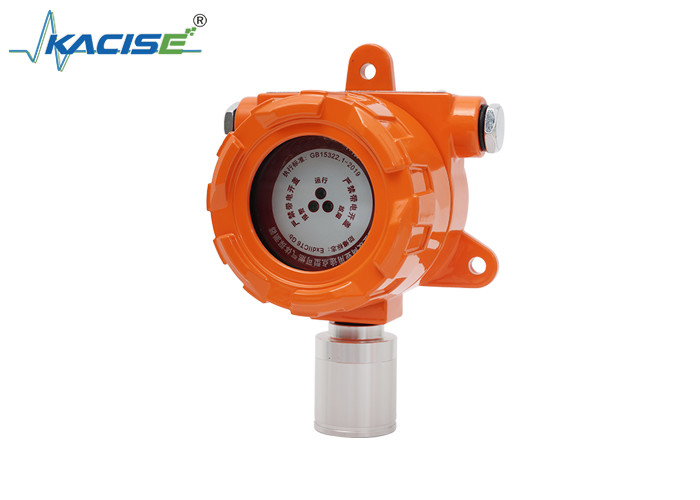

KAN100 Point-type Combustible Gas Detector for Industrial and Commercial Applications

Product Introduction

The housing is made of cast aluminum alloy, which has the advantages of low density, high strength, good corrosion resistance and excellent casting processability. Embedded technology and highly sensitive anti-poisoning gas sensors are adopted to maintain a constant alarm sensitivity. Submergence protection: intelligent over-range protection circuit. It has the function of adapting to both two-wire and four-wire bus systems. In the four-wire working mode, it is connected to the gas alarm controller in a conventional way. In the two-wire mode, it is connected to the bus output terminals of the gas alarm controller.

KAN100 Point-type Combustible Gas Detector for Industrial and Commercial Applications 0

Product Description

Detection Principle and Gas	Detection Range and Sampling Method	Operating Voltage and Power Consumption	Communication Distance
Catalytic combustion type: Methane, Propane, Isobutane, Hydrogen	Diffusion type 3 - 100% LEL	DC24V ± 6V Normal power consumption ≤ 1.5W (DC24V) Alarm power consumption ≤ 3W (DC24V)	Two - wire bus ≤ 500m (RVSP2.5mm²) Four - wire bus ≤ 1000m (RVSP1.5mm²)
Electrical Interface	Explosion - proof Mark and Protection Level	Output Capacity	Communication Method
G1/2" internal thread	Ex db IIC T6 Gb IP66	1 set of passive switch output 220VAC/24VDC, 2A 1 set of audible and visual alarm output	ABUS four - wire bus TBUS two - wire bus (communication adaptive)
Alarm Value	Operating Temperature and Humidity	Display Method	Specification
25% LEL - 50% LEL (factory - set value)	-40°C - +70°C ≤ 93% RH	Three - color (red, green, yellow) lights for working status display	Cast aluminum ≤ 1.2Kg 195×140×94
