Name: KAN103 Explosion-proof Combustible Gas Detector with Multi-sensor Compatibility and RS485 LoRa Communication
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN103
Price: 72.00 USD
Availability: InStock

Home > Products > Gas Detector Sensor >

KAN103 Explosion-proof Combustible Gas Detector with Multi-sensor Compatibility and RS485 LoRa Communication

Industrial Point-type Combustible Gas Detector

KAN103 Point-type Combustible Gas Detector

Commercial Point-type Combustible Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN103

Request A Quote

Product Details

Operating Voltage And Power Consumption:

DC24V ± 6V, ≤ 1.5W (DC24V)

Detection Range:

Diffusion Type

Communication Distance:

≤ 1000m (RVSP1.5mm²)

Electrical Interface:

G3/4" Internal Thread

Explosion - Proof Mark And Protection Level:

Ex Db IIC T6 Gb : Ex Db IIIC T80°C Db IP66

Operating Temperature And Humidity:

-40°C - +70°C, ≤ 93%RH

Highlight:

Industrial Point-type Combustible Gas Detector

KAN103 Point-type Combustible Gas Detector

Commercial Point-type Combustible Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Highly Sensitive Electrochemical Three-Electrode CO Detection Module with 0-1000PPM Range and 80±20nA/PPM Sensitivity

Get Best Price

KGD PM 203 Laser Particle Counting Sensor with 0.3 - 10μm Detection Range and Six-Channel Particle Output Compliant with JJF 1190 - 2008

Get Best Price

KGD-PM-201 Laser Particle Counting Sensor with 1s Data Refresh Frequency 1000000 pcs/28.3L Maximum Allowable Concentration and 0.3μm Detection Size

Get Best Price

Single-channel Infrared CO₂ Sensor KGD-CM-103 with 400-5000ppm Detection Range ±(50ppm + 8%) Accuracy and 30s Power-on Stabilization

Get Best Price

Contact Now

Product Description

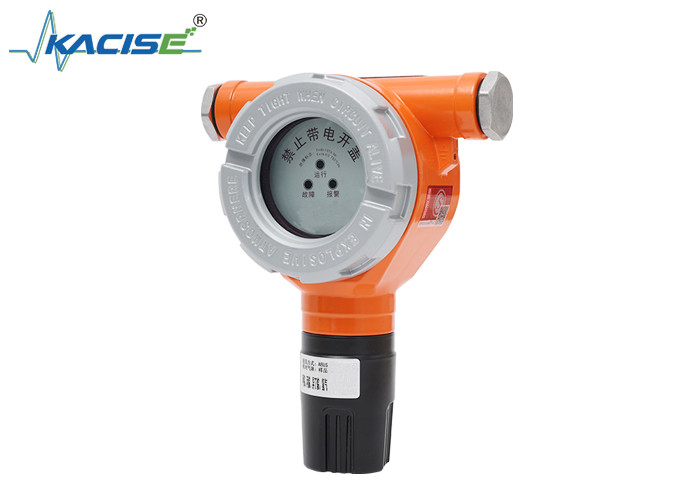

KAN103 Point-type Combustible Gas Detector for Industrial and Commercial Use

Product Introduction

The detector is compatible with various types of gas sensors, including catalytic, infrared, semiconductor, and electrochemical sensors. The housing is designed with a thickened explosion-proof aluminum alloy, ensuring long-term and stable operation in all kinds of industrial explosion-proof environments.

It is an all-round detector that allows for switching between 2/3/4-wire systems, RS485, and LoRa communication by replacing plug-and-play modules. The detector comes with a switch output (passive relay output). You can adjust the output setting to follow a specific mode through parameter configuration. Additionally, it is equipped with a drive output for an audible and visual alarm (24V DC).

Product Description

Operating Voltage and Power Consumption	Detection Range	Detection Principle	Communication Distance
DC24V ± 6V, ≤ 1.5W (DC24V)	Diffusion type	Catalytic combustion, Electrochemical, Infrared, PID	≤ 1000m (RVSP1.5mm²)
Electrical Interface	Explosion - proof Mark and Protection Level	Output Capacity	Communication and Operation Modes
G3/4" internal thread	Ex db IIC T6 Gb : Ex db IIIC T80°C Db IP66	1 set of passive switch output: 220VAC/24VDC, 2A 1 set of active audible and visual alarm output	Infrared remote control within ≤ 8 meters 4 - 20mA three - wire communication, ABUS four - wire system TBUS two - wire system, RS485, LoRa communication
Alarm Value	Operating Temperature and Humidity	Display Method	Pressure Range and Response Time
Specific parameters of different sensors are shown on the nameplate	-40°C - +70°C, ≤ 93%RH	Three - light status display	86KPa - 106KPa < 30S (T90)
