KAN101 Point - Type Combustible Gas Detector For Industrial And Commercial Applications

Point type Combustible Gas Detector

Industrial Combustible Gas Detector

Commercial Combustible Gas Detector

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN101

Request A Quote

Product Details

Detection Principle And Gas:

Catalytic Combustion Type: Methane, Propane, Isobutane, Hydrogen

Detection Range And Sampling Method:

Diffusion Type: 3 - 100% LEL

Communication Distance:

≤ 1000m (RVSP1.5mm²)

Communication Method:

ABUS Four - Wire Bus

Specification:

Cast Aluminum ≤ 1.2Kg, 206×165×80

Explosion - Proof Mark And Protection Level:

Ex Db II CT6 Gb IP66

Highlight:

Point type Combustible Gas Detector

Industrial Combustible Gas Detector

Commercial Combustible Gas Detector

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

KAN101 Point - type Combustible Gas Detector for Industrial and Commercial Applications

Product Introduction

The power supply and bus are designed in a non - polar way, which is convenient for wiring and highly reliable. This product is designed with embedded technology and has the function of detecting linear attenuation compensation. It comes with an output interface for an audible and visual alarm and a passive output interface. The housing is cast with an alloy process, featuring low density, high strength, and strong corrosion resistance.

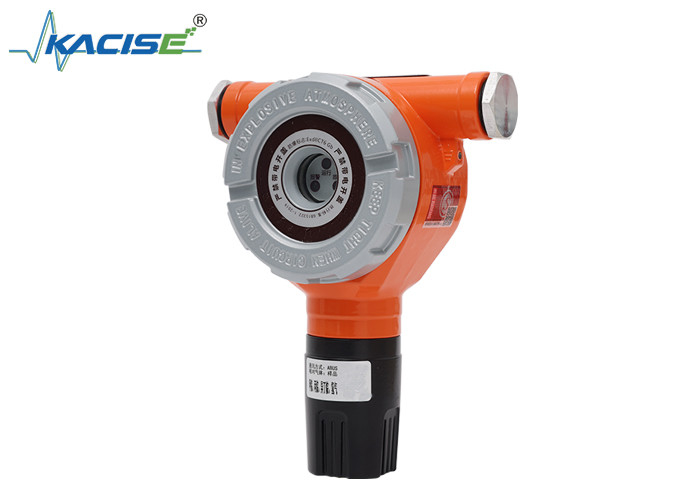

KAN101 Point - Type Combustible Gas Detector For Industrial And Commercial Applications 0

Product Description

Detection Principle and Gas	Detection Range and Sampling Method	Operating Voltage and Power Consumption	Communication Distance
Catalytic combustion type: Methane, Propane, Isobutane, Hydrogen	Diffusion type: 3 - 100% LEL	DC24V ± 6V Normal power consumption ≤ 1.5W (DC24V) Alarm power consumption ≤ 3W (DC24V)	≤ 1000m (RVSP1.5mm²)
Electrical Interface	Explosion - proof Mark and Protection Level	Output Capacity	Communication Method
G3/4" internal thread	Ex db II CT6 Gb IP66	1 set of passive switch output: 220VAC/24VDC, 2A 1 set of active audible and visual alarm output	ABUS four - wire bus
Alarm Value	Operating Temperature and Humidity	Display Method	Specification
25% LEL - 50% LEL (factory - set value)	-40°C - +70°C, ≤ 93% RH	Three - color (red, green, yellow) lights for working status display	Cast aluminum ≤ 1.2Kg, 206×165×80
