Name: KAN120 Combustible Gas Alarm Controller
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN120
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

KAN120 Combustible Gas Alarm Controller

Combustible Gas Alarm Controller

KAN120 Gas Alarm Controller

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KAN120

Request A Quote

Product Details

Signal Transmission:

ABUS Four - Wire Bus, TBUS Two - Wire Bus

Operating Voltage:

AC220V ± 15%/50HZ

Communication Distance:

≤ 1000m (RVSP1.5mm²)

Detected Gases And Bus Capacity:

Methane, Etc. ≤ 2

Power Consumption:

≤ 10W (excluding Detector)

Under - Voltage Alarm Point And Indication Error:

165V ± 10V, ± 5%FS

Highlight:

Combustible Gas Alarm Controller

KAN120 Gas Alarm Controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

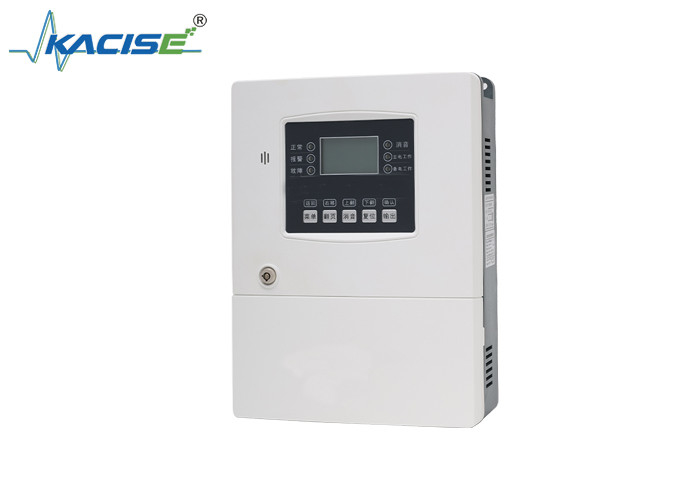

KAN120 Combustible Gas Alarm Controller

Product Introduction

The controller is small - sized, allowing for more flexible installation. It adopts two - wire wiring, which is simple and easy to operate. It can be equipped with an NB module to connect the controller to the Internet of Things platform for cloud - based monitoring and intelligent early - warning. The interface uses a 2.4 - inch LCD with a resolution of 128×64 pixels, displaying status data in both Chinese and English in real - time. The controller can seamlessly switch between the main and backup power supplies, and has independent indicator lights for the main and backup power supplies to show the power working status. The controller power supply and the backup power supply share one switch, eliminating the need to manually start the backup power supply. (with built - in backup power supply)

KAN120 Combustible Gas Alarm Controller 0

Product Description

Signal Transmission	Operating Voltage	Alarm Threshold and Alarm Method	Communication Distance
ABUS four - wire bus, TBUS two - wire bus	AC220V ± 15%/50HZ	High - limit alarm Low - limit alarm Audible and visual alarm	≤ 1000m (RVSP1.5mm²)
Detected Gases and Bus Capacity	Power Consumption	Control Output	Display Method
Methane, etc. ≤ 2	≤ 10W (excluding detector)	Two - way programmable linkage output (contact capacity 5A/DC24V or 5A/AC220V), Pulse output: 500mS break, Continuous output: Switch - quantity output	2.4 - inch 128×64 dot - matrix LCD
Under - voltage Alarm Point and Indication Error	Working Environment	Detection Unit	Expansion Interface
165V ± 10V, ± 5%FS	Temperature: 0°C - 40°C, Humidity: ≤ 93%RH	%LEL, PPM, %VOL mg/m³, °C, %RH	Optional 485 module/NB module
