Name: Stable Integrated Air Quality Module KGD - AM - 104
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-AM-104
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Stable Integrated Air Quality Module KGD - AM - 104

Integrated Air Quality Module

KGD AM 104 Air Quality Module

Stable Air Quality Module

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-104

Request A Quote

Product Details

Data Refresh Frequency:

Power - On Stabilization Time:

≤180s（VOC）

Operating Conditions:

-10~60℃, 5~95%RH

Storage Conditions:

-30℃ To 70℃, 0 - 95%RH (Non - Condensing)

Operating Voltage:

DC 5V±0.2V, With A Ripple Less Than 10mV

Communication Interface:

① UART (3.3V/5V)

Highlight:

Integrated Air Quality Module

KGD AM 104 Air Quality Module

Stable Air Quality Module

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

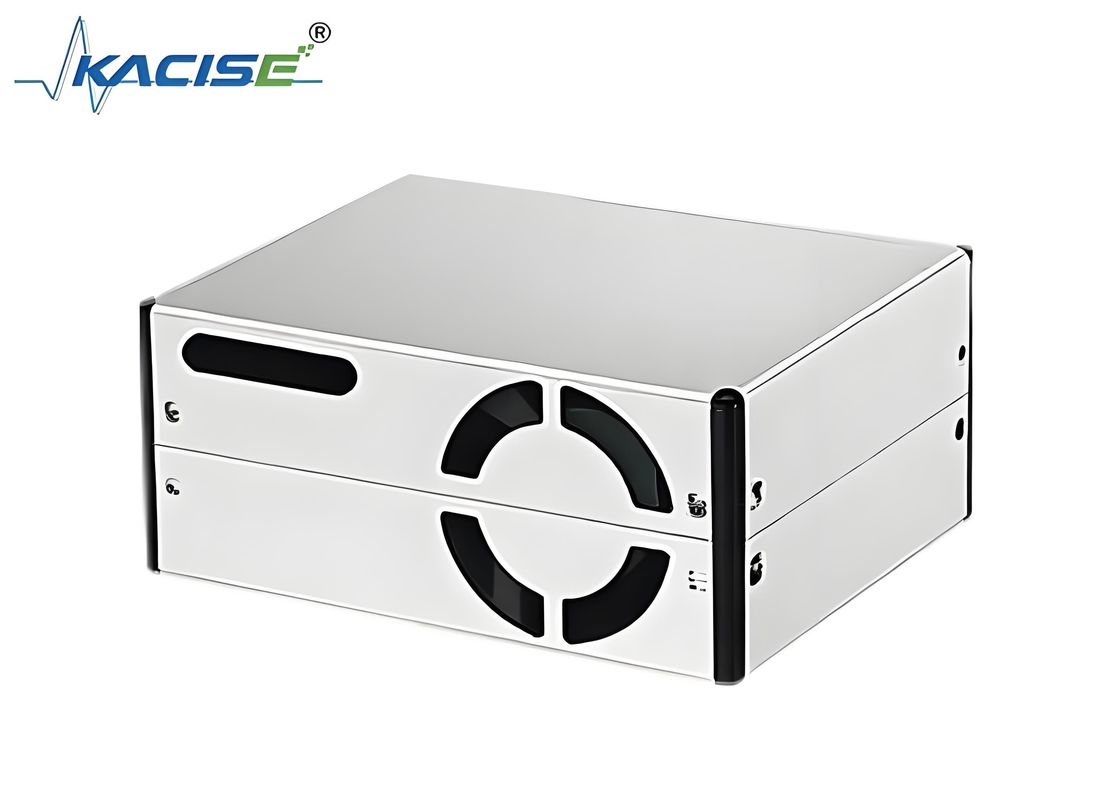

Stable Integrated Air Quality Module KGD - AM - 104

Product Introduction

The laser dust sensor is equipped with a built - in MOX chip, enabling the simultaneous output of multiple indicators such as PM1.0, PM2.5, PM10, VOC, NOₓ, CO, and HC. This allows customers to upgrade the performance of their products without altering the structural design.

Stable Integrated Air Quality Module KGD - AM - 104 0

Product Features

Capable of simultaneously outputting multiple indicators including PM1.0, PM2.5, PM10, VOC, NOₓ, CO, and HC.
Built into the laser dust sensor, it is fully compatible with customers' existing product structures, requiring no modifications.
Features fast response, low power consumption, and excellent long - term stability.
Utilizes correction and compensation technology to ensure accuracy across the entire temperature range.

Technical Parameters

Detection range	Dust: 0 - 5000μg/m³ VOC: 0 - 10ppm NO₂: 0 - 1000ppb (Optional)
Detection accuracy	PM1.0/PM2.5: 0~100μg/m³, ±10μg/m³ 101~500μg/m³, ±10% reading PM10: 0~100μg/m³, ±25μg/m³ 101~500μg/m³, ±25% reading (GRIMM, 0~40℃, 50 ±10%RH)
Data refresh frequency	1s
Power - on stabilization time	≤180s(VOC)
Operating conditions	-10~60℃, 5~95%RH
Storage conditions	-30℃ to 70℃, 0 - 95%RH (Non - condensing)
Operating voltage	DC 5V±0.2V, with a ripple less than 10mV
Communication interface	① UART (3.3V/5V) ② IIC(5V)
Product dimensions	W50H38D21 mm
