Name: Integrated Air Quality Sensor KGD-AM-1 for Fresh Air Systems
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-AM-101
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Integrated Air Quality Sensor KGD-AM-1 for Fresh Air Systems

Integrated Air Quality Sensor

KGD-AM-1 Air Quality Sensor

Fresh Air Systems Air Quality Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-AM-101

Request A Quote

Integrated Air Quality Sensor KGD-AM-1 for Fresh Air Systems

Product Details

Operating Conditions:

-10 - 50°C, 5 - 95%RH

Storage Conditions:

-20 - 60°C, 0 - 95%RH (Non - Condensing)

Operating Voltage:

DC 5V ± 0.2V, Ripple < 100mV

Operating Current:

≤ 100mA

Stand - By Current:

≤ 200μA (When The SET Pin Is Set To Low - Level Sleep)

Communication Interface:

UART: TTL

Highlight:

Integrated Air Quality Sensor

KGD-AM-1 Air Quality Sensor

Fresh Air Systems Air Quality Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

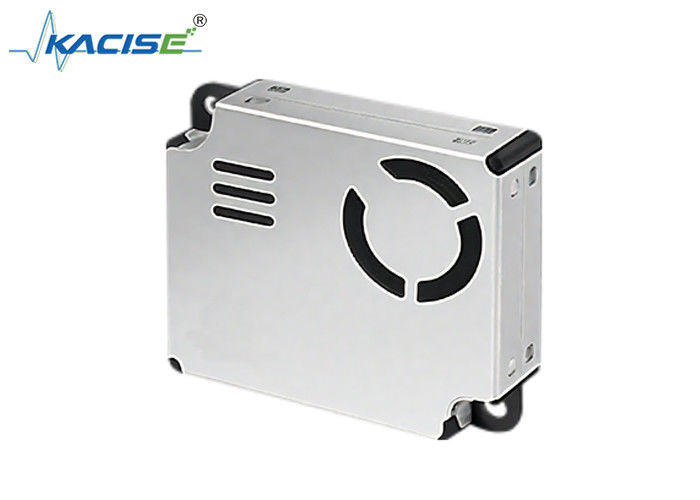

Integrated Air Quality Sensor KGD-AM-1 for Fresh Air Systems

Product Introduction

The integrated air quality sensor KGD-AM-1 is a cost-effective integrated module of multi-parameter air quality sensors. It can measure and output the concentration of VOCs, as well as the mass concentrations of PM1.0, PM2.5, and PM10 particulate matters in real time. With stable performance, compact design, complete functions, and rich interfaces, it can be widely applied to high-end air purifiers, fresh air systems (fresh air blowers), air conditioners with purification functions, air quality detectors, and the supporting facilities of consumer electronics.

Integrated Air Quality Sensor KGD-AM-1 for Fresh Air Systems 0

Product Features

The minimum resolvable particle size is 0.3μm.
Real-time output of dust and VOCs, with high precision. Digital display is the preferred option.
High sensitivity and rapid response.
Full metal shielding, providing good anti-interference ability.
Ultra-thin design.

Technical Parameters

Detection Range	Dust: 0 - 1000 μg/m³; VOC: 0 - 10ppm
Detection Accuracy	PM1.0/PM2.5: ≤ 100 μg/m³: ± 10 μg/m³ > 100 μg/m³: ± 10% of the reading PM10: ≤ 100 μg/m³: ± 20 μg/m³ > 100 μg/m³: ± 20% of the reading (Referenced to Gold Sample*, under environmental conditions of 25 ± 2°C, 50 ± 10%RH) VOC: 0 - 1ppm: ± 0.25ppm 1 - 10ppm: ± 25% of the reading
Operating Conditions	-10 - 50°C, 5 - 95%RH
Storage Conditions	-20 - 60°C, 0 - 95%RH (Non - condensing)
Operating Voltage	DC 5V ± 0.2V, ripple < 100mV
Operating Current	≤ 100mA
Stand - by Current	≤ 200μA (When the SET pin is set to low - level sleep)
Communication Interface	UART: TTL
Product Dimensions	W48H40D12 mm
