Name: Single-channel Infrared CO₂ Sensor KGD - CM - 103
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KGD-CM-103
Price: 72.00 USD
Availability: InStock

Home > products > Gas Detector Sensor >

Single-channel Infrared CO₂ Sensor KGD - CM - 103

Single-channel Infrared CO₂ Sensor

Place of Origin:

CHINA

Brand Name:

KACISE

Certification:

Model Number:

KGD-CM-103

Request A Quote

Product Details

Detection Range:

400 - 5000ppm

Detection Accuracy:

±(50ppm + 8% Of The Reading)

Power-on Stabilization Time:

30s

Data Refresh Frequency:

Operating Conditions:

-10°C To 50°C, Below 0 - 95%RH (non-condensing)

Average Operating Current:

≤45mA @（5V）

Highlight:

Single-channel Infrared CO₂ Sensor

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

KTG113-W Trace Oxygen Analyzer for On-line Analysis of Magnetic Materials 400 ± 10 ml/min Sample Gas Flow Rate

Get Best Price

The KTG112-C Oxygen Analyzer Is Used For On-line Analysis Of Oxygen Content

Get Best Price

KTG114-C Flue Oxygen Analyzer Precise and Fast Oxygen Content Detection for Optimal Furnace Operation

Get Best Price

KTG114-W Explosion Proof Oxygen Analyzer

Get Best Price

86--17719566736

Contact Now

Product Description

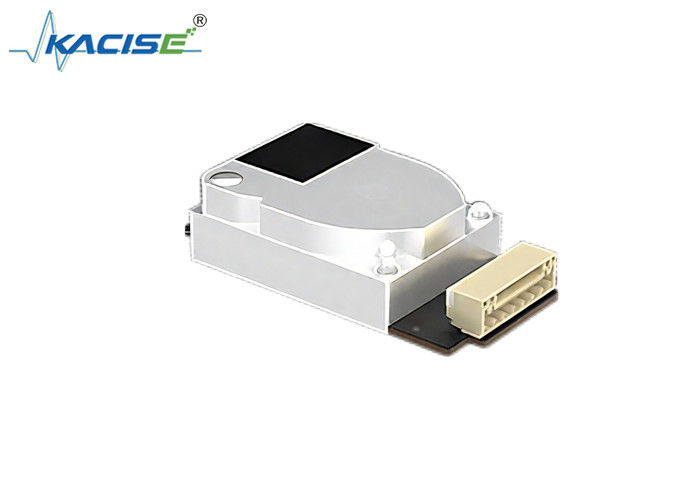

Single-channel Infrared CO₂ Sensor KGD - CM - 103

Product Introduction

The single-channel infrared CO₂ sensor KGD - CM - 103 is a CO₂ sensor based on the principle of non-dispersive infrared absorption, which can monitor and display the CO₂ concentration in real time. This sensor features high accuracy, superior performance, a compact structure, and easy installation. It is suitable for applications such as indoor CO₂ concentration detection, air quality control, and energy-saving control. Examples include fresh air systems, air conditioning control, air quality monitors, and plant cultivation.

Single-channel Infrared CO₂ Sensor KGD - CM - 103 0

Product Features

NDIR core technology.
Long service life, automatic calibration, and maintenance-free.
Matrix correction within the full range of temperature.
Compact product structure, easy to install.

Technical Parameters

Detection Range	400 - 5000ppm
Detection Accuracy	±(50ppm + 8% of the reading)
Power-on Stabilization Time	30s
Data Refresh Frequency	1s
Operating Conditions	-10°C to 50°C, below 0 - 95%RH (non-condensing)
Storage Conditions	-40°C to 70°C, below 0 - 95%RH (non-condensing)
Average Operating Current	≤45mA @(5V)
Communication Interface	① UART_TTL(3.3V) (Default) ② IIC(3.3V) (Reserved) ③ PWM(3.3V) (Reserved)
Product Dimensions	L33W19.7H11.6(mm) (H = Shell + Plastic Base)
